Spare parts > Husqvarna > RIDERS > R419TsX AWD R419TsX AWD, 967648301, 2019-01 > ELECTRICAL
Back to

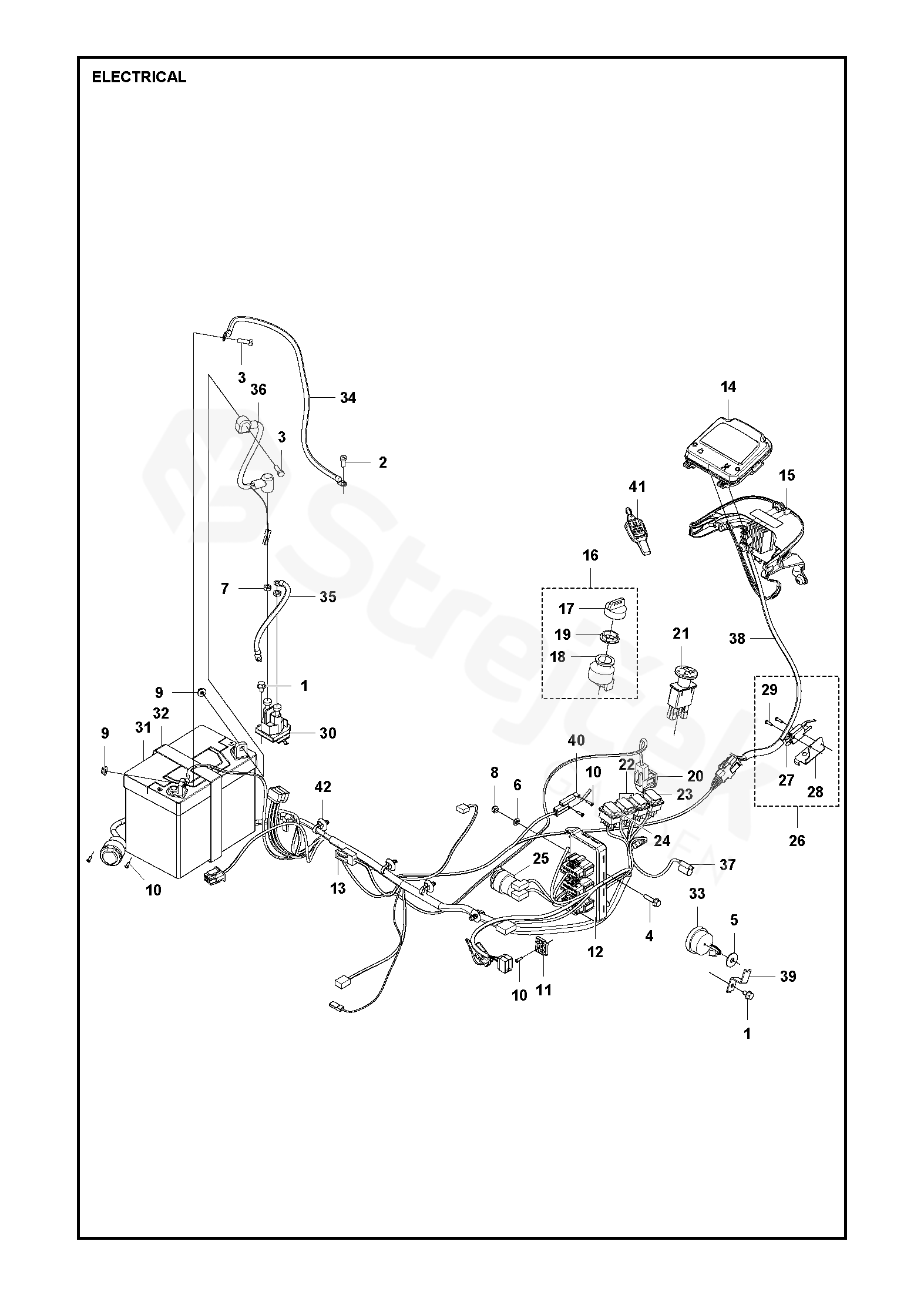

ELECTRICAL
R419TsX AWD R419TsX AWD, 967648301, 2019-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For R419TsX AWD, 967648301, 2019-01
1 SCREW EHHFT 725236461
2 SCREW EHHFT 725236861
3 SCREW EHHM 522622101
4 SCREW EHHM 725237271
5 PODLOŽKA 734116441
6 WASHER 734115301
7 MATICE 506899801
8 LOCK NUT 732211601
9 NUT 522624301
10 NÝT 544440701
11 CLIP 501007501
12 CONTROL UNIT 590568001
13 WIRING ASSY
MAIN 		590546302
14 DISPLAY 593739202
15 HEADLIGHT
LED LIGHT 		593728501
16 KEY SWITCH 535474901
17 IGNITION KEY 535476001
18 WASHER 535475001
19 NUT 535476101
20 SWITCH 532407568
21 SWITCH
PTO switch 		582107601
22 TOGGLE SWITCH
12V-switch 		590732101
23 TOGGLE SWITCH
ON/OFF/ON 		593080301
24 TOGGLE SWITCH
Light Switch 		593987101
25 POWER SOCKET
12v Socket 		535474801
26 SWITCH 544415901
27 SWITCH 574316101
28 BRACKET 544415701
29 NÝT 544440701
30 RELAY
START 		544439801
31 BATTERY 577041601
32 BELT 506836802
33 BUZZER 501182101
34 CABLE 576183801
35 CABLE 576183901
36 WIRE 586223902
37 WIRING ASSY
Temp 		593081501
38 WIRING ASSY 593181101
39 BRACKET 589411701
40 SWITCH 574316101
41 LEVER 586379401
42 PÁSEK 579317401
