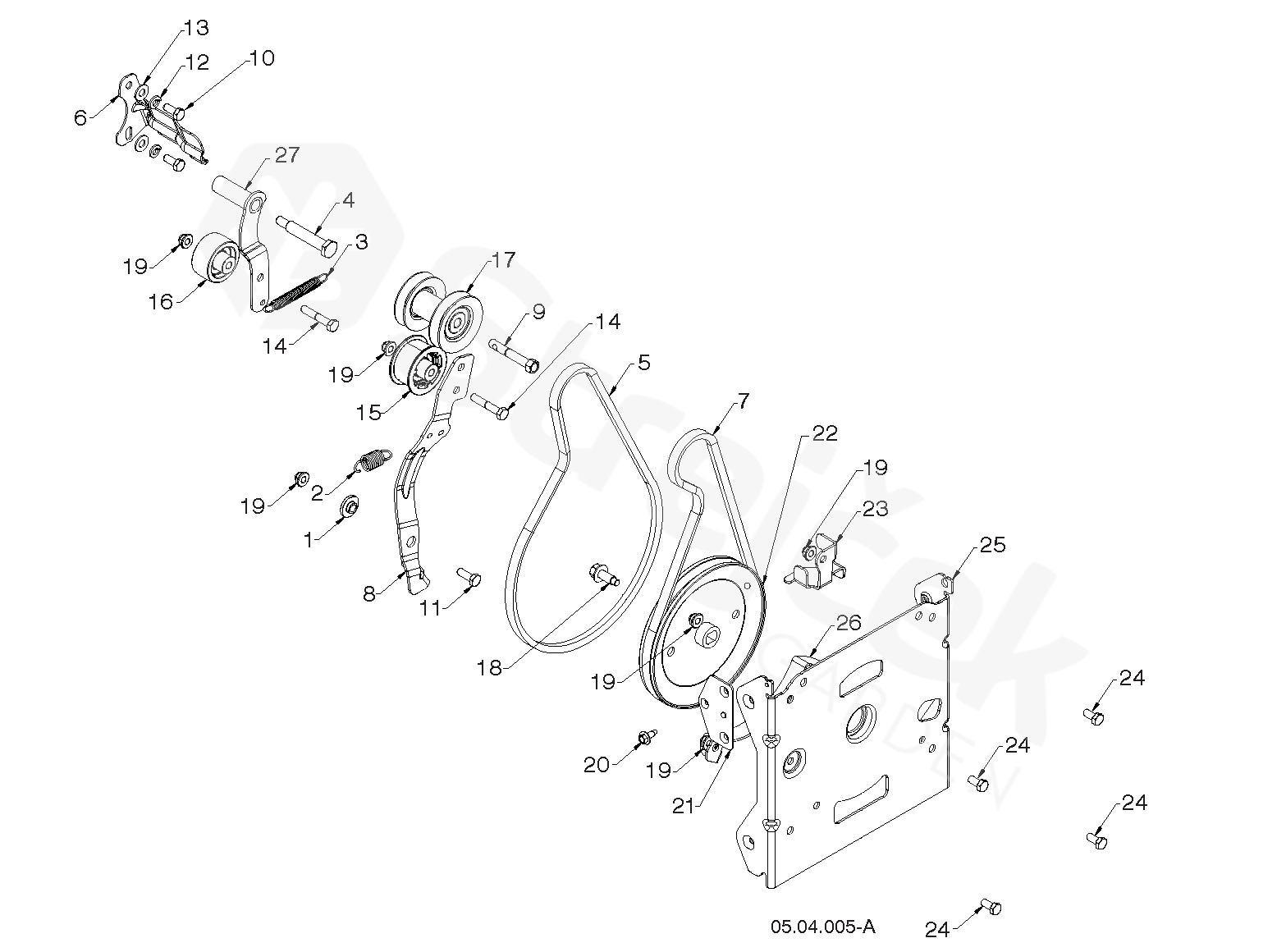

Spare parts > McCULLOCH > SNOW BLOWERS/THROWERS > ST 61E ST 61E, 96191005700, 2018-05 > "CHASSIS, ENGINE & PULLEYS"
Back to
"CHASSIS, ENGINE & PULLEYS"
ST 61E ST 61E, 96191005700, 2018-05
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ST 61E, 96191005700, 2018-05
1 BUSHING 587343701
2 PRUŽINA 587031201
3 PRUŽINA 580753001
4 BOLT 581413801
5 BELT 584216102
6 BRACKET 588492802
7 BELT 501818201
8 BRACKET 580831106
9 BOLT 582388401
10 SCREW 874610512
11 BOLT 874760514
12 PODLOŽKA 810040500
13 PODLOŽKA 819111216
14 BOLT 874760528
15 PULLEY 581141401
16 PULLEY 586880201
17 PULLEY 587893703
18 SCREW 583814901
19 MATICE 532427942
20 SCREW 585517801
21 BRACKET 590044602
22 PULLEY 590699201
23 GUIDE 587587202
24 BOLT 532163183
25 BRACKET 581592502
26 BRACKET 581632002
27 ARM 581338203
