STIGA
>
Lawn Mower
>
COLLECTOR 48 S COMBI COLLECTOR 48 S COMBI (2003)
>
Deck
Back to
COLLECTOR 48 S COMBI
COLLECTOR 48 S COMBI (2003)
Deck
COLLECTOR 48 S COMBI
COLLECTOR 48 S COMBI (2003)

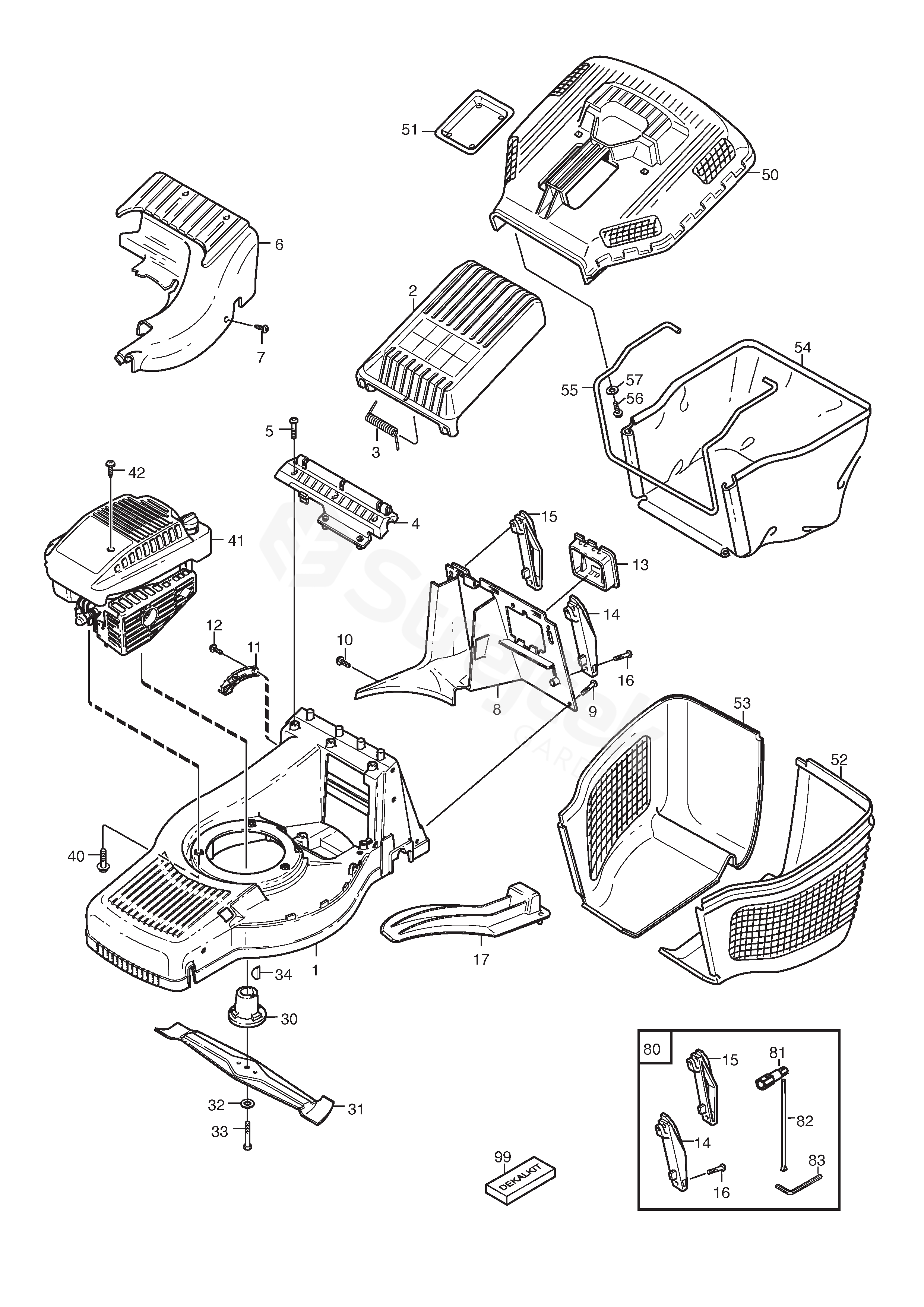

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
COLLECTOR 48 S COMBI (2003)
1
Chassis, Yellow
1111-3090-01
2
Stone Guard, Yellow
1111-3283-01
3
Spring
1111-2792-01
4
Flap Attachment
1111-2793-01
5
Screw
9947-0616-16
6
Cover (Yellow)
1111-2794-01
7
Screw
9838-9522-12
8
Rear Attachment (Combi 48-55)
1111-3335-01
9
Screw
9947-0616-16
10
Screw
9838-9522-12
11
Height Adjusting Plate
1111-2798-01
12
Screw
9838-9522-12
13
Battery Holder
1111-2927-01
14
Attachment L.H.
1111-3236-01
15
Attachment R.H.
1111-3237-01
16
Screw
9836-9520-12
17
Mulch Plug (Combi 48)
1111-3333-01
30
Blade Hub
1111-9070-01
31
Blade
1111-9090-01
32
Washer
9696-0011-01
33
Screw
9987-5251-12
34
Key
9600-0014-00
40
Screw
9955-3732-12
41
Engine Cover (Black)
12-5281-30
1111-3352-01
42
Screw
12-5281-30
9828-7942-12
50
Collector-Upper Part (Yellow)
1111-2840-01
51
Cover
1111-2764-01
52
Collector, Lower Lh
1111-2841-10
53
Collector, Lower Rh
1111-2842-10
80
Accessory Bag
Inkl. pos 14-16,81-83
1111-3569-01
81
Spark Plug Wrench
1111-2921-01
82
Rod
1111-2113-01
83
Allen Wrench-6 Mm
9900-0060-00
99
Label Kit
STIGA
1111-3588-02
