Spare parts > STIGA > Lawn Mower > TURBO 55S ROLLER TURBO 55S ROLLER (2004) > Handle, Upper Part
Back to

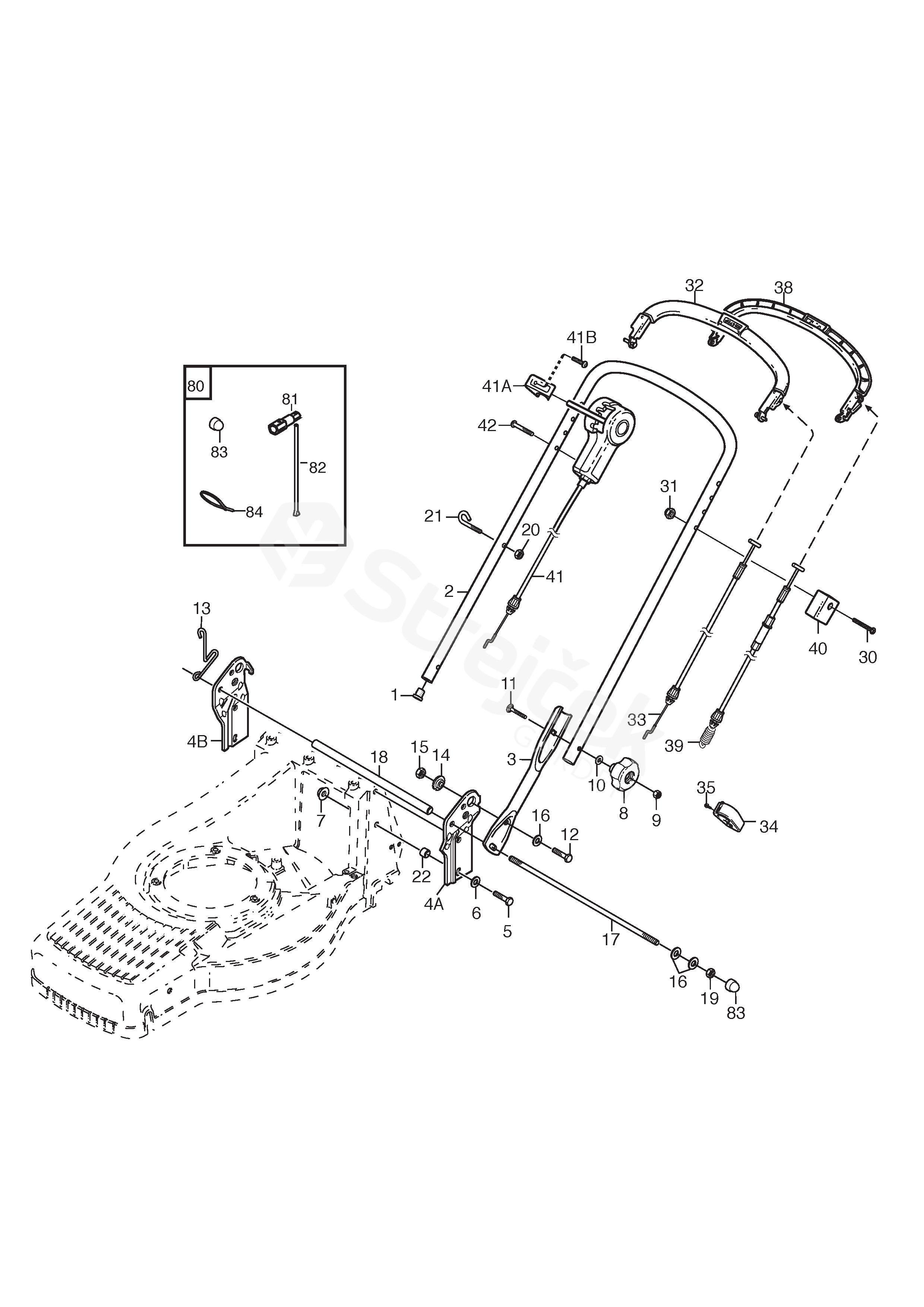

Handle, Upper Part
TURBO 55S ROLLER TURBO 55S ROLLER (2004)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TURBO 55S ROLLER (2004)
1 Plug 9403-0043-70
2 Handle Upper 1111-3538-01
3 Handle-Lower Part 1111-3537-01
5 Screw 9997-0820-16
7 Nut 9739-0831-22
8 Knob 1117-3194-01
10 Washer 9699-0028-02
11 Screw 9898-0845-12
12 Screw 9997-0825-16
13 Eye Link 1111-3578-01
14 Bushing 1111-3554-01
15 Nut 9799-0831-02
16 Washer 9699-0056-02
17 Shaft 1111-3577-01
18 Tube 1111-3576-01
20 Nut 9799-0631-02
21 Eye Link 1111-3063-01
22 Collar 1111-3583-01
30 Screw 9948-0640-16
31 Lock Nut 9747-0631-02
32 Control Handle (Eng.Brake 1111-2953-01
33 Cable, Thread Engine Brake 1111-2968-02
34 Cable Holder 1111-2018-01
35 Screw 9836-9216-12
38 Clutch Lever 1111-2954-01
39 Clutch Cable 1111-3388-01
40 Cable Holder 1111-2969-01
41 Variator Control 1111-2971-03
42 Screw 9838-9540-12
80 Accessory Bag
Pos 81 - 84 incl. 		1111-3569-02
81 Spark Plug Wrench 1111-2921-01
82 Rod 1111-2113-01
83 Ring Nut 9403-0113-00
84 Cable Holder 9579-0008-00
41A Knob 1111-2941-01
41B Screw 9838-9522-12
4A Handle Bracket-Lh 1111-3549-01
4B Handle Bracket-Rh 1111-3549-02
