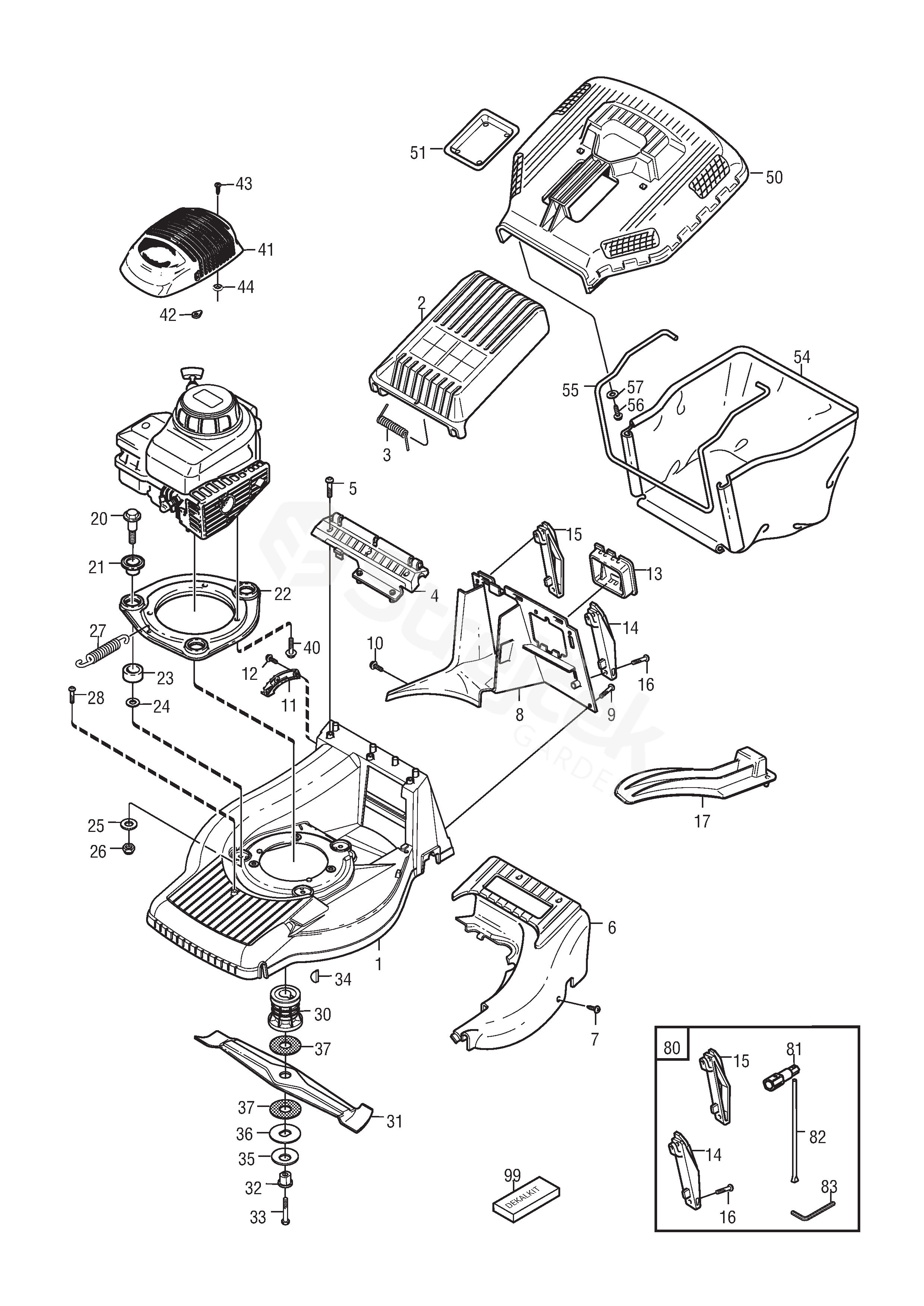

Spare parts > STIGA > Lawn Mower > TURBO PRO 55 S 4-SPEED COMBI TURBO PRO 55 S 4-SPEED COMBI (2004) > Deck
Back to
Deck
TURBO PRO 55 S 4-SPEED COMBI TURBO PRO 55 S 4-SPEED COMBI (2004)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TURBO PRO 55 S 4-SPEED COMBI (2004)
1 Chassis-Avs (Grey) 7-18 1111-3598-12
2 Stone Guard, Yellow 1111-3283-01
3 Spring 1111-2792-01
4 Flap Attachment 1111-2793-01
5 Screw 9947-0616-16
6 Cover (Yellow) 1111-3597-01
7 Screw 9838-9522-12
8 Rear Attachment (Combi 48-55) 1111-3335-01
9 Screw 9947-0616-16
10 Screw 9838-9522-12
11 Height Adjusting Plate 1111-2798-01
12 Screw 9838-9522-12
13 Battery Holder 1111-2927-01
14 Attachment L.H. 1111-3236-01
15 Attachment R.H. 1111-3237-01
16 Screw 9836-9520-12
17 Mulch Plug (Combi 55) 1111-3333-02
20 Shoulder Bolt 1111-2454-01
21 Isolation Washer 1111-2453-01
22 Engine Plate (Yellow) 1111-3594-01
23 Rubber Damper 1111-2452-01
24 Washer
8.4 x 22 x 1.5 mm 		9699-0062-02
25 Washer
8.4 x 24 x 2.0 mm 		9699-0056-02
26 Nut 9739-0831-22
27 Spring 1111-3641-01
28 Screw 9943-0610-16
30 Blade Holder 1111-9127-01
31 Blade 1111-9130-01
32 Bushing 1111-3483-01
33 Screw 9987-5264-12
34 Key 9600-0014-00
35 Disc Washer 1111-3482-01
36 Washer 1111-3481-01
37 Friction Disc 1111-3512-01
40 Screw 9955-3732-12
41 Engine Cover-Black (Honda) 1111-3601-01
42 Rubber ring 1111-3624-01
43 Screw 1111-3625-01
44 Washer 1111-3629-01
50 Collector-Upper Part (Yellow) 1111-2840-01
51 Cover 1111-2764-01
54 Collecting Bag (Stiga) 1111-2844-04
55 Wire Clamp 1111-2843-01
56 Screw 9838-9522-12
57 Flat washer 9699-0100-02
80 Accessory Bag
Inkl. pos 14-16,81-83 		1111-3569-01
81 Spark Plug Wrench 1111-2921-01
82 Rod 1111-2113-01
83 Allen Wrench-6 Mm 9900-0060-00
99 Label Kit
STIGA 		1111-3588-03
