STIGA
>
Lawn Mower
>
TURBO PRO 55 S COMBI TURBO PRO 55 S COMBI (2004)
>
Deck
Back to
TURBO PRO 55 S COMBI
TURBO PRO 55 S COMBI (2004)
Deck
TURBO PRO 55 S COMBI
TURBO PRO 55 S COMBI (2004)

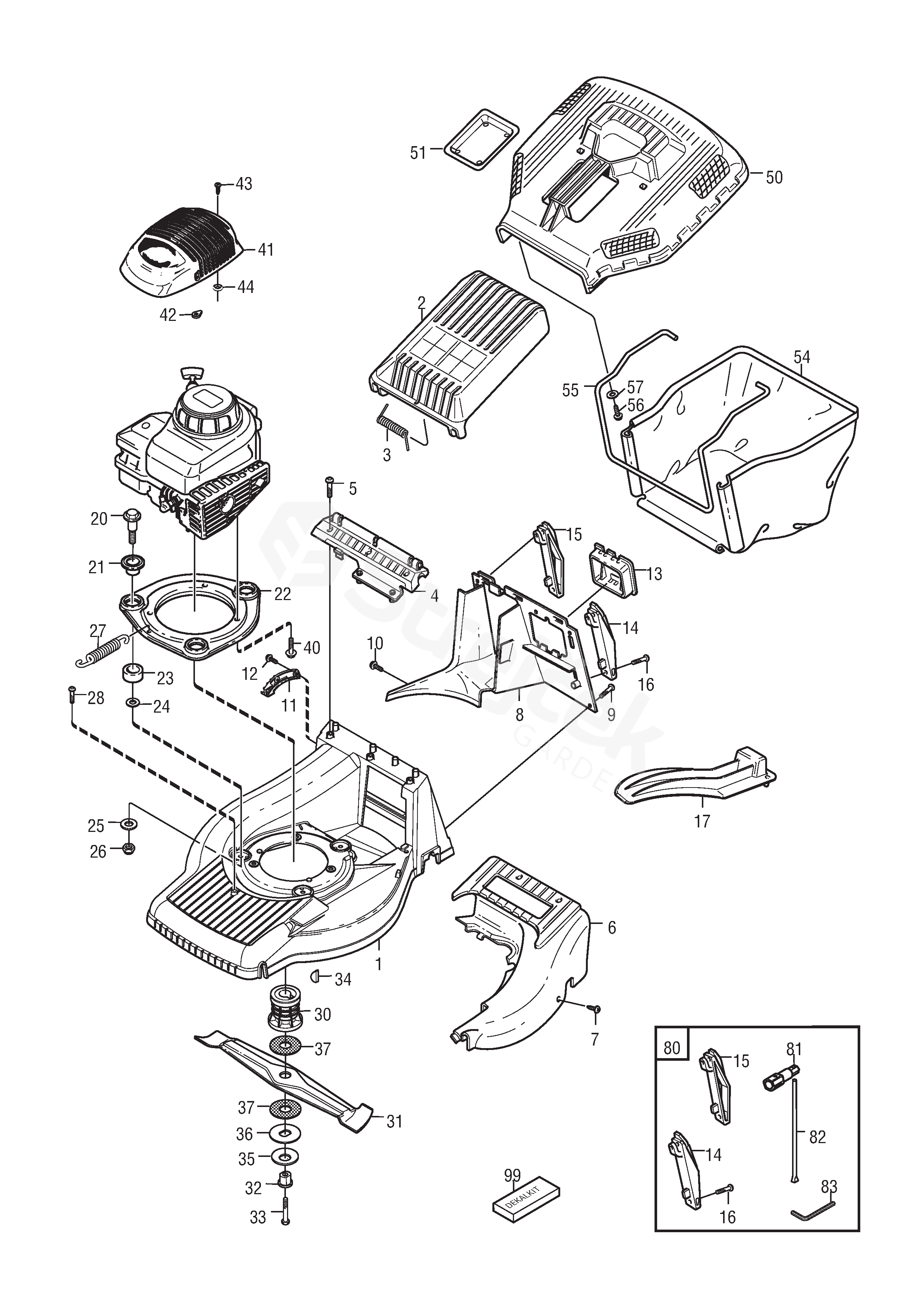

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
TURBO PRO 55 S COMBI (2004)
1
Chassis-Avs (Grey) 7-18
1111-3598-12
2
Stone Guard, Yellow
1111-3283-01
3
Spring
1111-2792-01
4
Flap Attachment
1111-2793-01
5
Screw
9947-0616-16
6
Cover (Yellow)
1111-3597-01
8
Rear Attachment (Combi 48-55)
1111-3335-01
10
Screw
9838-9522-12
11
Height Adjusting Plate
1111-2798-01
13
Battery Holder
1111-2927-01
14
Attachment L.H.
1111-3236-01
15
Attachment R.H.
1111-3237-01
16
Screw
9836-9520-12
17
Mulch Plug (Combi 55)
1111-3333-02
20
Shoulder Bolt
1111-2454-01
21
Isolation Washer
1111-2453-01
22
Engine Plate (Yellow)
1111-3594-01
23
Rubber Damper
1111-2452-01
24
Washer
8.4 x 22 x 1.5 mm
9699-0062-02
25
Washer
8.4 x 24 x 2.0 mm
9699-0056-02
26
Nut
9739-0831-22
27
Spring
1111-3641-01
28
Screw
9943-0610-16
30
Blade Holder
1111-9127-01
31
Blade
1111-9130-01
32
Bushing
1111-3483-01
33
Screw
9987-5264-12
34
Key
9600-0014-00
35
Disc Washer
1111-3482-01
36
Washer
1111-3481-01
37
Friction Disc
1111-3512-01
40
Screw
9955-3732-12
50
Collector-Upper Part (Yellow)
1111-2840-01
51
Cover
1111-2764-01
54
Collecting Bag (Stiga)
1111-2844-04
55
Wire Clamp
1111-2843-01
57
Flat washer
9699-0100-02
80
Accessory Bag
Inkl. pos 14-16,81-83
1111-3569-01
81
Spark Plug Wrench
1111-2921-01
82
Rod
1111-2113-01
83
Allen Wrench-6 Mm
9900-0060-00
99
Label Kit
STIGA
1111-3588-03
