Spare parts > Husqvarna > Hedge Trimmers > 325 HS75 X-SERIES 325 HS75 X-SERIES, 2008-05 > GEAR HOUSING
Back to

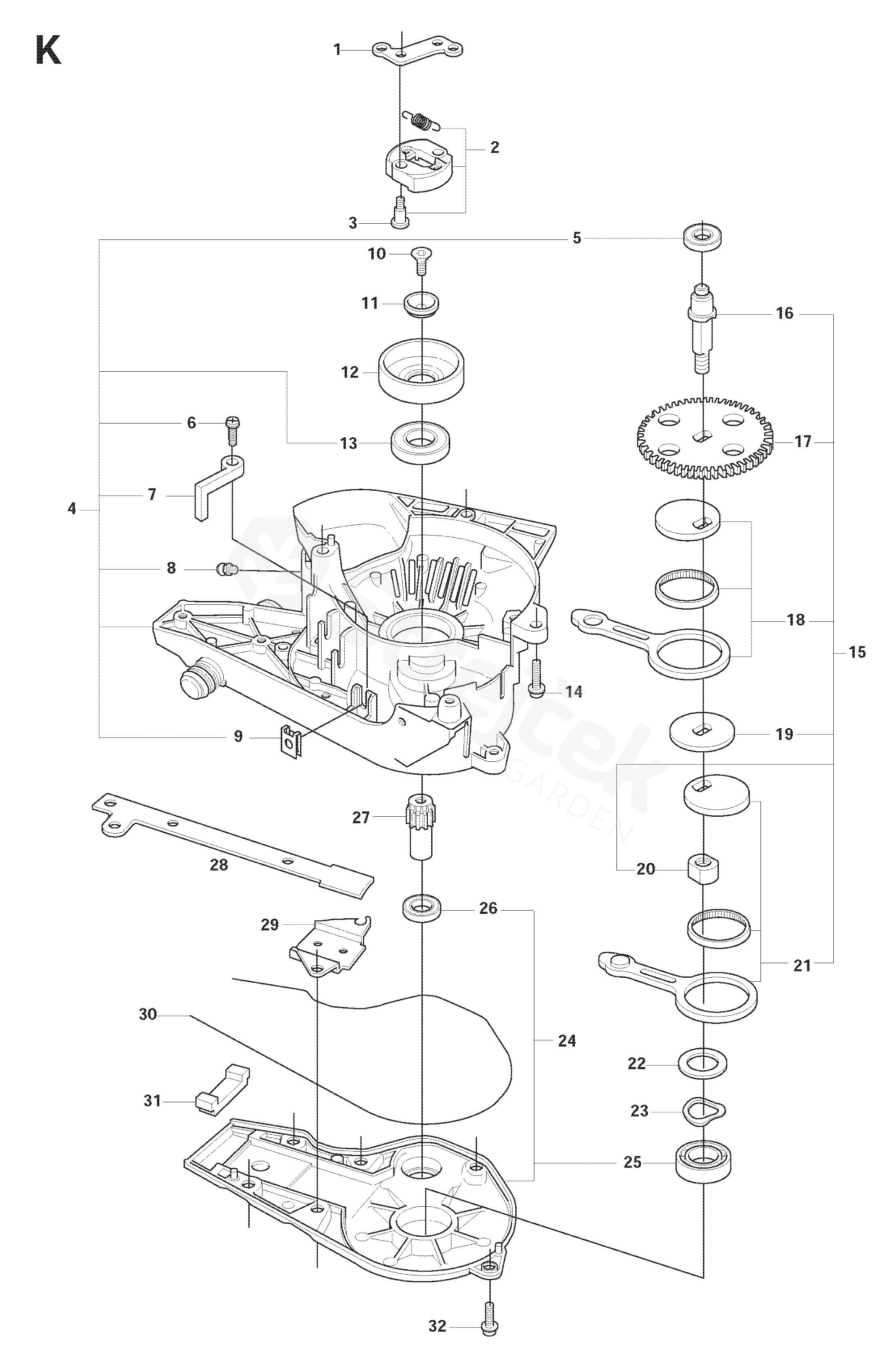

GEAR HOUSING
325 HS75 X-SERIES 325 HS75 X-SERIES, 2008-05
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 325 HS75 X-SERIES, 2008-05
1 CLUTCH HUB 537242501
2 CLUTCH ASSY 544083201
3 SCREW 503842902
4 GEAR HOUSING 537067473
5 BALL BEARING 738219804
6 SCREW CCRPANT 503212713
7 BRACKET 537171701
8 LUBRICATION NIPPLE 738881001
9 SPEED NUT 503227201
10 SCREW IHCSFM 725644956
11 WASHER 537090301
12 CLUTCH DRUM 537039601
13 BALL BEARING 738210204
14 SCREW IHSCFM 503200316
15 DRIVE SHAFT 503982303
16 DRIVE SHAFT 503981901
17 GEAR RIM 503981701
18 CONNECTING ROD 537173502
19 SPACER 503982201
20 NUT 503982001
21 CONNECTING ROD 537173502
22 WASHER 503230014
23 WASHER 503230301
24 HUB CAP 537067501
25 BALL BEARING 738218800
26 BALL BEARING 503250501
27 GEAR WHEEL SHAFT 537090101
28 WEAR PLATE 503983601
29 GUIDE PLATE 537051501
30 O-RING 503263201
31 SEALING 537053301
32 SCREW IHSCT 503216816
