STIGA
>
Lawn Tractor
>
TORNADO PRO 9121 XWSY TORNADO PRO 9121 XWSY (2020)
>

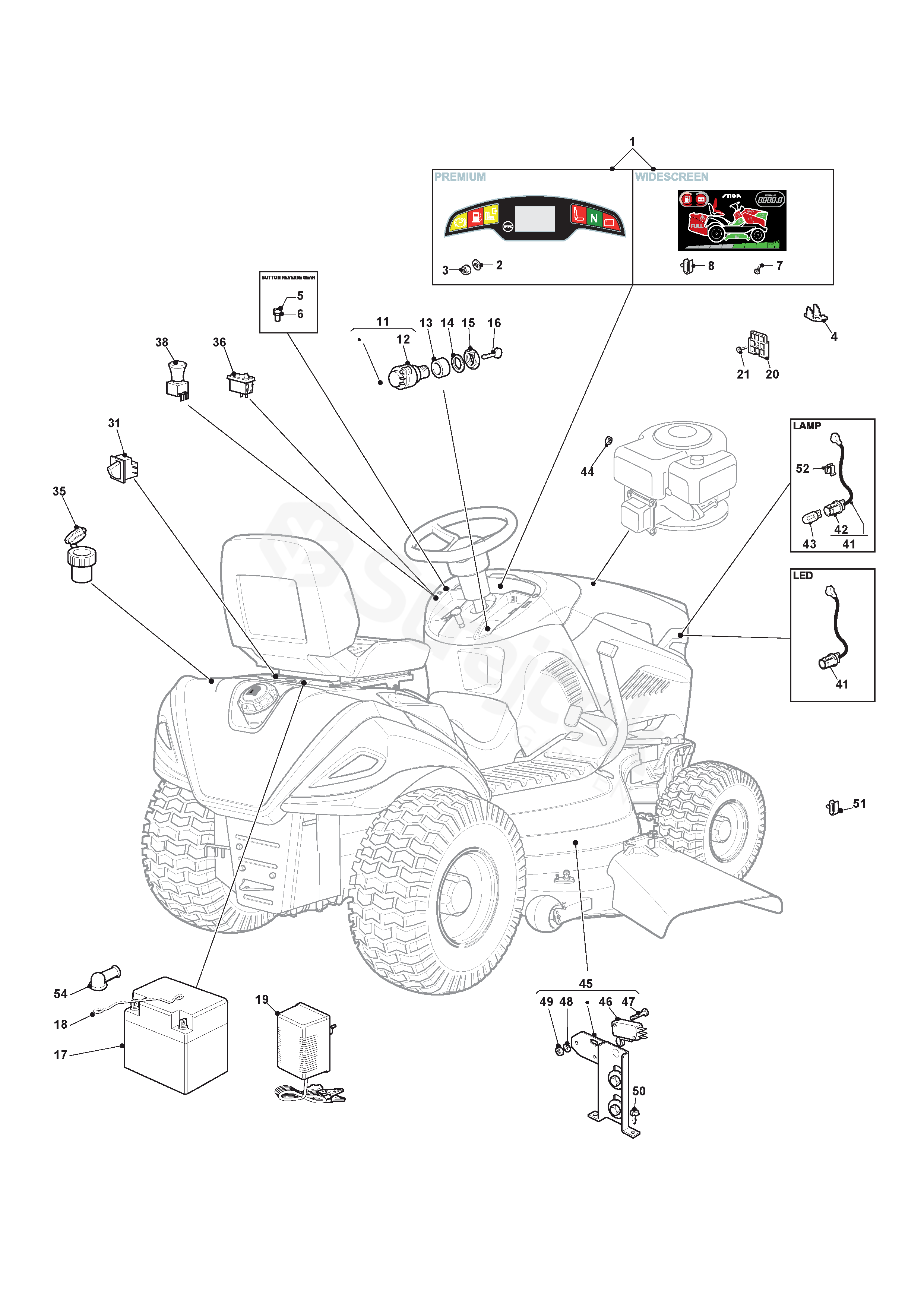

Electrical Parts
Back to
TORNADO PRO 9121 XWSY
TORNADO PRO 9121 XWSY (2020)
Electrical Parts
TORNADO PRO 9121 XWSY
TORNADO PRO 9121 XWSY (2020)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
TORNADO PRO 9121 XWSY (2020)
1
Electronic Card
Widescreen for Honda GXV690
382722457/0
2
Washer
112521320/0
3
Nut
112154330/0
4
Buzzer Sound Amplifier
325031501/0
5
Push Button Reverse Gear
325605003/0
6
Screwed Ring
325256250/0
7
Screw
112728698/0
11
Harness Ass.Y
182040231/0
12
Starting Switch
118450072/0
13
Spacer
118550136/0
14
Washer
118550135/0
15
Ring Nut
118400862/0
16
Starting Key
118210022/0
17
Battery
118120057/0
18
Spring
125430230/0
19
Battery Charger 12V 1A - CE Plugg
CE plug
182180090/0
20
Plate
133500010/1
21
Screw
112735170/0
31
Microswitch
119410622/1
35
Cigarette Lighter Socket
118450200/0
36
Headlight Switch
118450084/0
38
Clutch Switch
Red
118450073/0
41
Cables Ass.Y
For LED Version
182040192/0
42
Lamp Holder
Only for Lamp Version
133500030/0
43
Lamp For Lights
NOT for models with LED Light
118459100/0
44
Nut
112361005/0
45
Switch Ass.Y
382394853/0LC
46
Micro Switch
119410609/1LC
47
Screw
112735602/0
48
Grower
112581100/0
49
Nut
112290791/0
50
Screw
112735110/0
51
Fairlead
133320506/0
52
Fairlead
133320504/0
54
Protection
118564864/1
