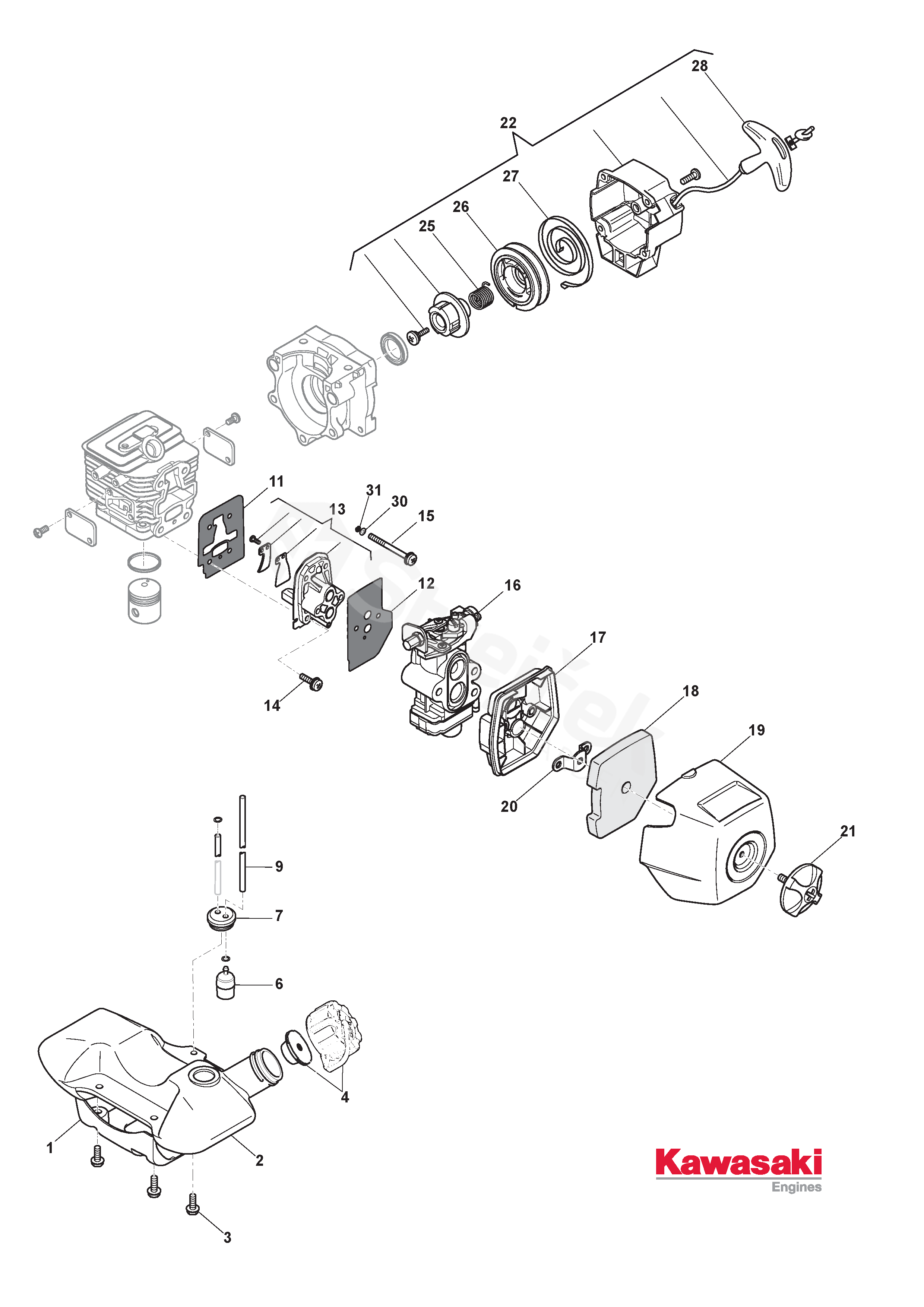

Spare parts > STIGA > Trimmer/Brushcutter > SBC 635 KD SBC 635 KD (2017) > Engine
Back to
Engine
SBC 635 KD SBC 635 KD (2017)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SBC 635 KD (2017)
1 Tank Support 118801856/0
2 Fuel Tank 118801891/0
3 Screw 2135030
4 Oil Cap 118801957/0
6 Intake Filter 183520004/0
7 Grommet 118801926/0
9 Fuel Line 118801950/0
11 Cylinder Gasket 118801970/0
12 Carburetor Gasket 118801966/0
13 Breather Valve Ass.Y 118801789/0
14 Screw 2135030
15 Screw
From 01-September-2018 		9950-0570-12
16 Carburetor 118801826/0
17 Air Cleaner Base 118801764/0
18 Air Filter 118801768/0
19 Yellow Filter Cover 118801784/0
20 Baffle
From 01-September-2017 		118801835/0
21 Screw 118801939/0
22 Starter Assy Black 118801877/0
25 Spring 118801936/0
26 Starter Pulley 118801901/0
27 Spring 118801931/0
28 Starter Handle 118801859/0
30 Washer 2312020
31 Washer 2330020
