Mountfield
>
Lawn Mower
>
480R 480R (2003) [12-5704-80]
>

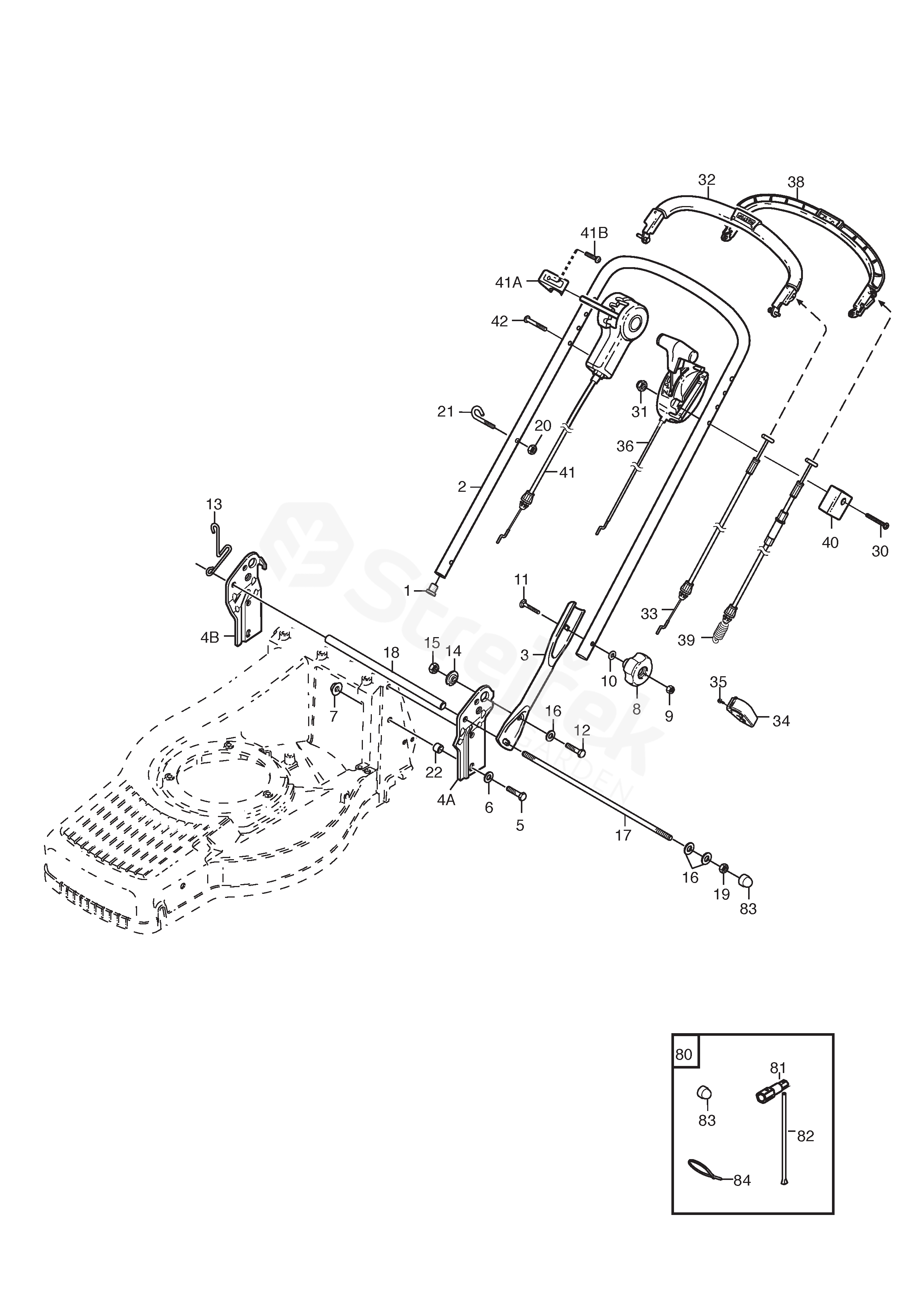

Handle Controls
Back to
480R
480R (2003) [12-5704-80]
Handle Controls
480R
480R (2003) [12-5704-80]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
480R (2003) [12-5704-80]
1
Plug
9403-0043-70
2
Handle Upper
1111-3538-01
3
Handle-Lower Part
1111-3537-01
5
Screw
9997-0820-16
6
Washer
9699-0056-02
7
Nut
9739-0831-22
8
Knob
1117-3194-01
9
Nut
9799-0831-02
10
Washer
9699-0028-02
11
Screw
9898-0845-12
12
Screw
9997-0825-16
13
Eye Link
1111-3578-01
14
Bushing
1111-3554-01
15
Nut
9799-0831-02
16
Washer
9699-0056-02
17
Shaft
1111-3577-01
18
Tube
1111-3576-01
19
Nut
9799-0831-02
20
Nut
9799-0631-02
21
Eye Link
1111-3063-01
22
Collar
1111-3583-01
30
Screw
L = 70 mm
9948-0670-16
31
Lock Nut
9747-0631-02
32
Control Handle (Eng.Brake
1111-2953-01
33
Cable, Thread Engine Brake
1111-2968-02
34
Cable Holder
1111-2018-01
35
Screw
9836-9216-12
36
Throttle Control
1111-3301-02
38
Clutch Lever
1111-2954-01
39
Clutch Cable
1111-3388-01
40
Cable Holder
1111-2969-01
41
Variator Control
1111-2971-01
42
Screw
9838-9540-12
80
Accessory Bag
Pos 81 - 84 incl.
1111-3569-02
81
Spark Plug Wrench
1111-2921-01
82
Rod
1111-2113-01
83
Ring Nut
9403-0113-00
84
Cable Holder
9579-0008-00
41A
Knob
1111-2941-01
41B
Screw
9838-9522-12
4A
Handle Bracket-Lh
1111-3549-01
4B
Handle Bracket-Rh
1111-3549-02
