Mountfield
>
Lawn Mower
>

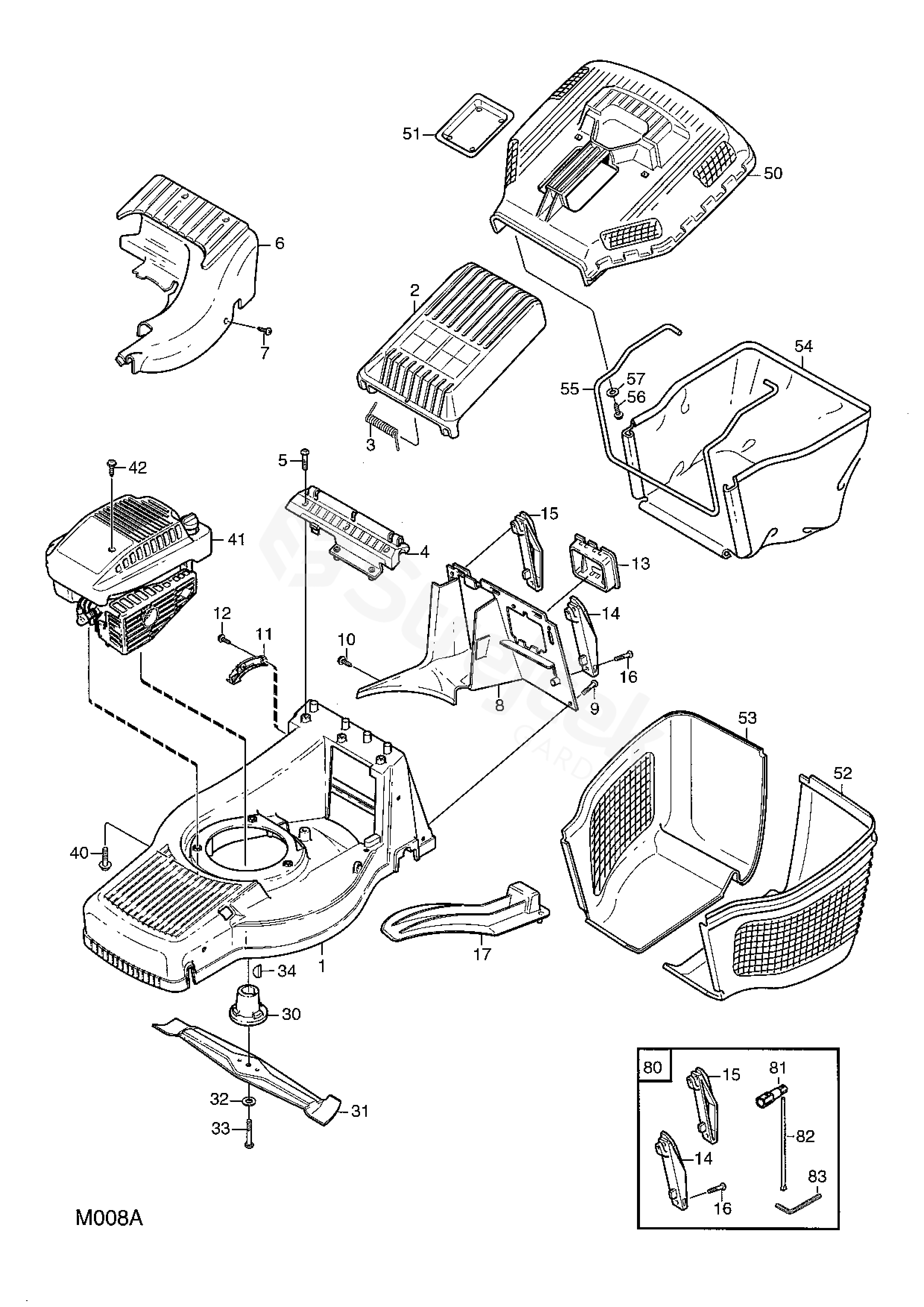

M6 SP TRI-CUT M6 SP TRI-CUT (2003) [12-9604-78]
>
Chassis Grass Collector
Back to
M6 SP TRI-CUT
M6 SP TRI-CUT (2003) [12-9604-78]
Chassis Grass Collector
M6 SP TRI-CUT
M6 SP TRI-CUT (2003) [12-9604-78]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
M6 SP TRI-CUT (2003) [12-9604-78]
1
Chassis (Red 3003)
1111-3020-16
2
Stone Guard, Black
1111-3283-02
3
Spring
1111-2792-01
4
Flap Attachment-Black
1111-2793-02
5
Screw
9947-0616-16
6
Cover (Red 3003)
1111-3019-03
7
Screw
9838-9522-12
8
Rear Attachment (Combi 48-55)
1111-3335-01
9
Screw
9947-0616-16
10
Screw
9838-9522-12
11
Height Adjusting Plate
1111-2798-01
12
Screw
9838-9522-12
13
Battery Holder
1111-2927-01
14
Attachment L.H.
1111-3236-01
15
Attachment R.H.
1111-3237-01
16
Screw
9836-9520-12
17
Mulch Plug (Combi 55)
1111-3333-02
30
Blade Holder
1111-1408-02
31
Blade
1111-3038-01
32
Washer
9696-0011-01
33
Screw
9987-5251-12
34
Key
9600-0014-00
40
Screw
9955-3732-12
50
Collector-Upper Part Black
1111-2840-02
51
Cover
1111-2764-01
54
Collecting Bag (Printed)
1111-2844-02
55
Wire Clamp
1111-2843-01
56
Screw
9838-9522-12
57
Flat washer
9699-0100-02
80
Accessory Bag
Pos 14-16, 81-83 incl
1111-3569-01
81
Spark Plug Wrench
1111-2921-01
82
Rod
1111-2113-01
83
Allen Wrench-6 Mm
9900-0060-00
