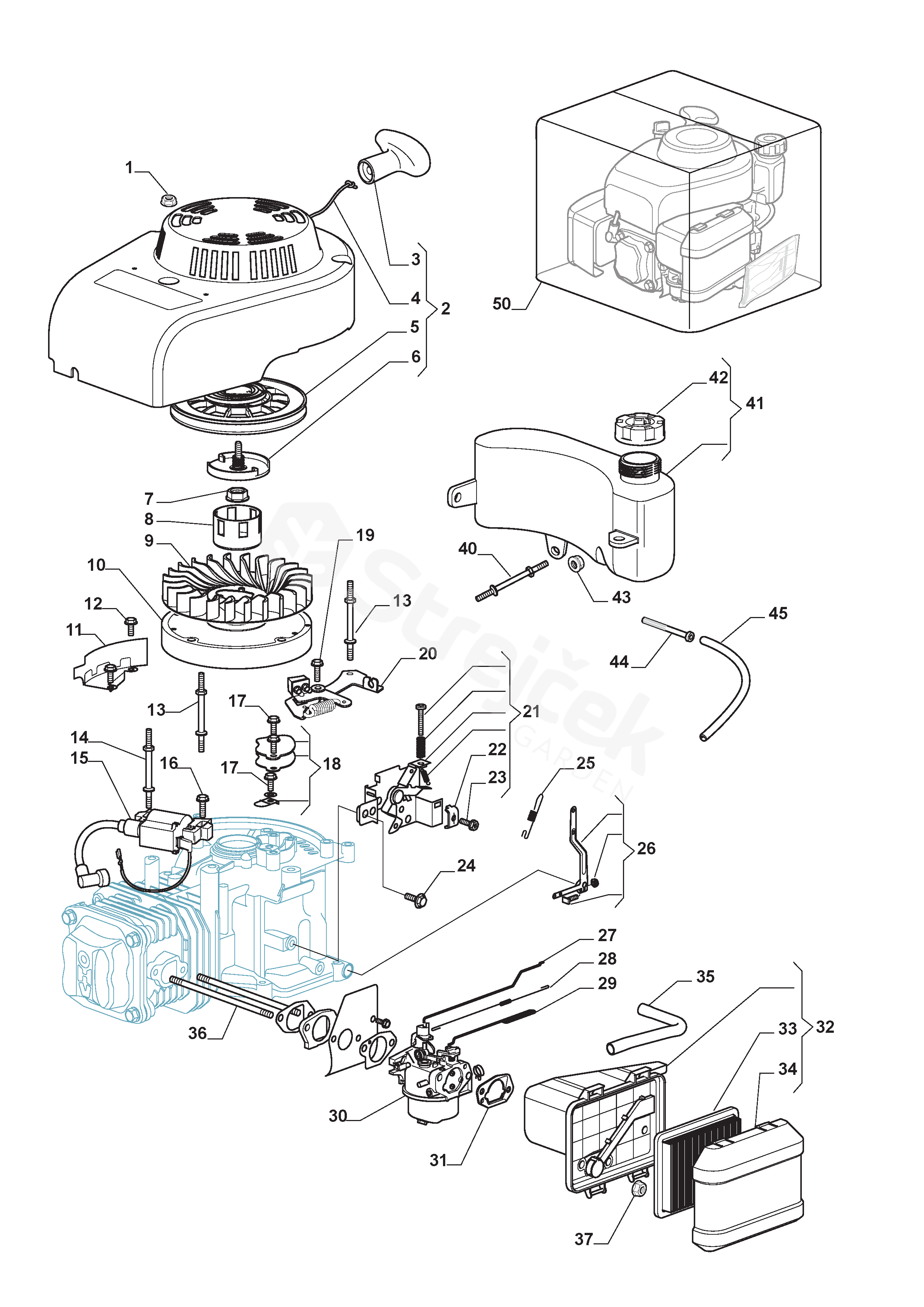

RM55 RM55 (2015) [118550408/0_110002RM55]

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For RM55 (2015) [118550408/0_110002RM55]

1	Nut	112292102/0
2	Starter Assy	118550276/1
3	Starter Handle	118550274/0
4	Starting Rope	118550779/0
5	Starter Pulley	118550778/0
6	Starter Pawl Set	118550275/0
7	Nut	118550336/0
8	Starter Cup	118550335/0
9	Flywheel Fan	118550254/0
10	Flywheel Ass.Y	118550253/0
11	Guard	118550774/0
12	Screw	112791213/1
13	Stud Bolt	118550302/0
14	Stud Bolt	118550301/0
15	Electronic Coil	118550255/0
16	Screw	112791500/0
17	Screw	112790500/0
18	Gasket Assy	118550378/0
20	Flywheel Brake Assy	118550376/0
21	Remote Control Assy	118550259/0
22	Casing Clamp	118550337/0
23	Screw	118550338/0
25	Spring	118550260/0
26	Arm Governor Assy	118550266/0
27	Governor Link	118550397/0
28	Spring	118550263/0
29	Choke Control Rod	118550264/0
30	Carburetor	118550251/0
31	Air Filter Gasket	118550738/0
32	Air Cleaner Assy	118550737/0
33	Air Filter	118550257/0
34	Air Cleaner Cover	118550739/0
35	Breather Fuel Pipe	118550377/0
36	Stud Bolt	118550298/0
40	Stud Bolt	118550315/0
41	Fuel Tank	118550316/0
42	Fuel Cap	118550339/1
44	Fuel Filter	118550314/0
45	Fuel Pipe	118550340/0
50	Engine Assembled	118550408/0
