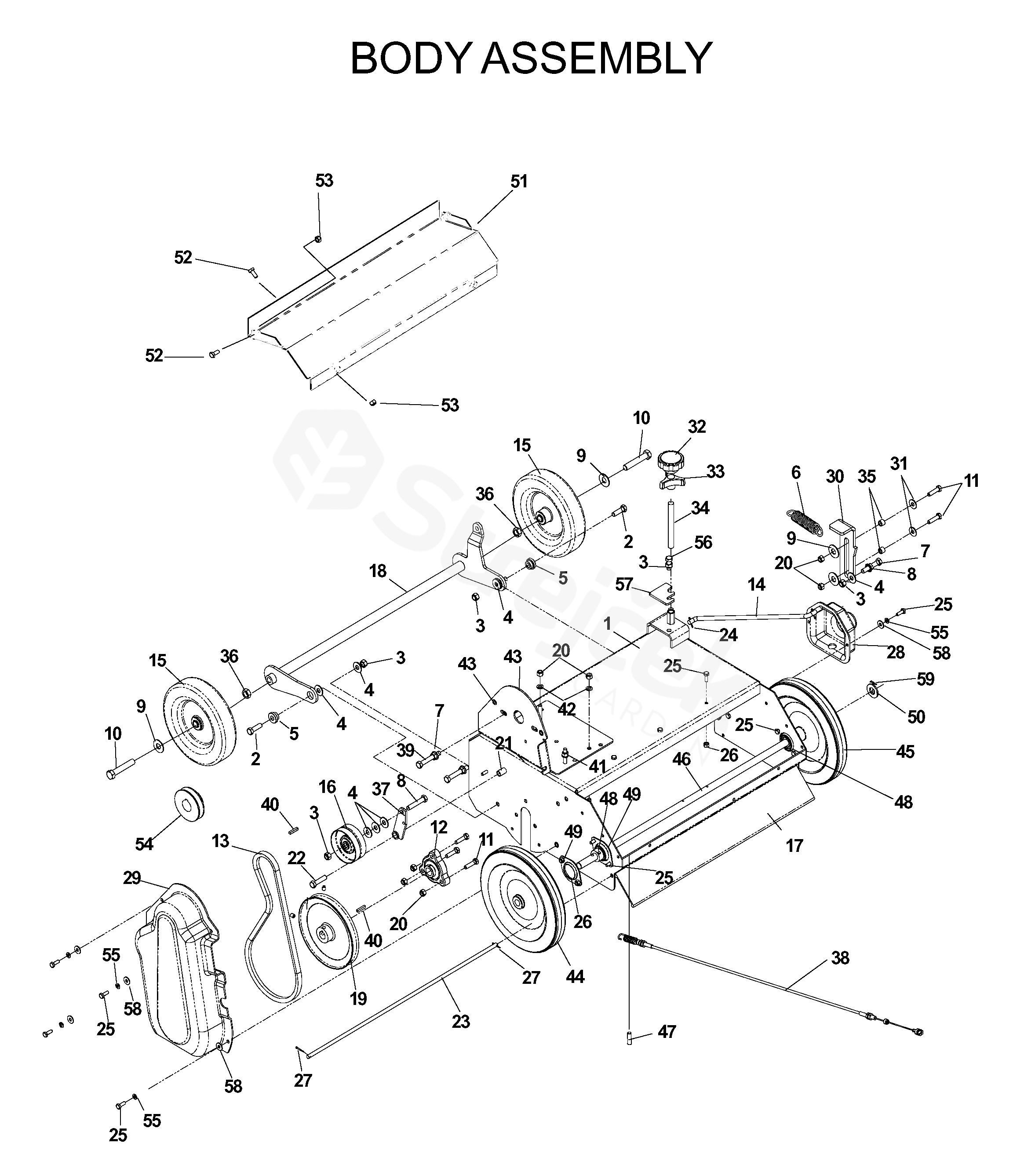

DT22 DT22H5NRA, 968999131, 2005-11

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For DT22H5NRA, 968999131, 2005-11

1	BODY	539106762
2	SCREW	539976941
3	END BRACKET	539976979
4	PODLOŽKA	539990517
5	BUSHING	539106847
6	SPRING	539106850
7	NUT	539990613
8	SCREW	539990588
9	WASHER	539990550
10	SCREW	539101332
11	SCREW	539990627
12	BEARING	539100488
13	BELT	539100439
14	ROD	539106805
15	WHEEL	540075051
16	PULLEY, IDLER	539110311
17	FLAP	539106643
18	SHAFT	539106759
19	PULLEY	539108541
20	MATICE	539990717
21	BUSHING	539100482
22	SCREW	539990655
23	ROD	539106672
24	PIN RETAINING SCREW	539990365
25	SCREW	539990580
26	MATICE	539976978
27	PIN RETAINING SCREW	539990365
28	GUARD	539106754
29	BELT GUARD	539108069
30	BRACKET	539106816
31	PODLOŽKA	539990692
32	KNOB	540000035
33	KNOB	540030485
34	THREADED ROD	540052761
35	SPACER	539102827
36	NUT	539990625
37	ARM, IDLER - ORANGE	539108067
38	WIRE	539106849
39	SCREW	539990637
40	KEY	540005226
41	SCREW	539990669
42	PODLOŽKA	539990187
43	PLATE	539106772
44	WHEEL	540000058
45	WHEEL	540053401
46	SHAFT	539106663
47	ROLL PIN 1/4 X 1 1/8	540000364
48	BEARING	540000319
49		54000321
50	WASHER	539000436
51	COVER	539106757
52	SCREW	539990072
53	MATICE	539976978
54	PULLEY , ENGINE	539108543
55	PODLOŽKA	539990052
56	SCREW	539990563
57	PLATE	539108022
58	WASHER	539990598
59	SPLIT PIN	539990297
60	INSERT	539108147
