Castelgarden
>
Lawn Mower
>
XA 52 RHS XA 52 RHS (2004)
>

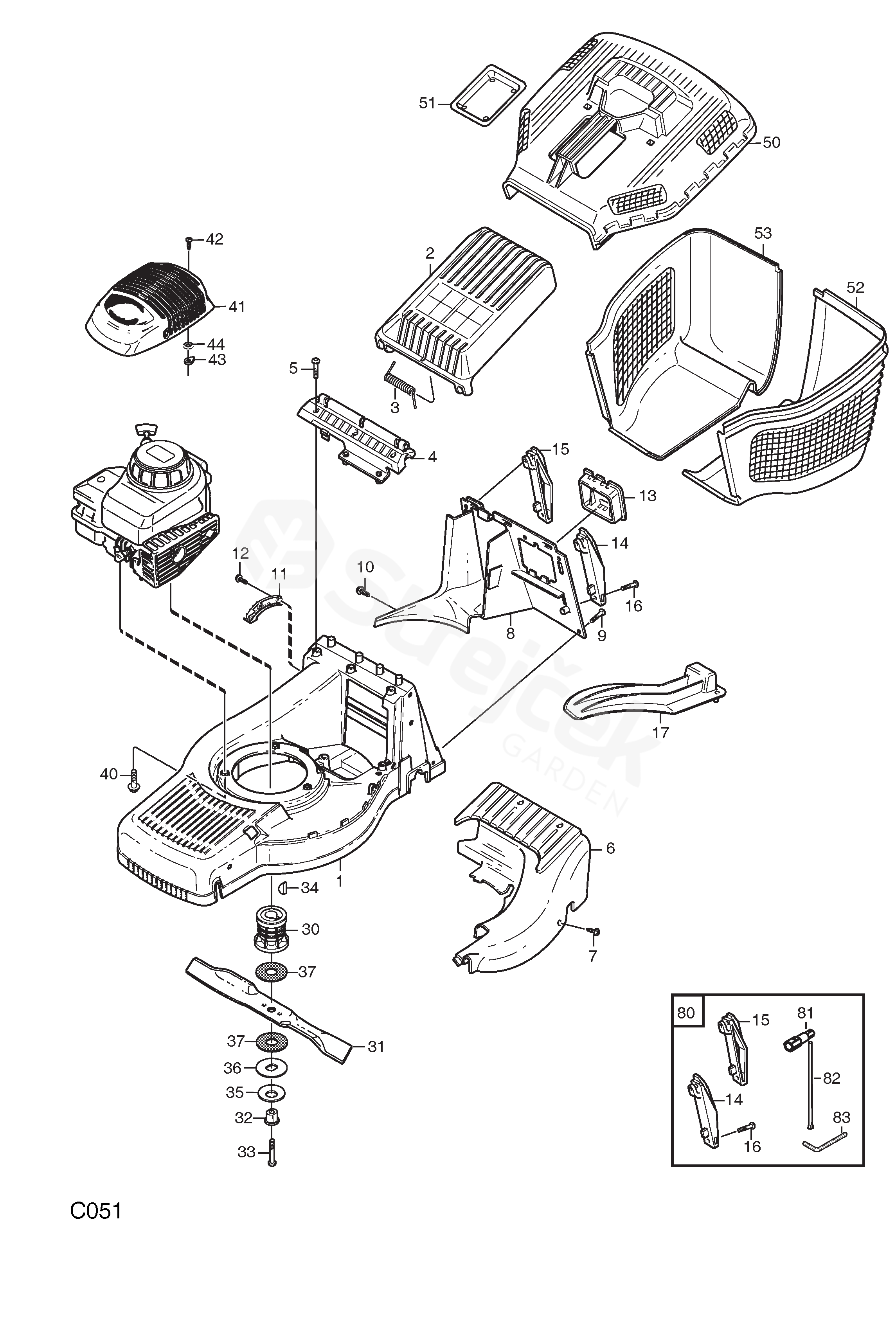

Chassis + Grass Collector
Back to
XA 52 RHS
XA 52 RHS (2004)
Chassis + Grass Collector
XA 52 RHS
XA 52 RHS (2004)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
XA 52 RHS (2004)
1
Chassie (Red)
1111-3090-04
2
Stone Guard, Black
1111-3283-02
3
Spring
1111-2792-01
4
Flap Attachment-Black
1111-2793-02
5
Screw
9947-0616-16
6
Cover (Red)
1111-2794-04
7
Screw
9838-9522-12
8
Rear Attachment (Combi 48-55)
1111-3335-01
9
Screw
9947-0616-16
10
Screw
9838-9522-12
11
Height Adjusting Plate
1111-2798-01
12
Screw
9838-9522-12
13
Battery Holder
1111-2927-01
14
Attachment L.H.
1111-3236-01
15
Attachment R.H.
1111-3237-01
16
Screw
9836-9520-12
17
Mulch Plug (Combi 48)
1111-3333-01
30
Blade Hub
1111-3492-01
31
Combi Blade
1111-3506-01
32
Bushing
1111-3483-01
33
Screw
9987-5270-12
34
Key
9600-0014-00
35
Disc Washer
1111-3482-01
36
Washer
1111-3481-01
37
Friction Disc
1111-3480-01
40
Screw
9955-3732-12
41
Engine Cover-Black (Honda)
1111-3601-01
42
Screw
1111-3625-01
43
Washer
1111-3629-01
44
Rubber ring
1111-3624-01
50
Collector-Upper Part Black
1111-2840-02
51
Cover
1111-2764-01
52
Collector, Lower Lh
1111-2841-10
53
Collector, Lower Rh
1111-2842-10
80
Accessory Bag
Pos 14- 16,81- 83 incl.
1111-3569-01
81
Spark Plug Wrench
1111-2921-01
82
Rod
1111-2113-01
83
Allen Wrench-6 Mm
9900-0060-00
