Spare parts > Husqvarna > LAWN MOWERS: CONSUMER WALK-BEHINDS > LB553 S LB553 S, 967257101, 2016-01 > ENGINE
Back to

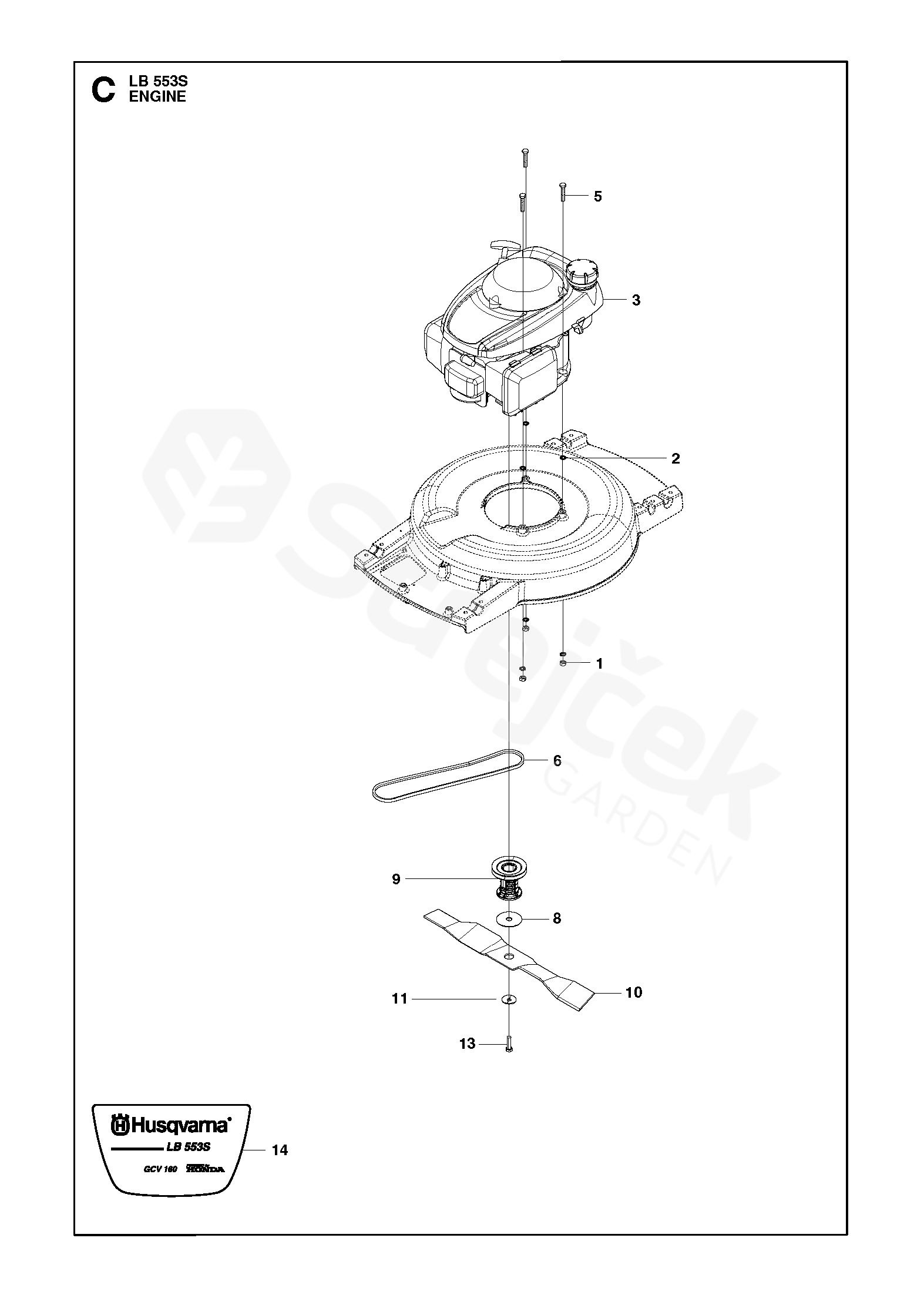

ENGINE
LB553 S LB553 S, 967257101, 2016-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LB553 S, 967257101, 2016-01
1 LOCK NUT 732211801
2 PODLOŽKA 734116401
3 TBD N/A
GCV 160 A0 A3-HV-SD 		.
5 SCREW EHHM 725246351
6 BELT Kit: 580 86 28-01 (Belt with shell)
Kit: 580 86 28-01, for 83mm pulley 		295673002
8 PODLOŽKA
Diam 83mm - Use with belt 2956730-02 		503259401
9 BLADE SUPPORT 501110701
10 MOWER BLADE Kit: 531 00 92-54 (Blade with box)
Kit: 531 00 92-54 (Blade with box) 		295673220
11 PRUŽINA 503332501
13 SCREW EHHI 504456401
14 DECAL 585835204
