Spare parts
Everything for your machines
Spare parts
>
Castelgarden
>
Front mowers
>

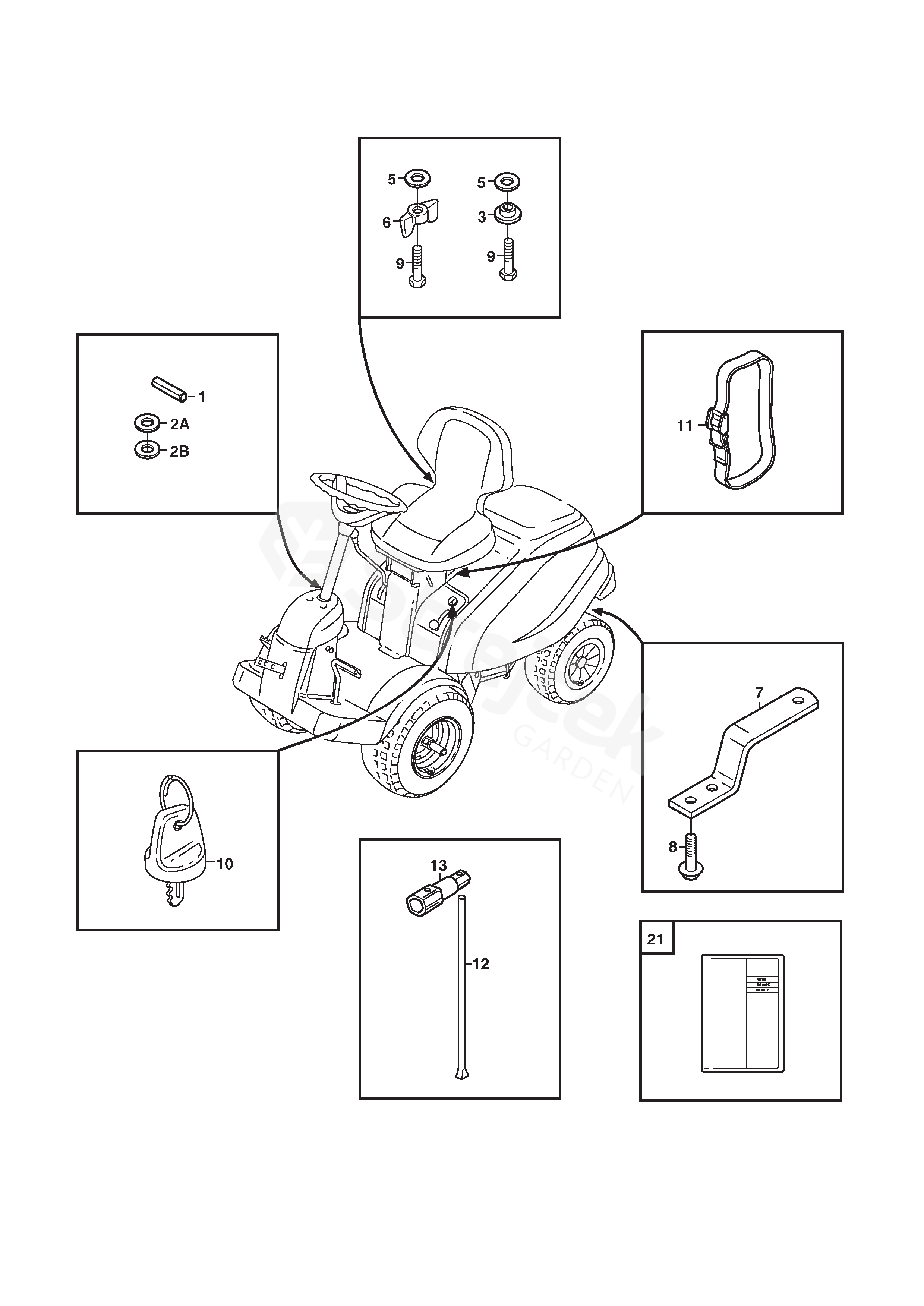

XM 160 HD XM 160 HD (2005) [13-2783-35]
>
Assembly parts
Back to
XM 160 HD
XM 160 HD (2005) [13-2783-35]
Assembly parts
XM 160 HD
XM 160 HD (2005) [13-2783-35]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
XM 160 HD (2005) [13-2783-35]
0
Accessory Bag
Pos 1 - 13 incl.
1134-4664-04
1
Locating Pin
9595-0262-00
2
Washer
0.5 mm / Pos. 2A
9699-0103-02
3
Flange Washer
1134-4185-01
5
Washer
9699-0056-02
6
Wing Nut
1134-4481-01
7
Tow Bar
1134-4627-01
8
Screw
9959-0820-16
9
Screw
9997-0820-16
10
Ignition Key
1134-4734-01
11
Battery Holder
9400-0064-02
12
Rod
1111-2113-01
13
Spark Plug Wrench
5/8" (16 mm) / Pos. 13A
1134-2960-02
21
Owner’s Manual
HST Canada
8211-1030-02
