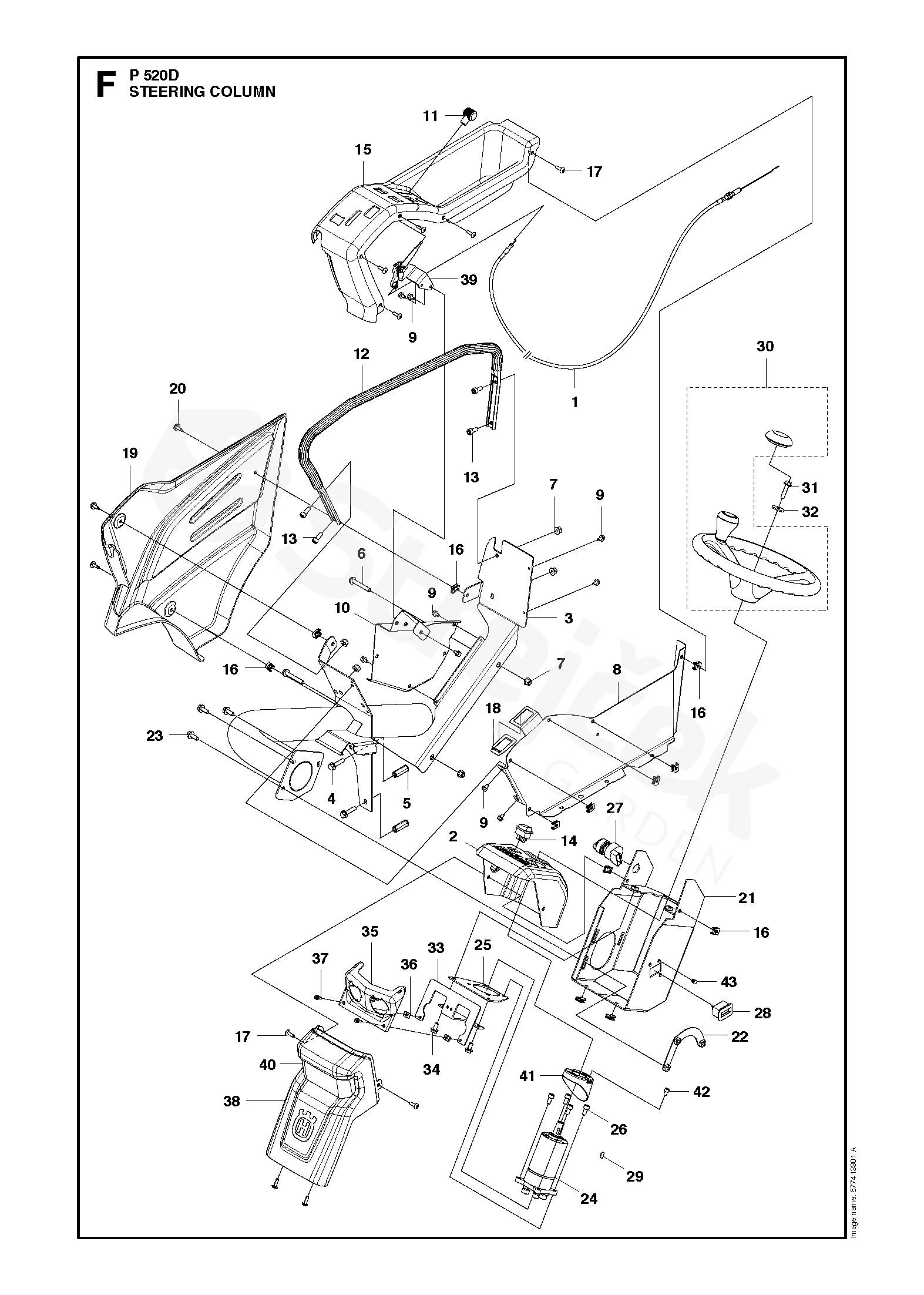

Spare parts > Husqvarna > RIDERS > P520 D P520 D, 966607301, 2011 > STEERING
Back to
STEERING
P520 D P520 D, 966607301, 2011
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For P520 D, 966607301, 2011
1 WIRE 576656501
2 COVER 577218601
3 CONSOLE 575882201
4 SCREW EHHFM 506570106
5 HEXAGON NUT 576434201
6 SCREW EHHFM 506570107
7 NUT FLANGE 576645704
8 PANEL 575882801
9 SCREW EHHFT 725236461
10 BRACKET 576256201
11 KNOB 506889101
12 HANDLE 575882901
13 SCREW IHSCM 725545101
14 SWITCH 502655701
15 PANEL 577488001
16 MATICE 535429101
17 SCREW 574856202
18 LOCKWASHER 544404301
19 COVER 575883601
20 SCREW 574856202
21 BRACKET 576545101
22 SHEET 576444301
23 SCREW EHHFM 506570104
24 POWER STEERING 506068101
25 BRACKET 576545001
26 SCREW IHSCM 725544901
27 KEY SWITCH 535474901
28 HOUR METER 577092701
29 WOODRUFF KEY 735881200
30 STEERING WHEEL 544291401
31 SCREW EHHFM 506570106
32 BELT COVER 544221601
33 BRACKET 576021701
34 SCREW EHHFM 506570104
35 LAMP BODY ASSY 535464201
36 SPEED NUT 506892001
37 SCREW 535415619
38 COVER 576392301
39 THROTTLE CONTROL 576806801
40 COVER 576231101
41 COVER 578790801
42 SCREW 725536401
43 INSERT 580272901
