ST S p A
>
Lawn Mower
>
M2 HP TRI-CUT M2 HP TRI-CUT (2003) [12-1581-77]
>
Chassis Grass Collector
Back to
M2 HP TRI-CUT
M2 HP TRI-CUT (2003) [12-1581-77]

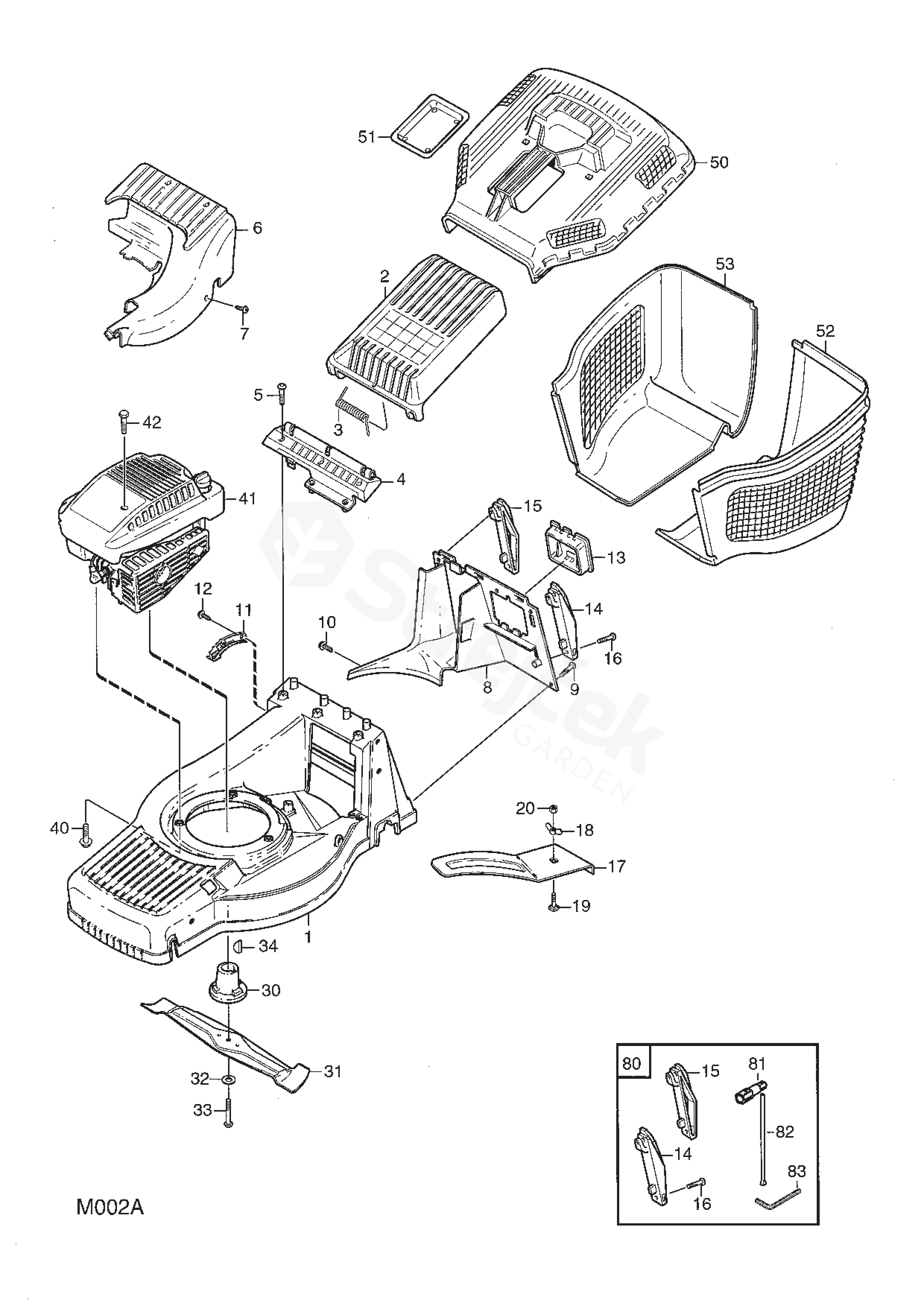

Chassis Grass Collector
M2 HP TRI-CUT
M2 HP TRI-CUT (2003) [12-1581-77]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
M2 HP TRI-CUT (2003) [12-1581-77]
1
Chassis (Red)
1111-3100-17
2
Flap (Black)
1111-3282-02
3
Spring
1111-3181-01
4
Flap Attachment (Black)
1111-3104-02
5
Screw
9947-0616-16
6
Cover (Red 3003)
1111-3102-03
8
Rear Attachment (Combi 43)
1111-3337-01
10
Screw
9838-9522-12
11
Height Adjusting Plate
1111-2798-01
13
Battery Holder
1111-2927-01
14
Attachment L.H.
1111-3236-01
15
Attachment R.H.
1111-3237-01
16
Screw
9836-9520-12
17
Mulch Plug (Combi 43)
1111-3336-01
18
Wing Nut
1134-4481-01
19
Screw
9898-0820-16
20
Nut
9799-0831-02
30
Blade Holder
1111-1408-02
31
Blade
1111-3110-01
32
Washer
9696-0011-01
33
Screw
9987-5251-12
34
Key
9600-0014-00
40
Screw
9955-3732-12
41
Engine Cover Black
1111-3287-01
42
Screw
9828-7942-12
50
Grass Bag Cover (Black)
Pos 51 incl.
1117-1345-02
51
Cover
1111-2764-01
52
Collector-Lower Part L.H.
1111-3106-01
53
Collector-Lower Part R.H.
1111-3116-01
80
Accessory Bag
Pos 14-16, 81-83 incl
1111-3569-01
81
Spark Plug Wrench
1111-2921-01
82
Rod
1111-2113-01
83
Allen Wrench-6 Mm
9900-0060-00
