Spare parts - Partlist - MB 430 MB 430 B (HERKULES) (2003) - Deck

Everything for your machines

MB 430 MB 430 B (HERKULES) (2003)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For MB 430 B (HERKULES) (2003)

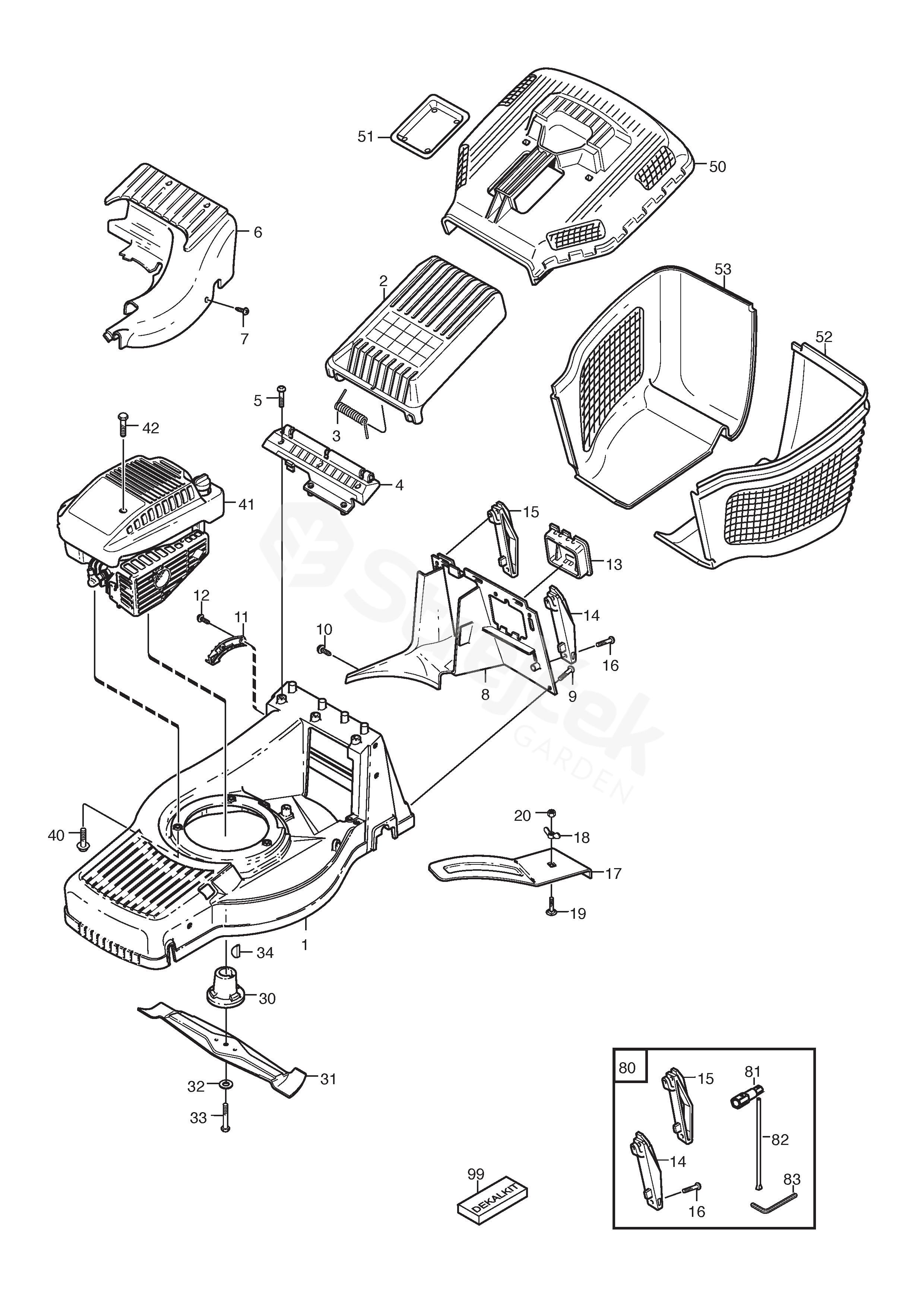

1	Chassis (Red)	1111-3100-16
2	Flap (Black)	1111-3282-02
3	Spring	1111-3181-01
4	Flap Attachment (Black)	1111-3104-02
5	Screw	9947-0616-16
6	Cover (Red)	1111-3102-04
8	Rear Attachment	1111-3101-01
10	Screw	9838-9522-12
11	Height Adjusting Plate	1111-2798-01
13	Battery Holder Ej/not on 12-1798-87	1111-2927-01
14	Attachment L.H.	1111-3236-01
15	Attachment R.H.	1111-3237-01
16	Screw	9836-9520-12
30	Blade Hub	1111-9070-01
31	Blade	1111-9089-01
32	Washer	9696-0011-01
33	Screw	9987-5251-12
34	Key	9600-0014-00
40	Screw	9955-3732-12
41	Engine Cover Black	1111-3287-01
42	Screw	9828-7942-12
50	Grass Bag Cover (Black) Inkl. pos 51	1117-1345-02
51	Cover	1111-2764-01
52	Collector-Lower Part L.H.	1111-3106-01
53	Collector-Lower Part R.H.	1111-3116-01
80	Accessory Bag Inkl. pos 14-16,81-83	1111-3569-01
81	Spark Plug Wrench	1111-2921-01
82	Rod	1111-2113-01
83	Allen Wrench-6 Mm	9900-0060-00
