ST S p A
>
Lawn Mower
>

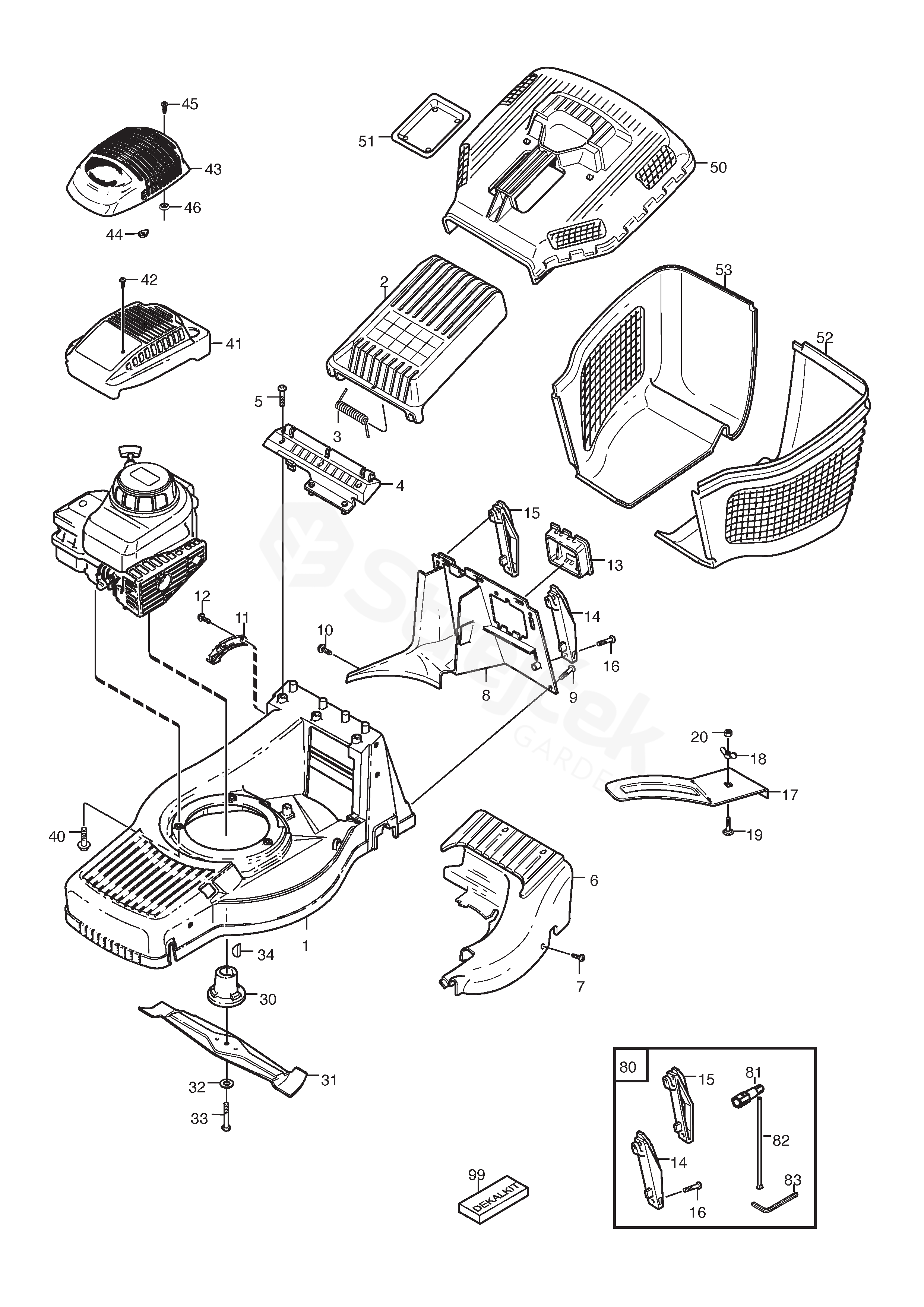

HERKULES MB 432 SB HERKULES MB 432 SB (2004)
>
Deck
Back to
HERKULES MB 432 SB
HERKULES MB 432 SB (2004)
Deck
HERKULES MB 432 SB
HERKULES MB 432 SB (2004)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
HERKULES MB 432 SB (2004)
1
Chassis (Red)
1111-3100-16
2
Flap (Black)
1111-3282-02
3
Spring
1111-3181-01
4
Flap Attachment (Black)
1111-3104-02
5
Screw
9947-0616-16
6
Cover (Red)
1111-3102-04
8
Rear Attachment (Combi 43)
1111-3337-01
10
Screw
9838-9522-12
11
Height Adjusting Plate
1111-2798-01
13
Battery Holder
Ej/not on 12-1798-88
1111-2927-01
14
Attachment L.H.
1111-3236-01
15
Attachment R.H.
1111-3237-01
16
Screw
9836-9520-12
17
Mulch Plug (Combi 43)
1111-3336-01
18
Wing Nut
1134-4481-01
19
Screw
9898-0820-16
20
Nut
9799-0831-02
30
Blade Hub
1111-9070-01
31
Blade
1111-9089-01
32
Washer
9696-0011-01
33
Screw
9987-5251-12
34
Key
9600-0014-00
40
Screw
9955-3732-12
41
Engine Cover (Black)
1111-3352-01
42
Screw
9500-9907-01
50
Grass Bag Cover (Black)
Inkl. pos 51
1117-1345-02
51
Cover
1111-2764-01
52
Collector-Lower Part L.H.
1111-3106-01
53
Collector-Lower Part R.H.
1111-3116-01
80
Accessory Bag
Inkl. pos 14-16,81-83
1111-3569-01
81
Spark Plug Wrench
1111-2921-01
82
Rod
1111-2113-01
83
Allen Wrench-6 Mm
9900-0060-00
