Spare parts > Husqvarna > RIDERS > PR17 AWD PR17 AWD, 965192301, 2010-07 > 94CM CUTTING DECK
Back to

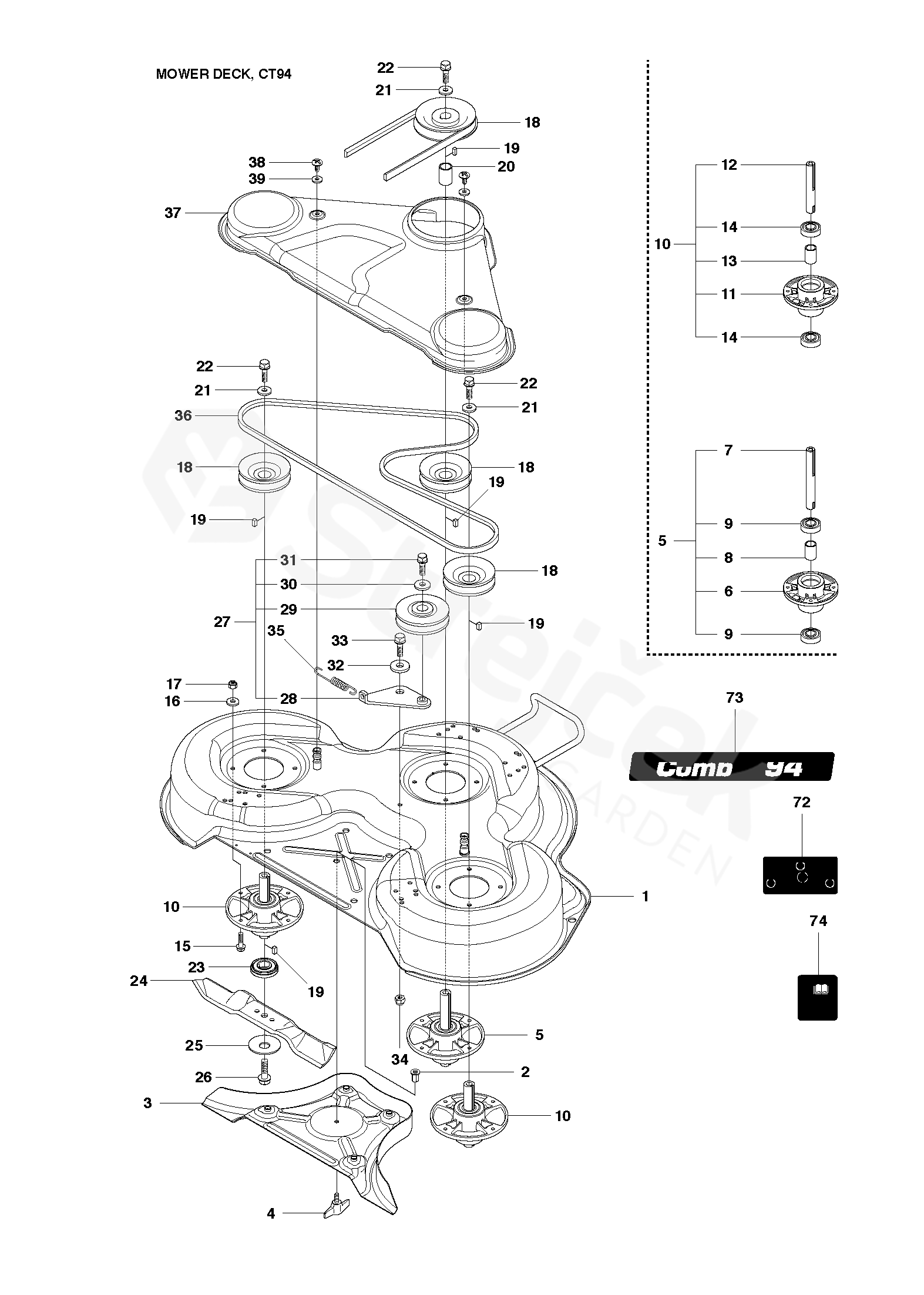

94CM CUTTING DECK
PR17 AWD PR17 AWD, 965192301, 2010-07
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PR17 AWD, 965192301, 2010-07
1 DECK SHELL ASSY 544065509
2 BLIND RIVET NUT 506916201
3 PLUG 544065801
4 KNOB 544066101
5 MANDREL 535503501
6 BEARING HOUSING 544067801
7 SHAFT 535428701
8 SPACER 535428801
9 BALL BEARING 738220519
10 MANDREL 535503502
11 BEARING HOUSING 544067801
12 SHAFT 535428702
13 SPACER 535428801
14 BALL BEARING 738220519
15 SCREW RSQM 535423801
16 PODLOŽKA 734116401
17 LOCK NUT 732211801
18 PULLEY 535429001
19 PARALELNÍ KLÍN 506533501
20 SPACER 535428801
21 WASHER 535429201
22 SCREW EHHM 725254251
23 ADAPTER 535504201
24 BLADE 505544601
25 KNIFE PLATE 506792302
26 SCREW EHHM 725254251
27 BELT TENSIONER ASSY 506540701
28 ARM New 50 mm 506519501
29 PULLEY 506532701
30 PODLOŽKA 734116441
31 SCREW EHHFT 506558302
32 PODLOŽKA 506918702
33 SCREW EHHM 725245171
34 LOCK NUT 732211801
35 PRUŽINA 506533101
36 BELT 535504501
37 BELT COVER 544066301
38 SCREW 506982601
39 WASHER 506559701
72 LABEL 506789701
73 LABEL 544238110
74 LABEL 506929001
