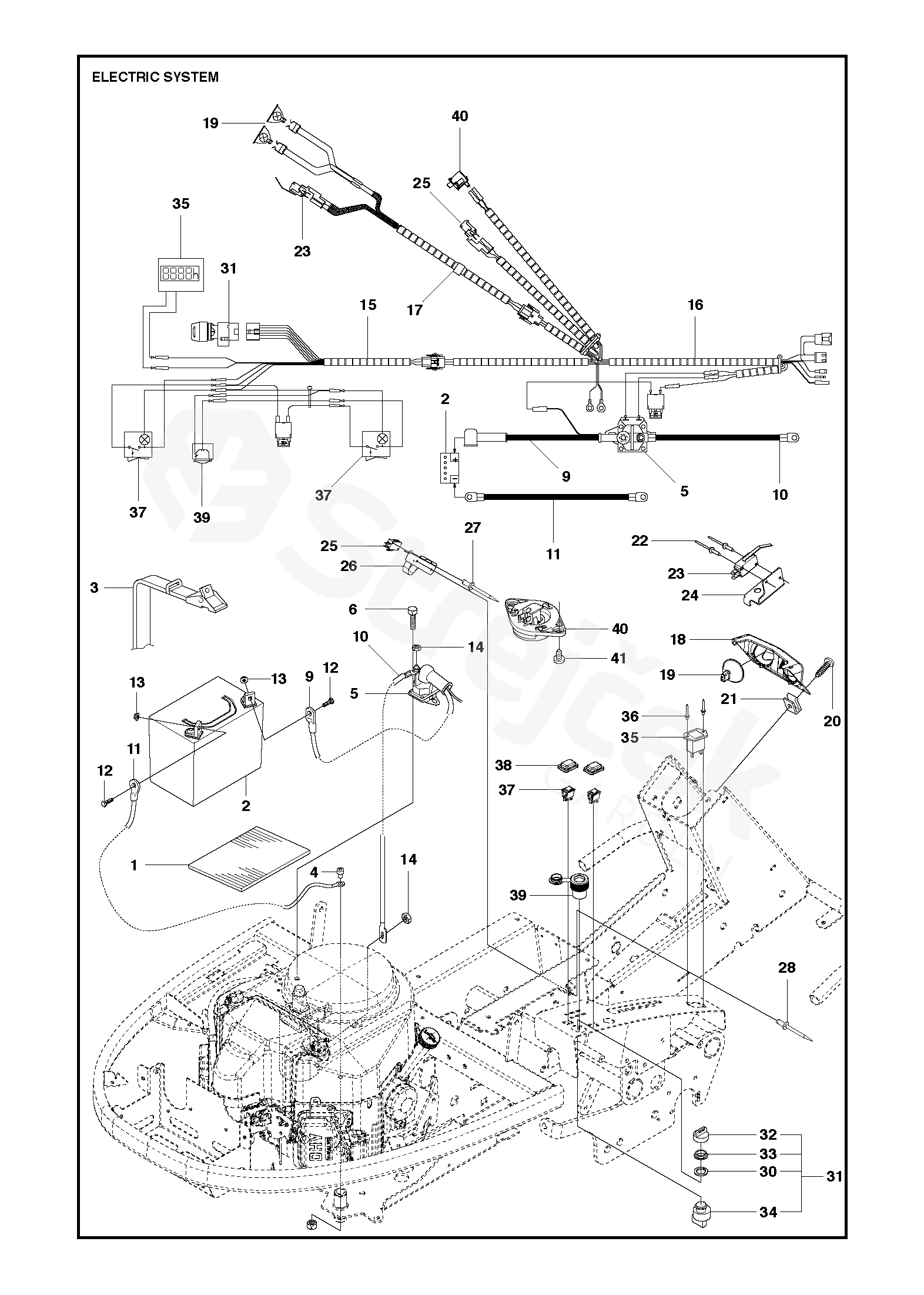

Spare parts > Husqvarna > RIDERS > R418 TS AWD R418 Ts AWD, 967158501, 2013-01 > ELECTRICAL
Back to
ELECTRICAL
R418 TS AWD R418 Ts AWD, 967158501, 2013-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For R418 Ts AWD, 967158501, 2013-01
1 BATTERY MAT 535441101
2 BATTERY 577041601
3 BELT 506836802
4 SCREW IHSCM 725544701
5 RELAY 544439801
6 SCREW EHHFT 725236461
9 CABLE 578896501
10 CABLE 576183901
11 CABLE 576183801
12 SCREW EHHM 522622101
13 NUT 522624301
14 MATICE 506899801
15 WIRING 580500601
16 WIRING 580500501
17 WIRING 577013501
18 HOUSING 535446701
19 LAMP 535446801
20 SCREW 535415619
21 SPEED NUT 506892001
22 NÝT 544440701
23 SWITCH 574316101
24 BRACKET 544415701
25 SWITCH 574316001
26 PLATE SPRING 535457001
27 NÝT 544440701
28 BLIND RIVET 722783902
30 WASHER 535475001
31 KEY SWITCH 535474901
32 IGNITION KEY 535476001
33 NUT 535476101
34 KEY SWITCH 504851701
35 HOUR METER 578382401
36 RIVET 722782502
37 SWITCH 535462301
38 SHIELDING MEDIUM 535462401
39 POWER SOCKET 535474801
40 SWITCH 582876601
41 SCREW IHSCT 503218816
