Spare parts > Husqvarna > RIDERS > R422 Ts AWD R422 Ts AWD, 966772901, 2014 > ELECTRICAL
Back to

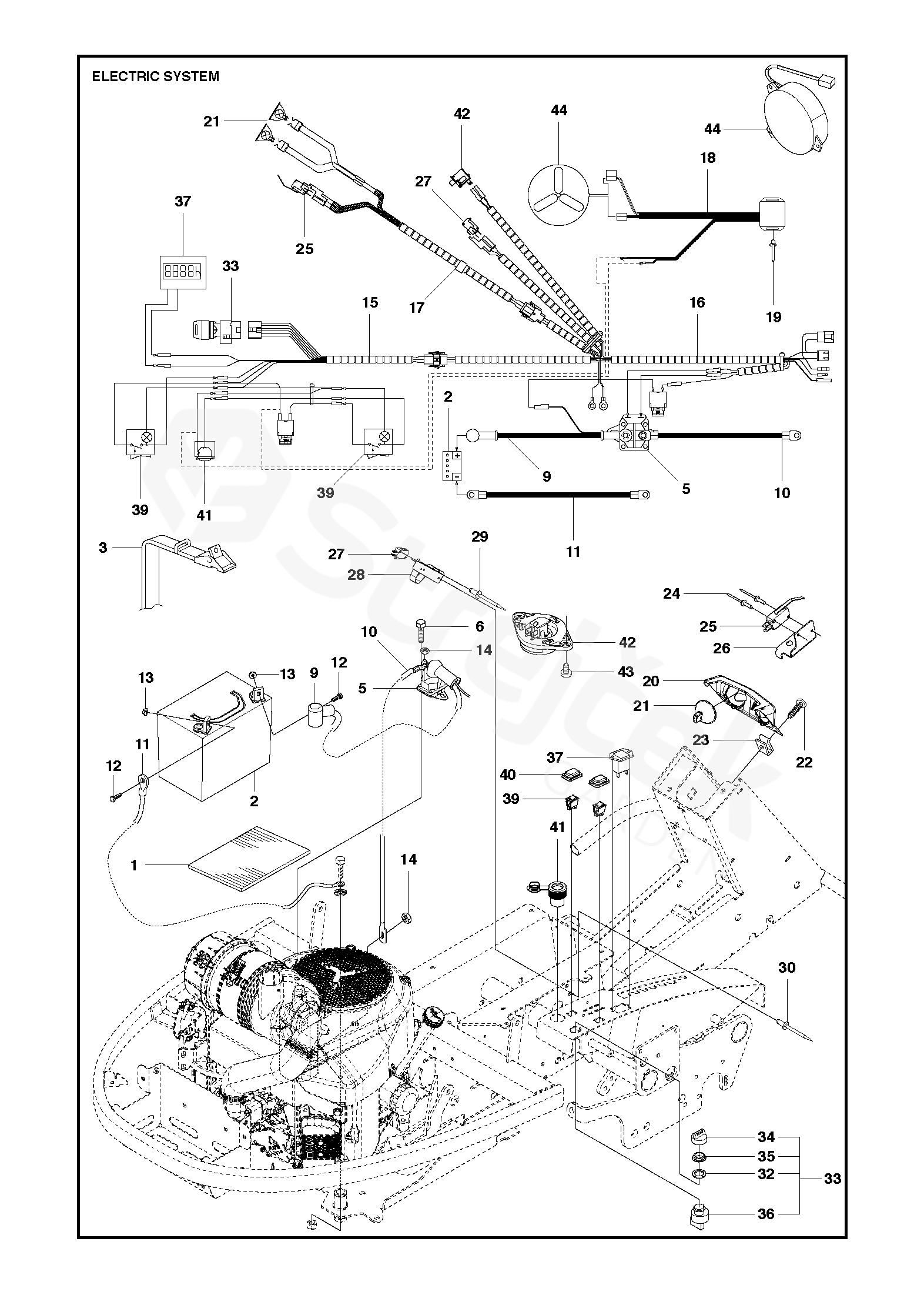

ELECTRICAL
R422 Ts AWD R422 Ts AWD, 966772901, 2014
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For R422 Ts AWD, 966772901, 2014
1 BATTERY MAT 535441101
2 BATTERY 577041601
3 BELT 506836802
5 RELAY 544439801
6 SCREW EHHFT 725236461
9 CABLE 578896501
10 CABLE 576183901
11 CABLE 576183801
12 SCREW EHHM 522622101
13 NUT 522624301
14 MATICE 506899801
15 WIRING 580616501
16 WIRING 580616401
17 WIRING 577013501
18 THERMOSTAT ASSY 504639401
19 BLIND RIVET 722782902
20 HOUSING 535446701
21 LAMP 535446801
22 SCREW 535415619
23 SPEED NUT 506892001
24 NÝT 544440701
25 SWITCH 574316101
26 BRACKET 544415701
27 SWITCH 574316001
28 PLATE SPRING 535457001
29 NÝT 544440701
30 BLIND RIVET 722783902
32 WASHER 535475001
33 KEY SWITCH 535474901
34 IGNITION KEY 535476001
35 NUT 535476101
36 KEY SWITCH 504851701
37 HOUR METER 578382401
39 SWITCH 535462301
40 SHIELDING MEDIUM 535462401
41 POWER SOCKET 535474801
42 SWITCH 582876601
43 SCREW IHSCT 503218816
44 FAN 504629301
