Spare parts > Husqvarna > RIDERS > P520 D P520 D > STEERING COLUMN
Back to

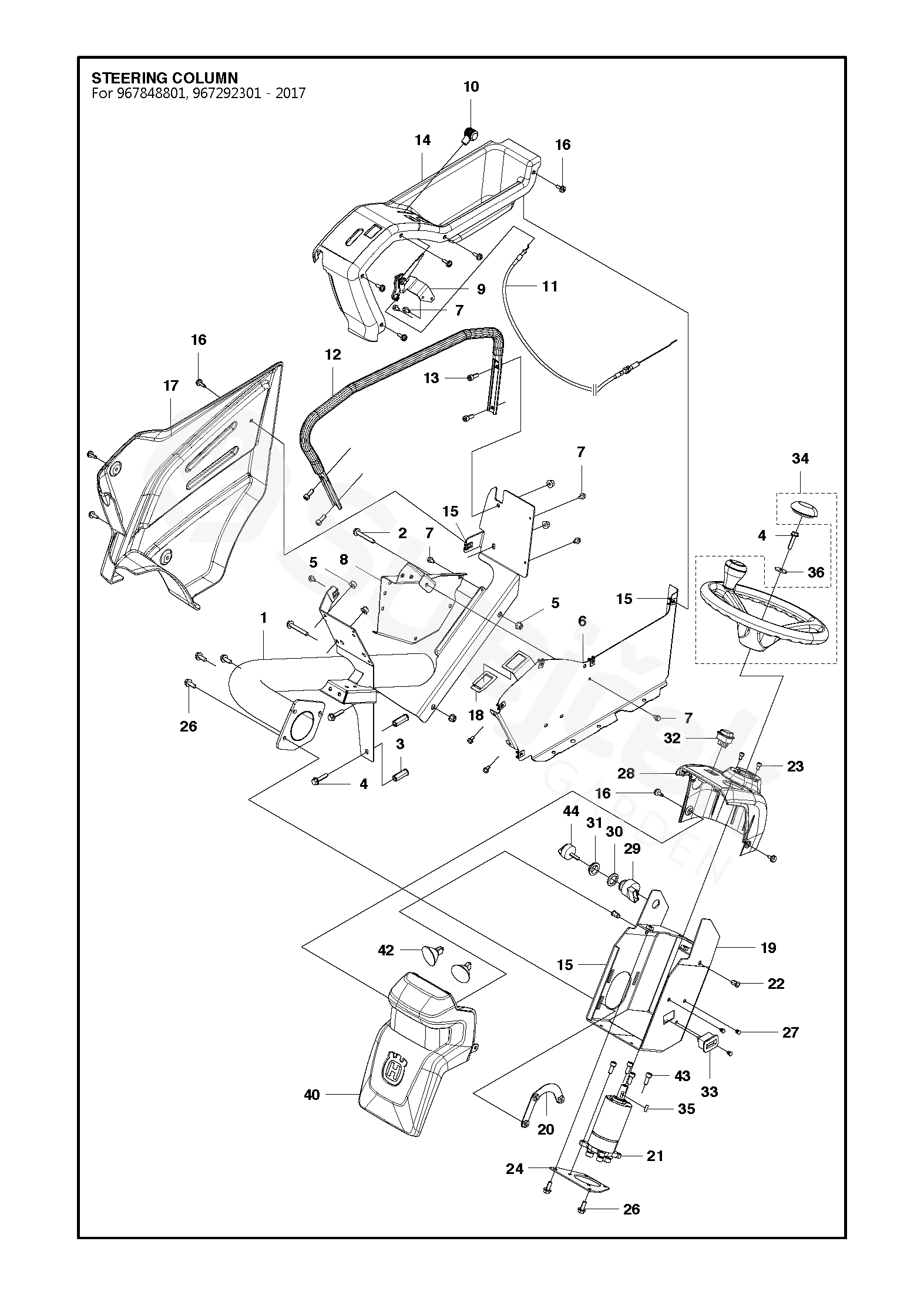

STEERING COLUMN
P520 D P520 D
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For P520 D
1 CONSOLE 579613401
2 SCREW EHHFM 506570107
3 HEXAGON NUT 576434201
4 SCREW EHHFM 506570106
5 NUT FLANGE 576645704
6 PANEL 575882801
7 SCREW EHHFT 725236461
8 BRACKET 576256201
9 THROTTLE CONTROL 576806801
10 KNOB 506889101
11 WIRE 576656501
12 HANDLE 575882901
13 SCREW IHSCM 725545101
14 PANEL 577488001
15 MATICE 535429101
16 SCREW 574856202
17 COVER 575883601
18 LOCKWASHER 544404301
19 BRACKET 582056401
20 SHEET 576444301
21 POWER STEERING 589651201
22 BLIND RIVET NUT 506916204
23 SCREW 522557301
24 BRACKET 576545001
26 SCREW EHHFM 506570104
27 INSERT 580272901
28 COVER 501445101
29 KEY SWITCH
For 966607301 		535474901
30 WASHER 535475001
31 NUT 535476101
32 SWITCH
Light Switch 		502655701
33 HOUR METER 577092701
34 STEERING WHEEL 544291401
35 WOODRUFF KEY 735881200
36 BELT COVER 544221601
40 COVER 501445001
42 LAMP
LED 		582214201
43 SCREW IHSCM 725544901
44 IGNITION KEY 535476001
