Spare parts > Husqvarna > RIDERS > R422 Ts R 422 Ts > ELECTRICAL
Back to
ELECTRICAL

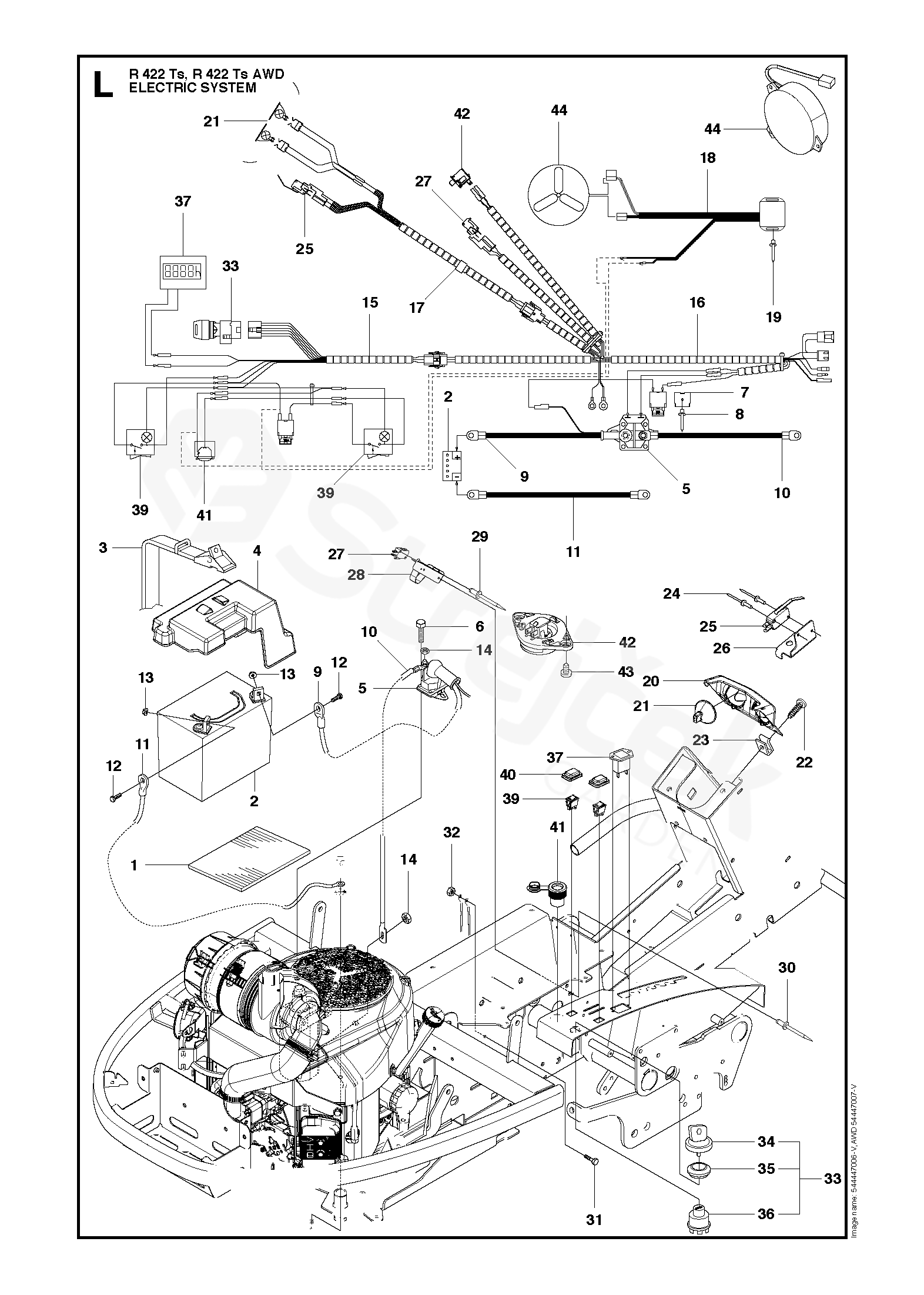

R422 Ts R 422 Ts
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For R 422 Ts
1 BATTERY MAT 535441101
2 BATTERY 577041601
3 BELT 506836802
4 COVER
For 966632301 		504639202
5 RELAY 544439801
6 SCREW EHHFT 725236461
7 CLIP
For 966632301 		501007501
8 BLIND RIVET
For 966632301 		722782209
9 CABLE 578896501
10 CABLE 576183901
11 CABLE 576183801
12 SCREW EHHM 522622101
13 NUT 522624301
14 MATICE 506899801
15 WIRING
For 9966632301, <2011-03 		577013701
16 WIRING
For 966632301,<2011-03 		577013401
17 WIRING 577013501
18 THERMOSTAT ASSY
PF21 AWD 		504639401
19 BLIND RIVET
PF21 AWD 		722782902
20 HOUSING 535446701
21 LAMP 535446801
22 SCREW 535415619
23 SPEED NUT 506892001
24 NÝT 544440701
25 SWITCH 574316101
26 BRACKET 544415701
27 SWITCH 574316001
28 PLATE SPRING 535457001
29 NÝT 544440701
30 BLIND RIVET 722783902
31 SCREW 725232551
32 HEXAGON NUT 731231401
33 KEY SWITCH 535474901
34 IGNITION KEY 535476001
35 WASHER 535475001
36 KEY SWITCH 504851701
37 HOUR METER 577092701
39 SWITCH 535462301
40 SHIELDING MEDIUM 535462401
41 POWER SOCKET 535474801
42 SWITCH 582876601
43 SCREW IHSCT 503218816
44 FAN
PF21 AWD 		504629301
