Spare parts > Husqvarna > ICE AUGERS > ST 227 ST 227, 97046900100, 2020-05 > "CHASSIS, ENGINE & PULLEYS"
Back to

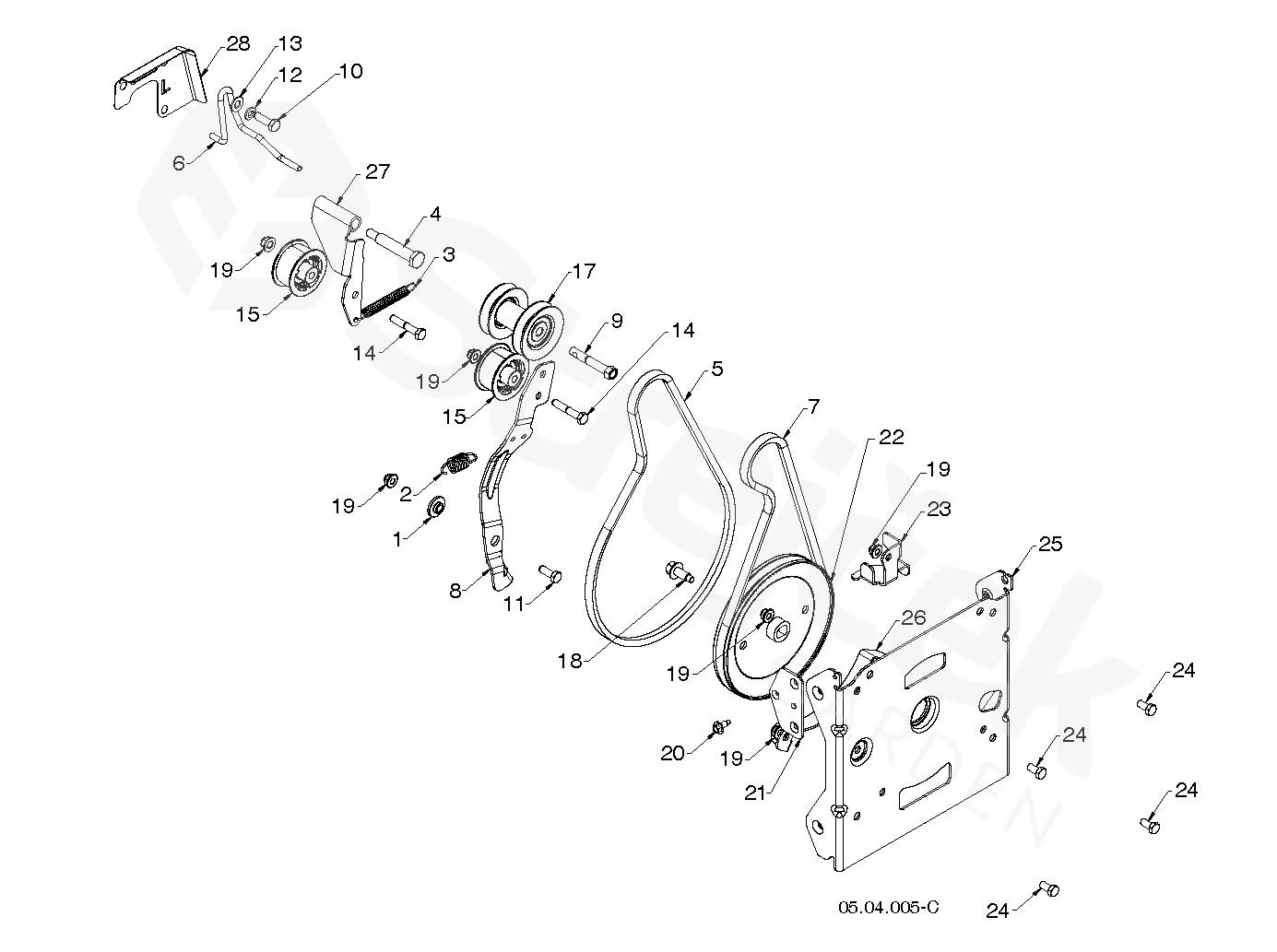

"CHASSIS, ENGINE & PULLEYS"
ST 227 ST 227, 97046900100, 2020-05
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ST 227, 97046900100, 2020-05
1 BUSHING 587343701
2 PRUŽINA 587031201
3 PRUŽINA 580753001
4 BOLT 581413801
5 ŘEMEN 582640701
6 VODÍTKO 598644401
7 BELT 501818201
8 BRACKET 580831106
9 BOLT 582388401
10 SCREW 874610516
11 BOLT 596322201
12 WASHER 596238801
13 WASHER 596204101
14 BOLT 874760528
15 PULLEY 581141402
17 PULLEY 589262203
18 SCREW 595517901
19 NUT 594944401
20 SCREW 585517801
21 BRACKET 590044602
22 PULLEY 590699201
23 GUIDE 587587202
24 SCREW 596031601
25 BRACKET 581592502
26 BRACKET 581632002
27 ARM 593192502
28 COVER 598711902
