Spare parts > Husqvarna > ICE AUGERS > ST 327 ST327, 96193012700, 2018-03 > "CHASSIS, ENGINE & PULLEYS"
Back to

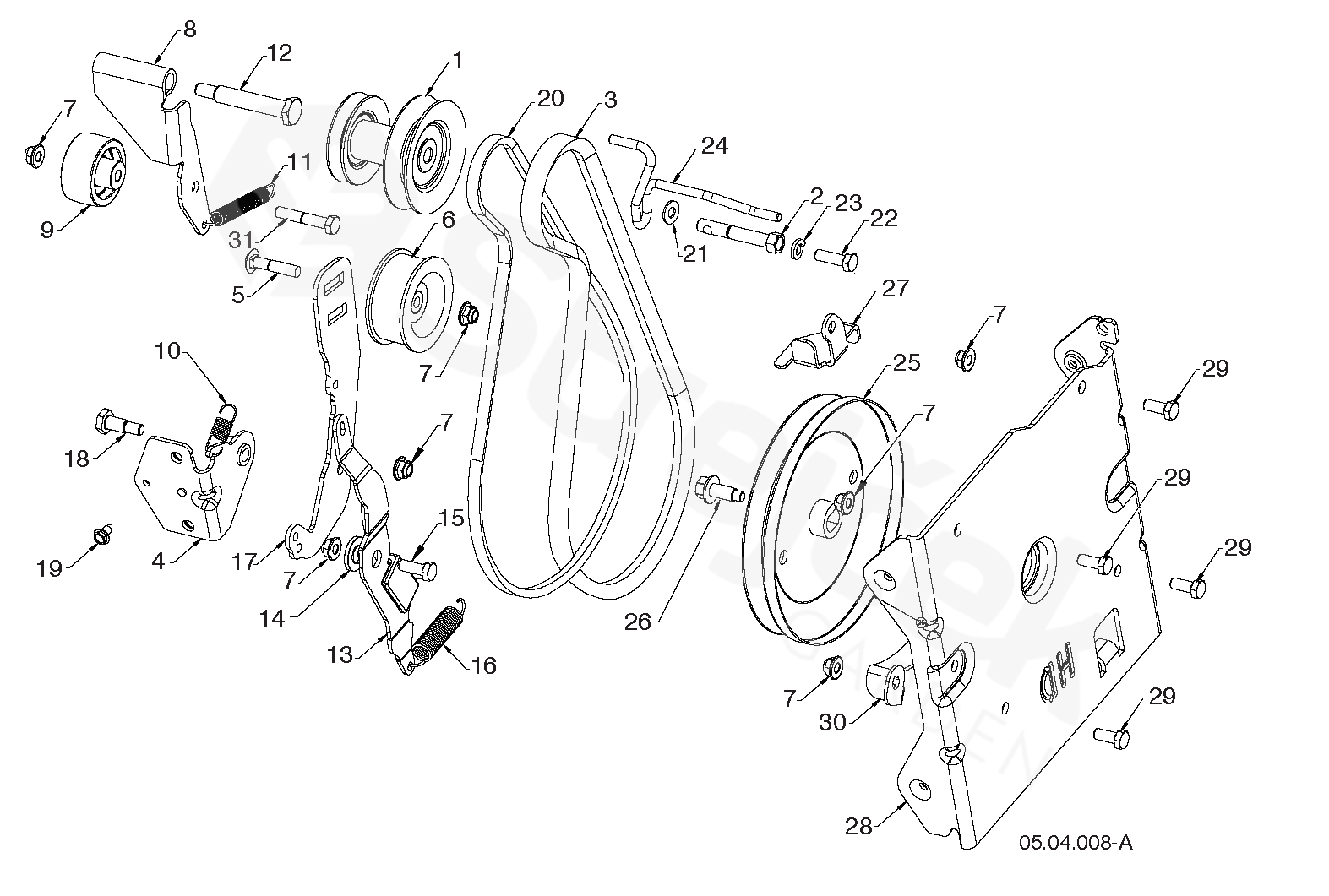

"CHASSIS, ENGINE & PULLEYS"
ST 327 ST327, 96193012700, 2018-03
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ST327, 96193012700, 2018-03
1 PULLEY 589262201
2 BOLT 582388401
3 BELT 589262602
4 BRACKET 589263402
5 BOLT 589284501
6 PULLEY
PULLEY 		589262701
7 MATICE 532427942
8 ARM 593192502
9 PULLEY 586880201
10 SPRING 589263701
11 PRUŽINA 580753001
12 BOLT 581413801
13 ARM 579763301
14 BUSHING 587343701
15 BOLT 874760514
16 SPRING 579763501
17 ARM 589262902
18 SCREW 589263601
19 SCREW 817060408
20 BELT 582640702
21 PODLOŽKA 819111216
22 SCREW 874610512
23 PODLOŽKA 810040500
24 GUIDE 589262401
25 PULLEY 589263801
26 SCREW 583814901
27 GUIDE 589262505
28 BRACKET 501595402
29 SCREW 874780512
30 BRACKET 581632002
31 BOLT 874760528
