Spare parts > Husqvarna > ICE AUGERS > ST 330 ST 330, 96193012801, 2019-03 > CHASSIS, ENGINE & PULLEYS
Back to

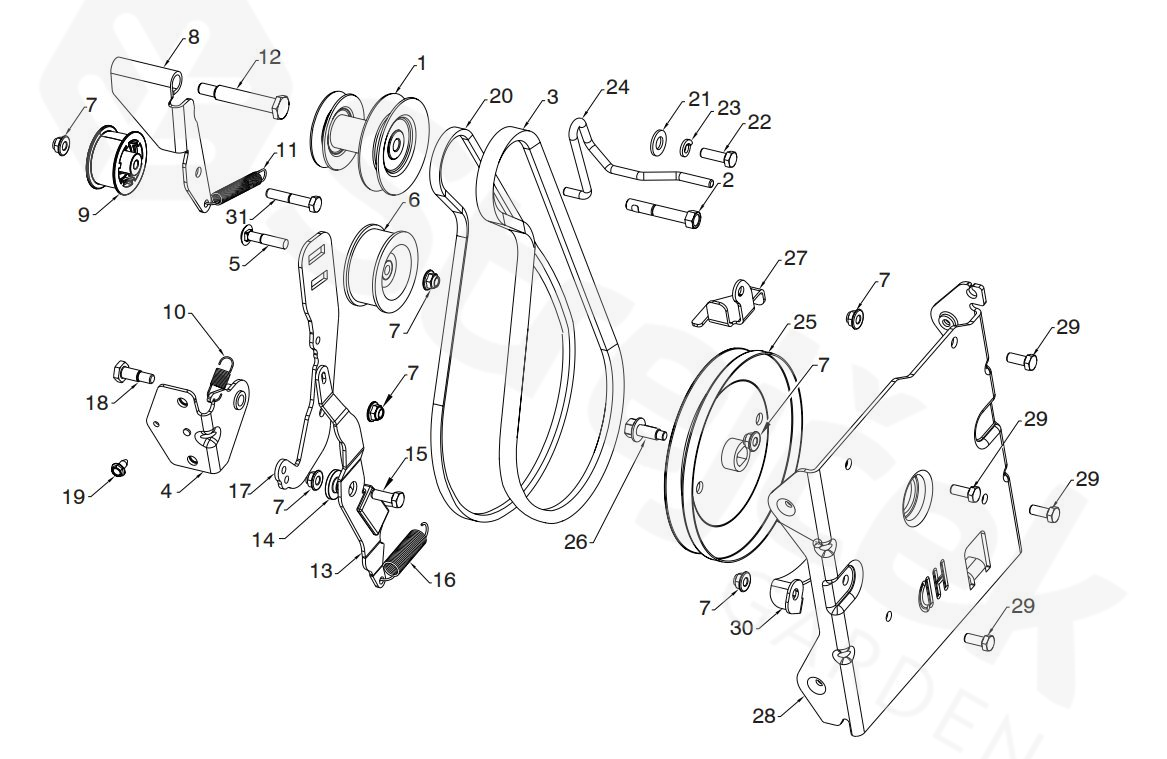

CHASSIS, ENGINE & PULLEYS
ST 330 ST 330, 96193012801, 2019-03
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ST 330, 96193012801, 2019-03
1 PULLEY 589262201
2 BOLT 582388401
3 BELT 589262602
4 BRACKET 589263402
5 NUT 594944401
6 PULLEY 589262702
7 MATICE 532427942
8 BRACKET 589263402
9 PULLEY 581141402
10 SPRING 589263701
11 PRUŽINA 580753001
12 BOLT 581413801
13 ARM 579763301
14 BUSHING 587343701
15 BOLT 596322201
16 SPRING 579763501
17 ARM 589262902
18 SCREW 589263601
19 SCREW 817060408
20 BELT 582640702
21 WASHER 596204101
22 SCREW 874610512
23 WASHER 596238801
24 GUIDE 589262505
25 PULLEY 589263801
26 SCREW 595517901
27 GUIDE 589262505
28 BRACKET 501595402
29 SCREW 874780512
30 BRACKET 581632002
31 BOLT 874760528
