Spare parts > Husqvarna > ICE AUGERS > ST 427T ST427T, 96193013302, 2020-05 > CHASSIS, ENGINE & PULLEYS
Back to

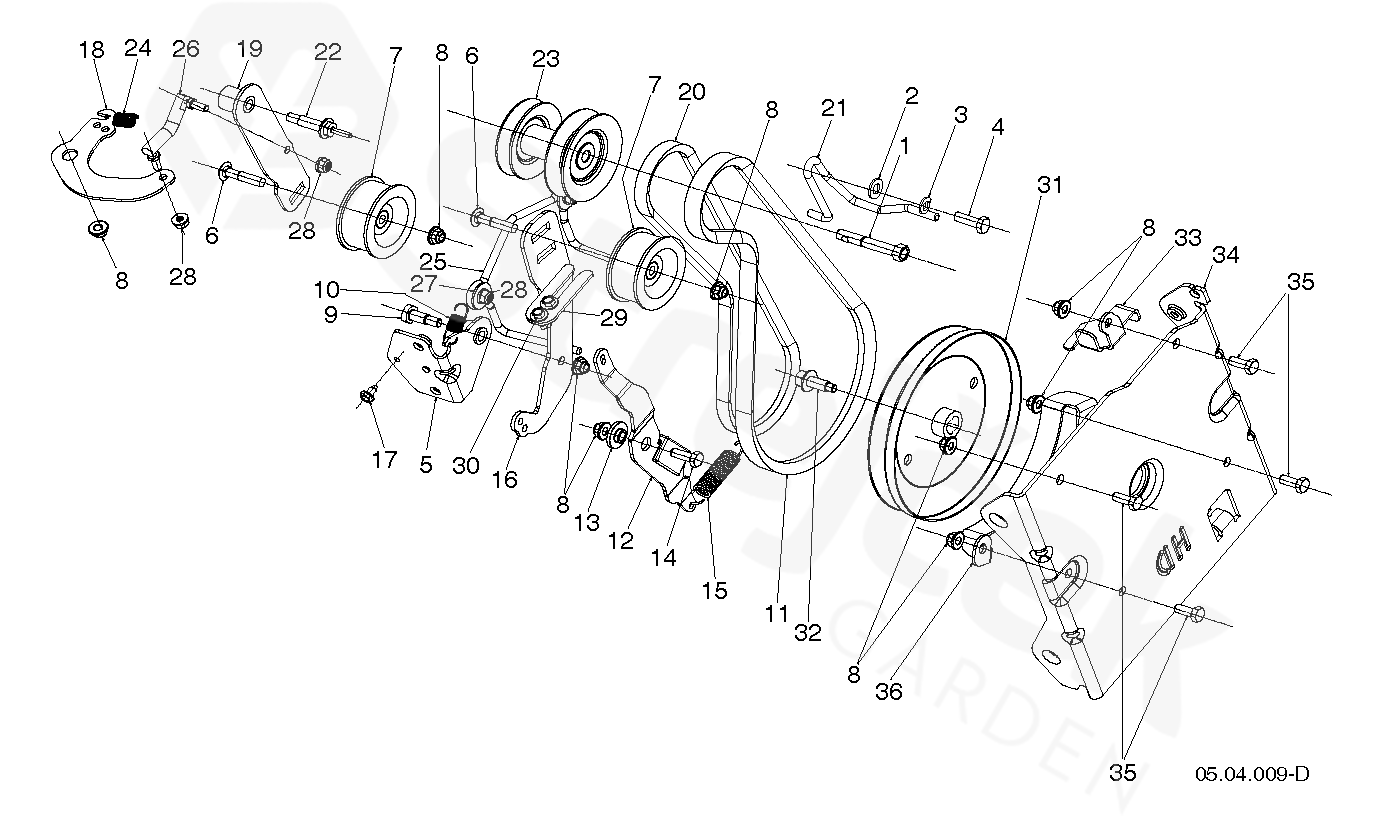

CHASSIS, ENGINE & PULLEYS
ST 427T ST427T, 96193013302, 2020-05
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ST427T, 96193013302, 2020-05
1 BOLT 582388401
2 WASHER 596204101
3 WASHER 596238801
4 SCREW 874610516
5 BRACKET 589263402
6 BOLT 589284501
7 PULLEY 589262702
8 NUT 594944401
9 SCREW 589263601
10 SPRING 589263701
11 BELT 589262602
12 ARM 579763301
13 BUSHING 587343701
14 BOLT 596322201
15 SPRING 579763501
16 ARM 589262902
17 SCREW 817060408
18 BELLCRANK 589289902
19 ARM 589290502
20 BELT 589290601
21 GUIDE 598644501
22 GUIDE 589290801
23 PULLEY 589262202
24 SPRING 589481601
25 GUIDE 589760701
26 LINK ASSY 590720701
27 PODLOŽKA 513918900
28 NUT 582478602
29 GUIDE 592917802
30 SCREW 585517801
31 PULLEY 589263801
32 SCREW 595517901
33 GUIDE 589262505
34 BRACKET 501595402
35 SCREW 596030501
36 BRACKET 581632002
