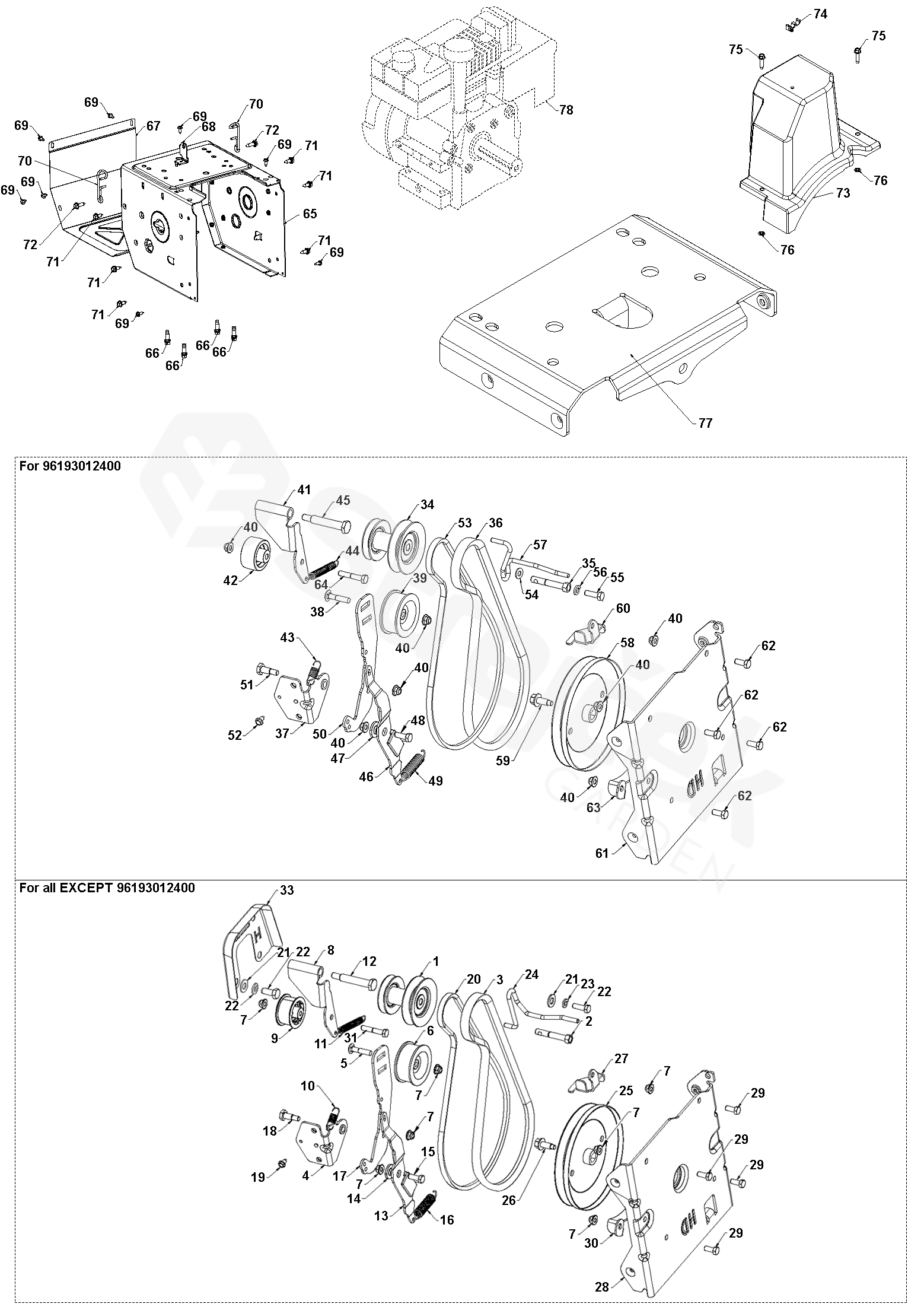

Spare parts - Partlist - ST 330 ST 330 - CHASSIS, ENGINE & PULLEYS

Everything for your machines

ST 330 ST 330

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For ST 330

1	PULLEY	589262201
2	BOLT	582388401
3	BELT	589262602
4	BRACKET	589263402
5	BOLT	589284501
6	PULLEY For 97046960100, 97046970100	589262702
7	NUT	594944401
8	ARM	593192502
9	PULLEY	581141402
10	SPRING	589263701
11	PRUŽINA	580753001
12	BOLT	581413801
13	ARM	579763301
14	BUSHING	587343701
15	BOLT	596322201
16	SPRING	579763501
17	ARM For 97046960100, 97046970100	589262902
18	SCREW	589263601
19	SCREW	817060408
20	BELT	582640702
21	WASHER	596204101
22	SCREW	874610512
23	WASHER	596238801
24	GUIDE	597207601
25	PULLEY	589263801
26	SCREW	595517901
27	GUIDE	589262505
28	BRACKET	501595402
29	SCREW	596030501
30	BRACKET	581632002
31	BOLT	874760528
32	SCREW	874610516
33	COVER	598712002
34	PULLEY	589262201
35	BOLT	582388401
36	BELT	589262602
37	BRACKET	589263402
38	NUT For 96193012801	594944401
39	PULLEY	589262702
40	NUT For 96193012501	594944401
41	BRACKET For 96193012800	589263402
42	PULLEY For 96193012800	581141402
43	SPRING	589263701
44	PRUŽINA	580753001
45	BOLT	581413801
46	ARM	579763301
47	BUSHING	587343701
48	BOLT For 96193012501, 96193012801, 96193012800	596322201
49	SPRING	579763501
50	ARM	589262902
51	SCREW	589263601
52	SCREW	817060408
53	BELT	582640702
54	WASHER	596204101
55	SCREW	874610512
56	WASHER	596238801
57	GUIDE For 96193012800	597207601
58	PULLEY	589263801
59	SCREW	595517901
60	GUIDE	589262505
61	BRACKET	501595402
62	SCREW	596030501
63	BRACKET	581632002
64	BOLT	874760528
65	FRAME	589264705
66	BOLT	532150406
67	COVER	580839505
68	BRACKET	501060403
69	SCREW	582906901
70	OPĚRNÁ MISKA	588954501
71	BOLT	532428867
72	SCREW	593337201
73	COVER	587105501
74	CLIP	532145006
75	SCREW For all EXCEPT 97046970100, 97046960100, 97046970101, BOLT	585691101
76	MATICE For all EXCEPT 97046970100, 97046960100, 97046970101, PALNUT	532423062
77	BRACKET For 96193012800	583940502
78	ENGINE For EU 97046970101	596959102
