Spare parts > Gardena > Hedge Trimmers > ComfortCut 550/50 ComfortCut 550/50 > COMPLETE PRODUCT
Back to
COMPLETE PRODUCT

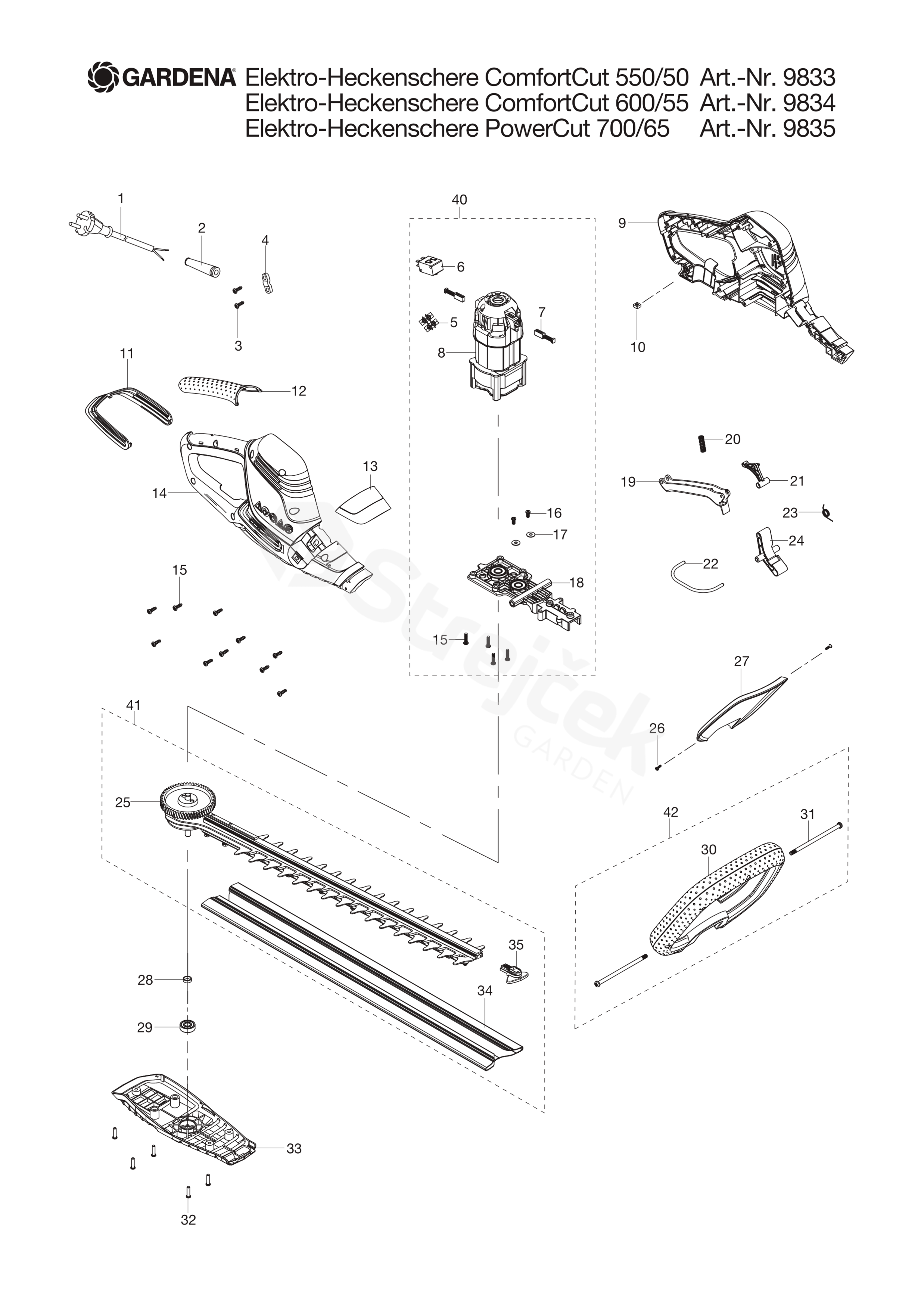

ComfortCut 550/50 ComfortCut 550/50 (967079301 - 4078500022774)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ComfortCut 550/50
1 CABLE 9833-00.600.19
9833-00.600.19, EU Version 		582169501
2 GROMMET 9830-00.600.14
9830-00.600.14 		588546701
3 SCREW 9830-00.600.26
9830-00.600.26 		588691201
4 CABLE CLAMP 9830-00.600.18
9830-00.600.18 		588546501
5 TERMINAL BLOCK 9833-00.600.21
9833-00.600.21 		582169701
6 SWITCH
9833-00.600.33 		599702501
10 SQUARE NUT 9833-00.600.30
9833-00.600.30 		582276301
11 COVER 9833-00.600.06
9833-00.600.06 		582168101
12 GRIP 9833-00.600.08
9833-00.600.08 		582168301
13 COVER 9833-00.600.05
9833-00.600.05 		582168001
15 SCREW 9830-00.600.28
9830-00.600.28 		588691401
16 SCREW 9833-00.625.04
9833-00.625.04 		582221501
17 WASHER 9833-00.625.03
9833-00.625.03 		582221401
19 LEVER 9833-00.600.11
9833-00.600.11 		582168701
20 SPRING 9833-00.600.18
9833-00.600.18 		582169401
21 LEVER 9833-00.600.09
9833-00.600.09 		582168501
22 CONNECTING ROD 9833-00.600.13
9833-00.600.13 		582168901
23 SPRING 9833-00.600.17
9833-00.600.17 		582169301
24 LEVER 9833-00.600.10
9833-00.600.10 		582168601
26 SCREW 9833-00.600.29
9833-00.600.29 		501805701
27 GUARD 9833-00.600.07
9833-00.600.07 		582168201
28 WASHER 9833-00.600.16
9833-00.600.16 		582169201
29 BEARING 9830-00.620.03
9830-00.620.03 		588547701
31 SCREW 9833-00.630.08
9833-00.630.08 		582160801
32 SCREW 9833-00.600.26
9833-00.600.26 		582232601
33 COVER PLATE 9833-00.640.01
9833-00.640.01 		582167301
34 BLADE 9833-00.600.12
9833-00.600.12 		582168801
35 BLADE 9833-00.615.06
9833-00.615.06 		582158801
40 MOTOR ASSY 9833-00.902.00
9833-00.902.00 		590181801
41 CUTTING SYSTEM 9833-00.901.00
9833-00.901.00 		590181501
42 HANDLE ASSY 9833-00.630.00
9833-00.630.00 		582160001
