Spare parts > Husqvarna > ICE AUGERS > ST 224 ST 224 > CHASSIS, ENGINE AND PULLEYS
Back to

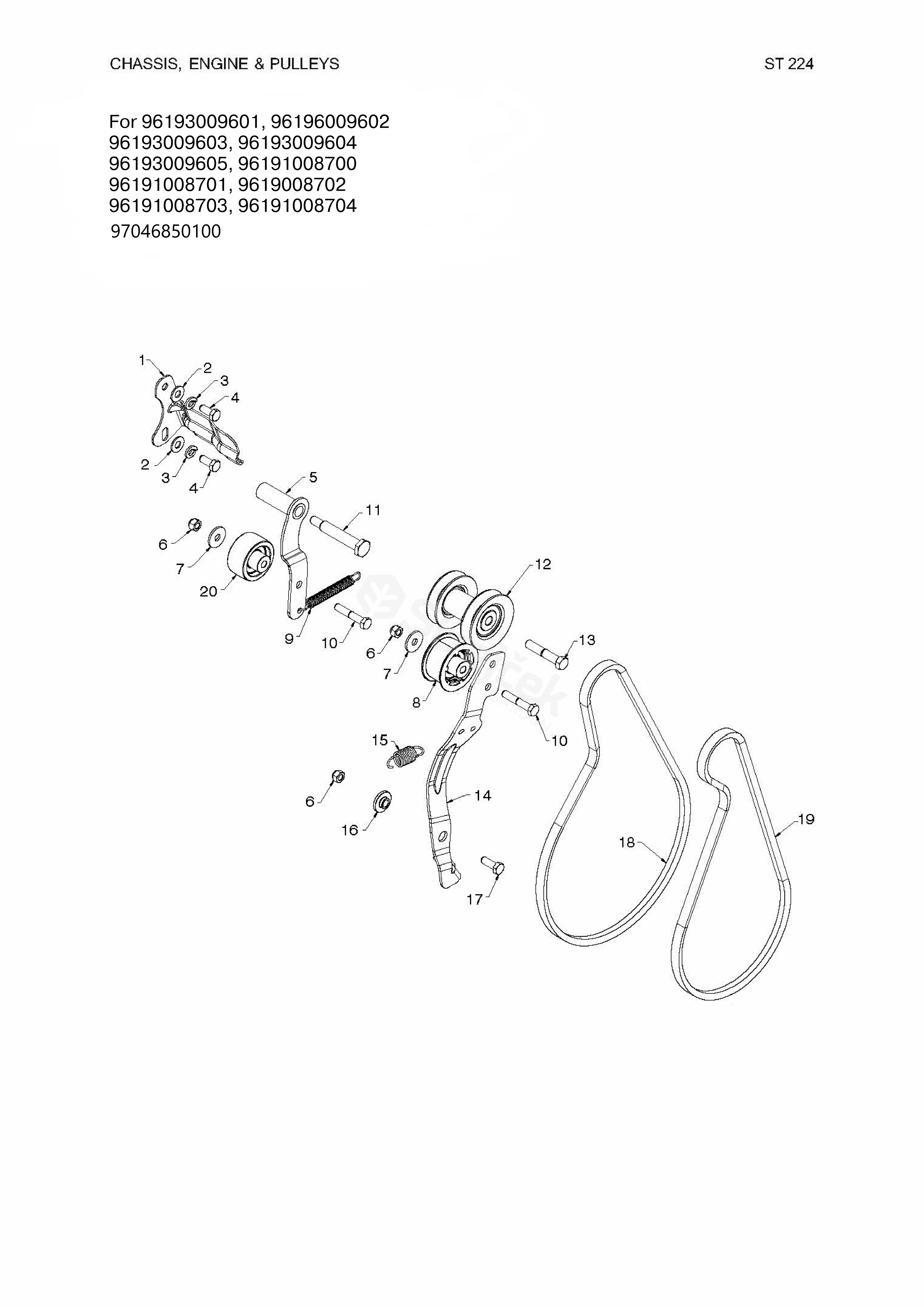

CHASSIS, ENGINE AND PULLEYS
ST 224 ST 224 (970528601 - 7392930735958, 970468601 - 7392930512313, 961910087 - 7393089117114)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ST 224
1 BRACKET 588492802
2 WASHER 596204101
3 WASHER 596238801
4 SCREW 874610512
5 ARM 593192502
6 LOCK NUT 596040501
7 PODLOŽKA 532059289
8 PULLEY 581141402
9 PRUŽINA 580753001
10 BOLT 874760528
11 BOLT 581413801
12 PULLEY 587893703
13 BOLT
For 96191008702, 96193009603, 96193009604, 96191008703. 96193009605, 96191008704 		582388401
14 BRACKET 580831106
15 PRUŽINA 587031201
16 BUSHING 587343701
17 BOLT 596322201
18 BELT 584216102
19 BELT 501818201
20 PULLEY 586880202
