Spare parts > Husqvarna > ICE AUGERS > ST 227P ST 227P > CHASSIS, ENGINE AND PULLEYS
Back to

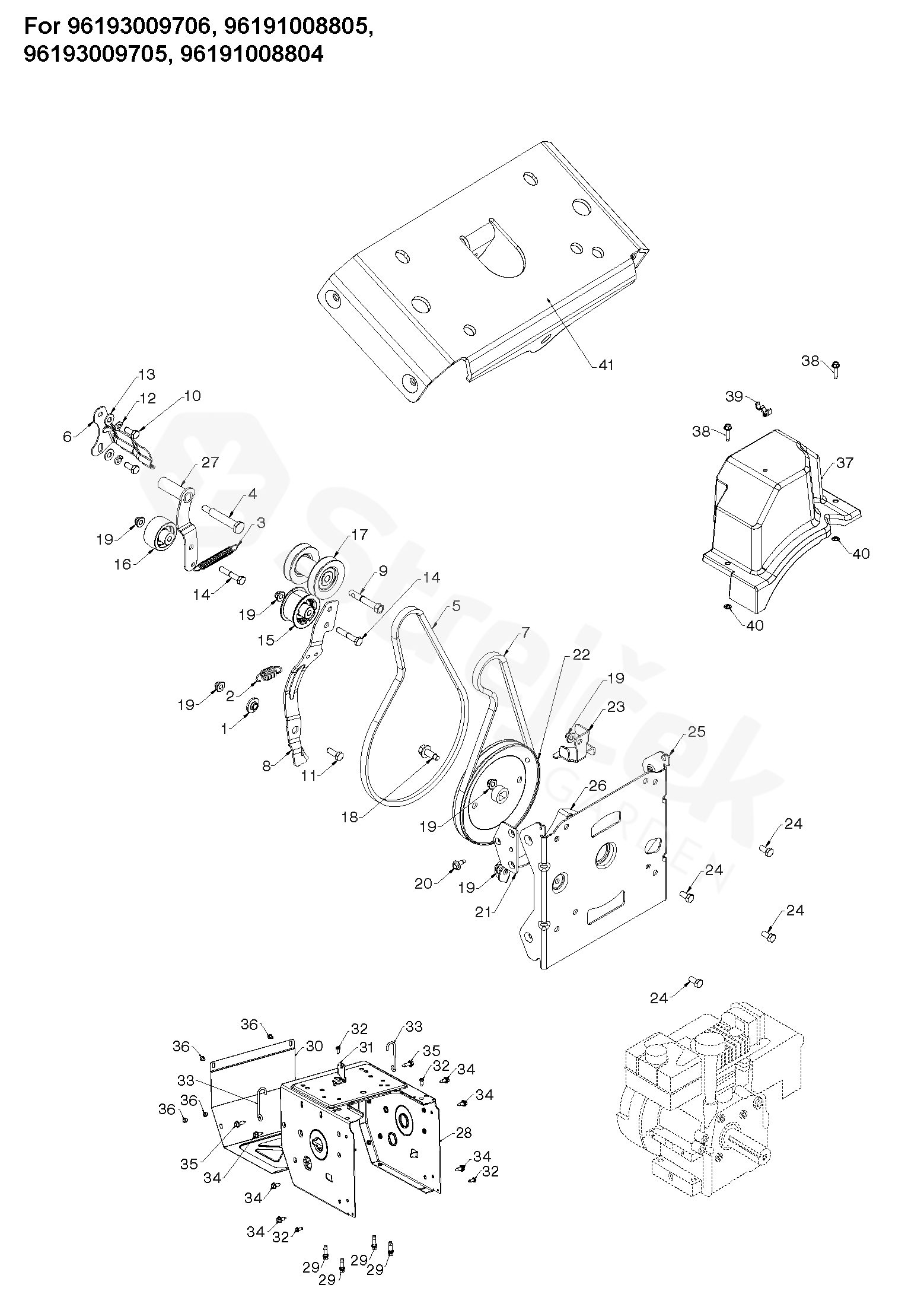

CHASSIS, ENGINE AND PULLEYS
ST 227P ST 227P (961910088 - 7393089117121)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ST 227P
1 BUSHING 587343701
2 PRUŽINA 587031201
3 PRUŽINA 580753001
4 BOLT 581413801
5 BELT 584216102
6 BRACKET 588492802
7 BELT 501818201
8 BRACKET 580831106
9 BOLT 582388401
10 SCREW 874610512
11 BOLT
For 96193009706, 96191008805 		596322201
12 WASHER
For 96193009706, 96191008805 		596238801
13 PODLOŽKA
For 96191008804, 96193009705 		819111216
14 BOLT 874760528
15 PULLEY 581141402
16 PULLEY 586880202
17 PULLEY 587893703
18 SCREW
For 96193009706, 96191008805 		595517901
19 MATICE 532427942
20 SCREW 585517801
21 BRACKET 590044602
22 PULLEY 590699201
23 GUIDE 587587202
24 BOLT 532163183
25 BRACKET 581592502
26 BRACKET 581632002
27 ARM 581338203
28 FRAME 589264705
29 BOLT 532150406
30 COVER 580839505
31 BRACKET 501060403
32 SCREW
For 96193009705, 96191008804, 96191008803, 96193009704 		582906901
33 OPĚRNÁ MISKA 588954501
34 BOLT 532428867
35 SCREW 593337201
36 SCREW
For 96193009705, 96191008804, 96191008803, 96193009704 		582906901
37 COVER 587105401
38 DUMMY PART 900000002
39 CLIP 532145006
40 DUMMY PART 900000002
41 BRACKET 583940502
