Spare parts > Husqvarna > ICE AUGERS > ST 230P ST 230P > CHASSIS, ENGINE AND PULLEYS
Back to

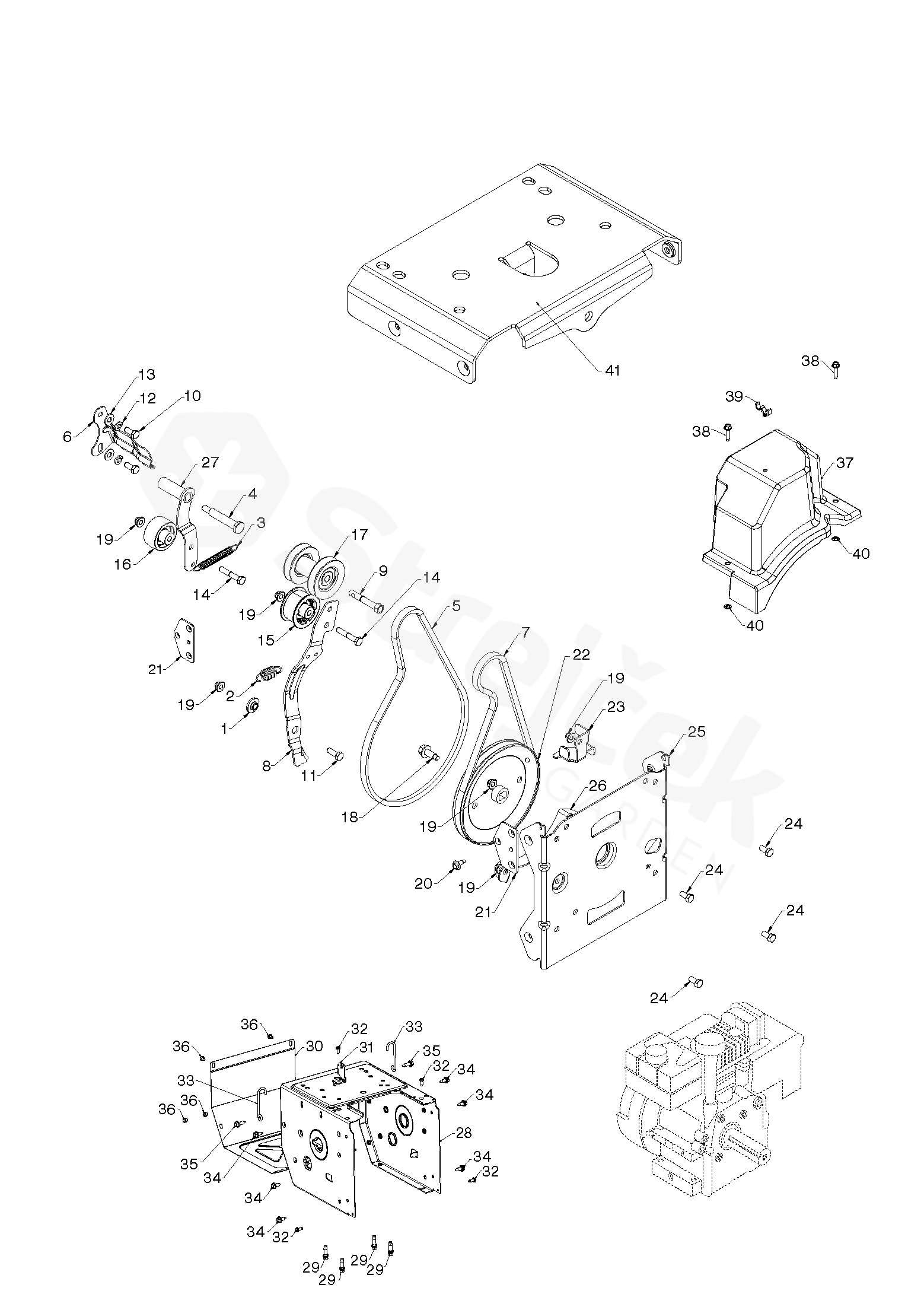

CHASSIS, ENGINE AND PULLEYS
ST 230P ST 230P (961910090 - 7393089117138)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ST 230P
0 ENGINE
For 97046810100, (See Husqvarna Engine IPL for service parts) 		598609803
1 BUSHING 587343701
2 PRUŽINA 587031201
3 PRUŽINA 580753001
4 BOLT 581413801
5 BELT 585829902
6 BRACKET 588492802
7 BELT 501818202
8 BRACKET 580831106
9 BOLT 582388401
10 SCREW 874610512
11 BOLT 596322201
12 WASHER 596238801
13 PODLOŽKA
For all EXCEPT 96191009005, 96193010106 		819111216
14 BOLT 874760528
15 PULLEY 581141402
16 PULLEY 586880202
17 PULLEY 587893703
18 SCREW 595517901
19 MATICE 532427942
20 SCREW 585517801
21 BRACKET 590044602
22 PULLEY
For 96193010105, 96193010106, 96191009005, 96191009004, 96191001500 		590699201
23 GUIDE 587587202
24 BOLT 532163183
25 BRACKET 581592502
26 BRACKET 581632002
27 ARM 581338203
28 FRAME 589264705
29 BOLT 532150406
30 COVER 580839505
31 BRACKET 501060403
32 SCREW 582906901
33 OPĚRNÁ MISKA 588954501
34 BOLT 532428867
35 SCREW 593337201
36 SCREW 582906901
37 COVER 587105501
38 DUMMY PART
For 96191009005 		900000002
39 CLIP 532145006
40 DUMMY PART
For 96191009005 		900000002
41 BRACKET 585546002
