Husqvarna ST 330
CHASSIS, ENGINE AND PULLEYS
Husqvarna ST 330

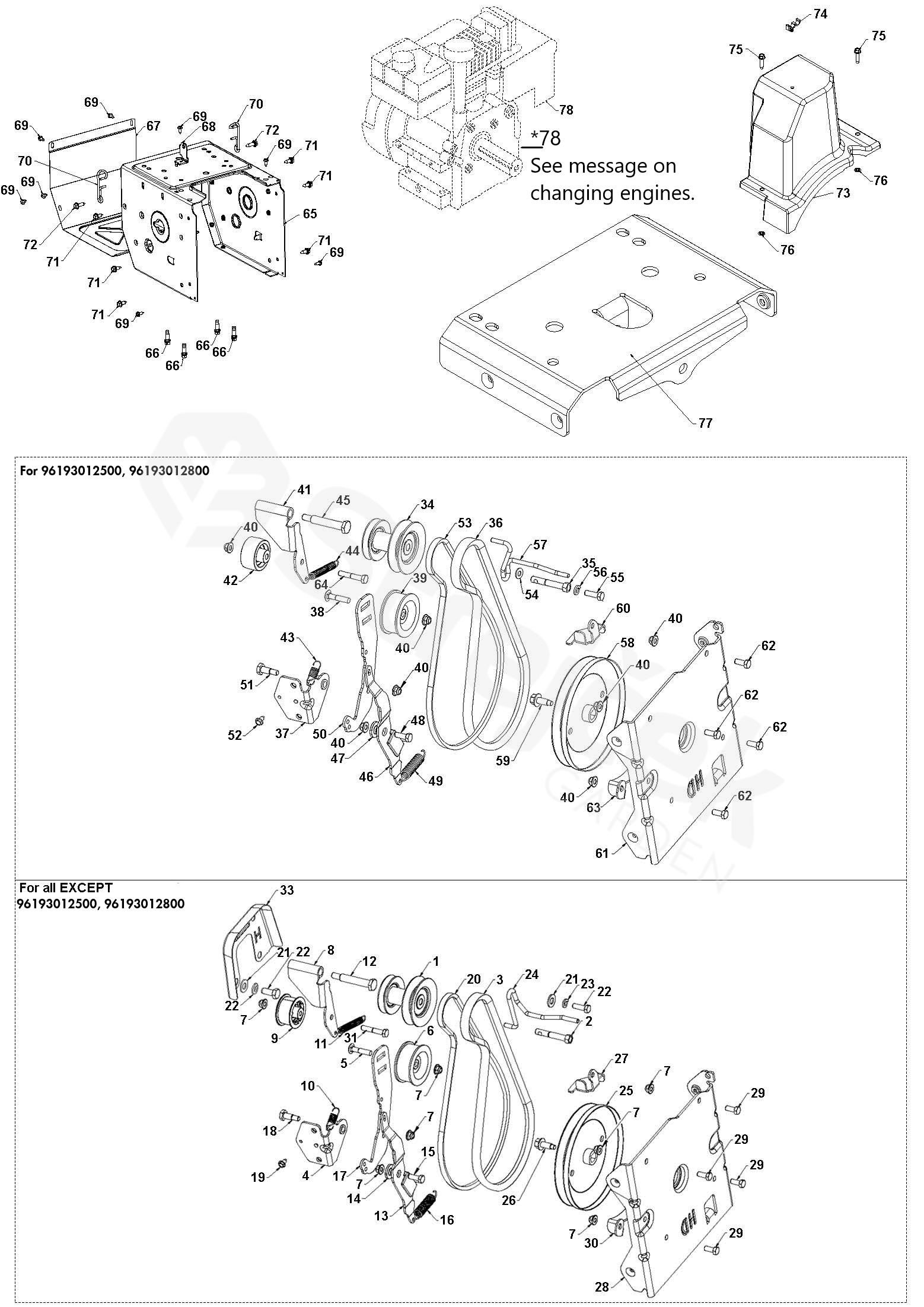

Husqvarna ST 330 (970529101 - 7392930736160, 970469701 - 7392930513037)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Husqvarna ST 330
1
PULLEY
For 96193012501, 96193012801, 97046970100, 97046970101, 97046960100
589262201
2
BOLT
For 97046960100, 97046970101, 96193012501, 97046970100, 96193012801
582388401
3
BELT
589262602
4
BRACKET
For all except 97052910100, 97071500100, 97052910200
589263402
5
BOLT
589284501
6
PULLEY
589262702
7
NUT
594944401
8
ARM
593192502
9
PULLEY
581141402
10
SPRING
589263701
11
PRUŽINA
580753001
12
BOLT
581413801
13
ARM
579763301
14
BUSHING
587343701
15
BOLT
596322201
16
SPRING
579763501
17
ARM
589262902
18
SCREW
589263601
19
SCREW
817060408
20
BELT
582640702
21
WASHER
596204101
22
SCREW
874610512
23
WASHER
596238801
24
GUIDE
597207601
25
PULLEY
For all except 97052910100, 97071500100, 97052910200
589263801
26
SCREW
595517901
27
GUIDE
589262505
28
BRACKET
501595403
29
SCREW
596030501
30
BRACKET
581632002
31
BOLT
874760528
32
SCREW
874610516
33
COVER
598712002
34
PULLEY
589262201
35
BOLT
582388401
36
BELT
589262602
37
BRACKET
589263402
38
BOLT
589284501
39
PULLEY
589262702
40
NUT
594944401
41
ARM
For 96193012500, 96193012501
593192502
42
PULLEY
For 96193012500
586880201
43
SPRING
589263701
44
PRUŽINA
580753001
45
BOLT
581413801
46
ARM
579763301
47
BUSHING
587343701
48
BOLT
874760514
49
SPRING
579763501
50
ARM
589262902
51
SCREW
589263601
52
SCREW
817060408
53
BELT
582640702
54
WASHER
596204101
55
SCREW
874610512
56
WASHER
596238801
57
GUIDE
589262401
58
PULLEY
589263801
59
SCREW
595517901
60
GUIDE
589262505
61
BRACKET
501595402
62
SCREW
596030501
63
BRACKET
581632002
64
BOLT
874760528
65
FRAME
589264705
66
BOLT
532150406
67
COVER
580839505
68
BRACKET
501060403
69
SCREW
582906901
70
OPĚRNÁ MISKA
588954501
71
BOLT
532428867
72
SCREW
593337201
73
COVER
585771101
74
CLIP
532145006
75
SCREW
585691101
76
MATICE
532423062
77
BRACKET
For all EXCEPT 96193012800
585546002
78
ENGINE
For 97052910200, (See Husqvarna Engine IPL for service parts)
598609903
