Spare parts
Everything for your machines
Spare parts
>
Husqvarna
>
TRACTORS/RIDE MOWERS
>
LTH2142 D LTH2142 D, 96041017200, 2010-02
>

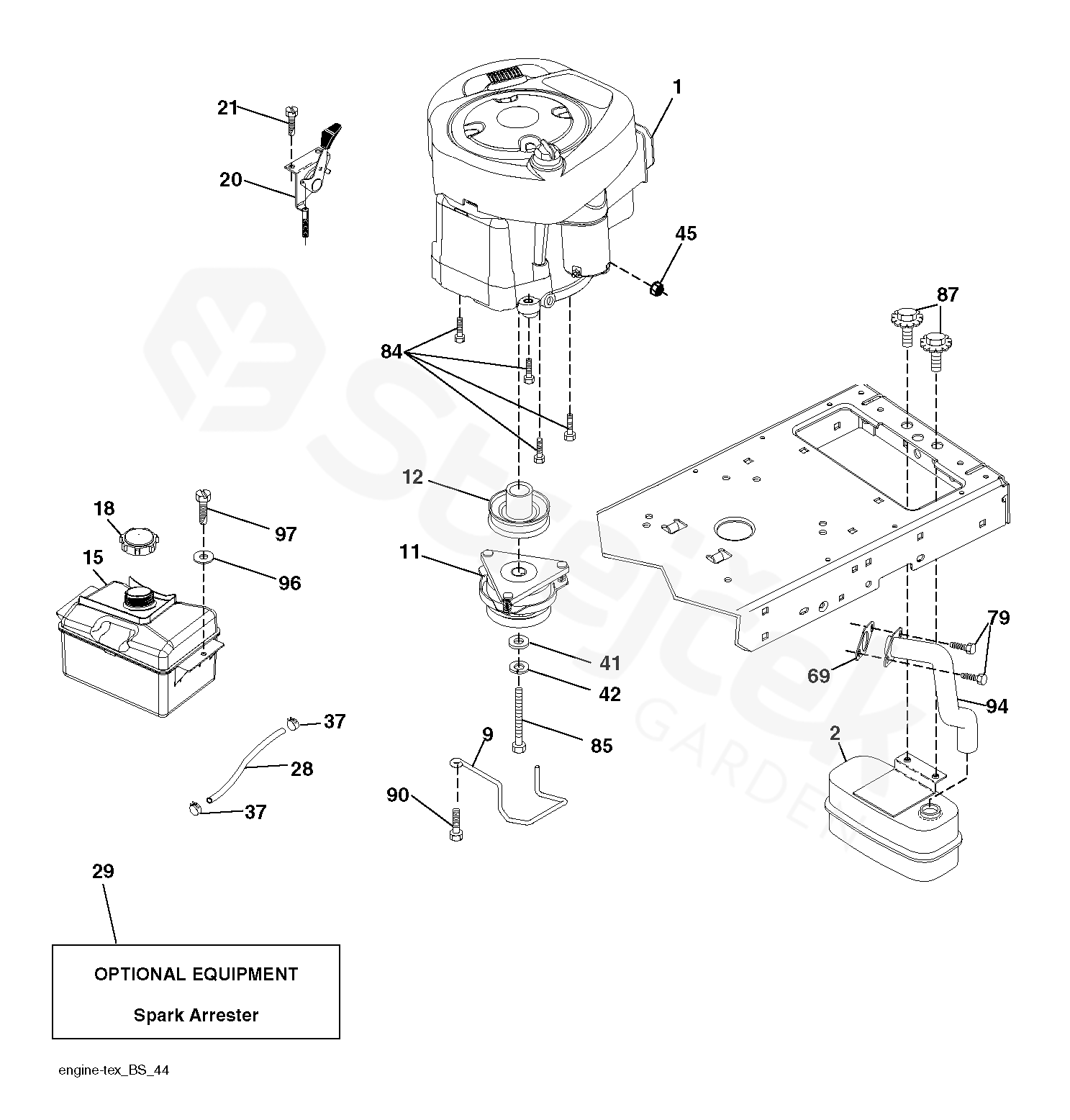

ENGINE
Back to
LTH2142 D
LTH2142 D, 96041017200, 2010-02
ENGINE
LTH2142 D
LTH2142 D, 96041017200, 2010-02
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
LTH2142 D, 96041017200, 2010-02
1
W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
Engine Briggs 33M777-1400-B1
000000000
2
MUFFLER EXHAUST
532188655
9
BELT GUIDE
532194320
11
CLUTCH
532180505
12
PULLEY
532405097
15
FUEL TANK
532407545
18
HUB CAP
532430220
20
CONTROL
532183897
21
SCREW
532416358
28
HADICE
532137040
29
SPARK ARRESTER KIT
532137180
37
HADICOVÁ SVĚRKA
532123487
41
WASHER
532126197
42
WASHER
810040700
45
MATICE
873510400
69
GASKET
532165291
79
SCREW
532192334
84
SCREW
817060620
85
BOLT
532173937
87
BOLT
532171877
90
SCREW
817000616
94
EXHAUST.TUBE.B&S.28/31*SUBS/2*
532405450
96
PODLOŽKA
819091416
97
SCREW
817670412
