Spare parts > Husqvarna > TRACTORS/RIDE MOWERS > YTH2754 YTH2754T, 96041006203, 2010-04 > ENGINE
Back to

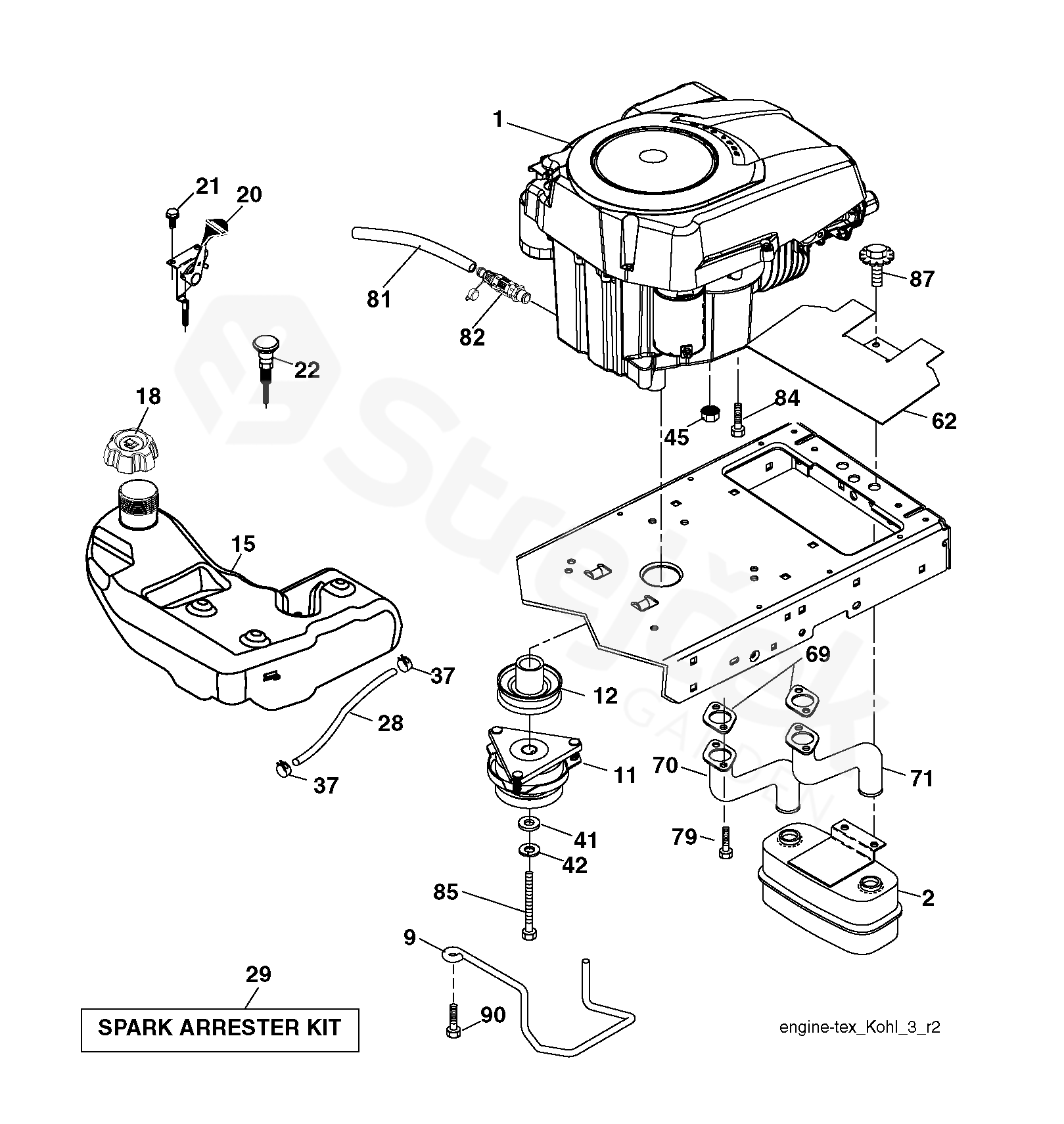

ENGINE
YTH2754 YTH2754T, 96041006203, 2010-04
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For YTH2754T, 96041006203, 2010-04
1 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
Engine KOHL Model No. SV740-0019 		000000000
2 MUFFLER 532149723
9 BELT GUIDE 532194320
11 CLUTCH 532179335
12 PULLEY 532194343
15 FUEL TANK 532193499
18 HUB CAP 532430217
20 THROTTLE CONTROL 532182937
21 SCREW 532416358
22 COMMA*RPL.PAR 532187767428 532191596
28 FULE LINE 532142158
29 SPARK ARRESTER KIT 532137180
37 HADICOVÁ SVĚRKA 532123487
41 WASHER 532126197
42 WASHER 810040700
45 MATICE 873510400
62 SHIELD 532434017
69 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
Gasket (Order From Engine Man.) 		000000000
70 PIPE 532146699
71 PIPE 532146700
79 SCREW 532192334
81 TRUBKA 532148456
82 PLUG 532428287
84 SCREW 817120616
85 BOLT 532179953
87 BOLT 532198239
90 SCREW 817000616
