Spare parts > Jonsered > CHAIN SAWS > CS2153 CS2153, from 2015-07 - > CHAIN BRAKE & CLUTCH COVER
Back to

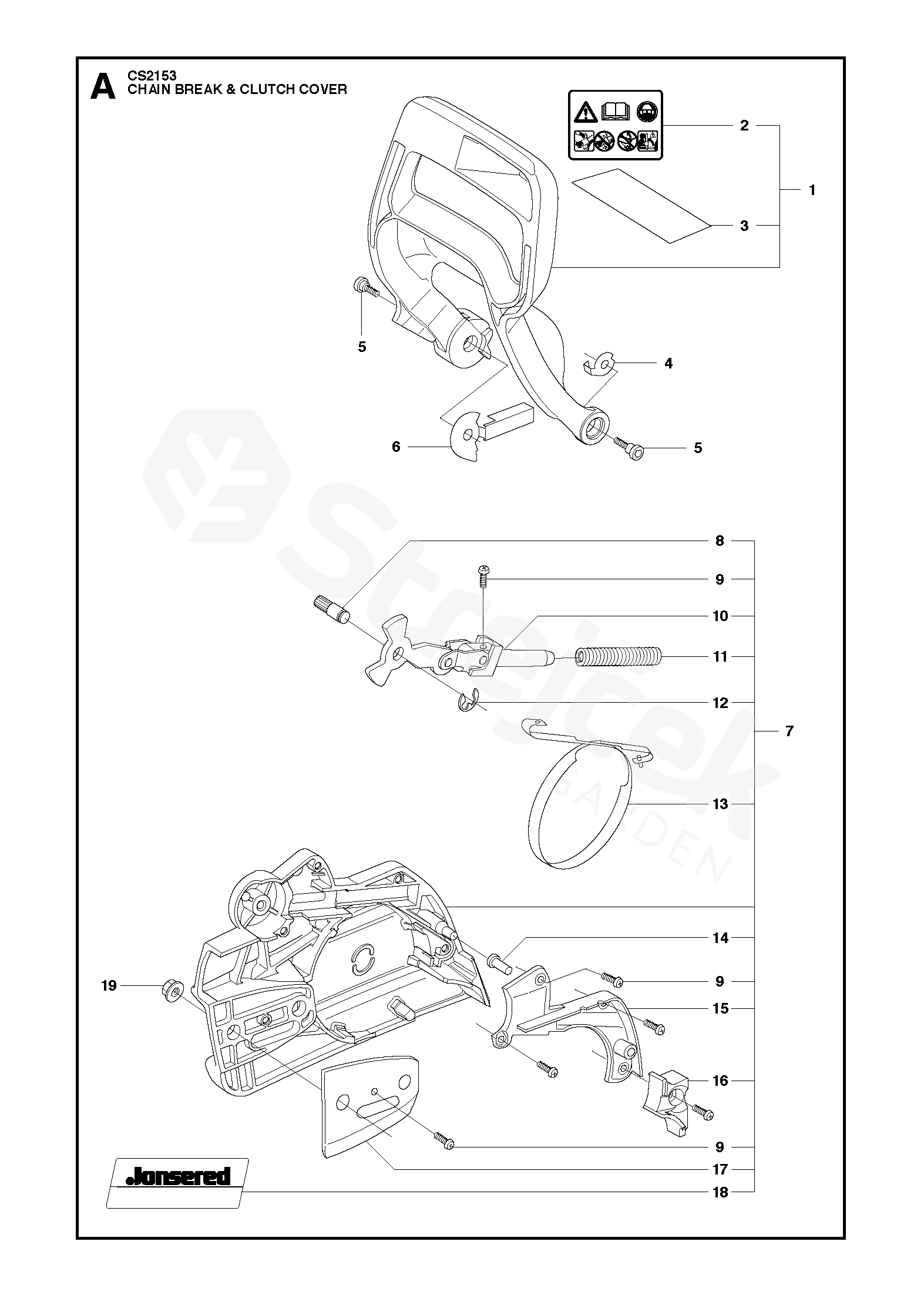

CHAIN BRAKE & CLUTCH COVER
CS2153 CS2153, from 2015-07 -
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For CS2153, from 2015-07 -
1 HAND GUARD 537012103
2 LABEL 503987401
3 HEAT PROTECTOR 537152701
4 WEAR WASHER 503929501
5 SCREW 503893003
6 WEAR PROTECTION 537029901
7 CHAIN BRAKE ASSY 537107901
8 PIN KNEE-JOINT 503892901
9 SCREW CCRPANT 503217072
10 KLOUBOVÝ SPOJ KOMPL. 503890802
11 BRAKE SPRING 503465901
12 E-CLIP 735310820
13 BRAKE BAND ASSY 537043001
14 GUIDE BUSHING 503855201
15 HUB CAP 537108001
16 OCHRANA PROTI OPOTŘEBENÍ 537089001
17 COVER PLATE 503856601
18 LABEL 537006302
19 HEXAGON NUT 503220001
