Jonsered
>
CHAIN SAWS
>
CS2171 CS2171, 2010-05
>

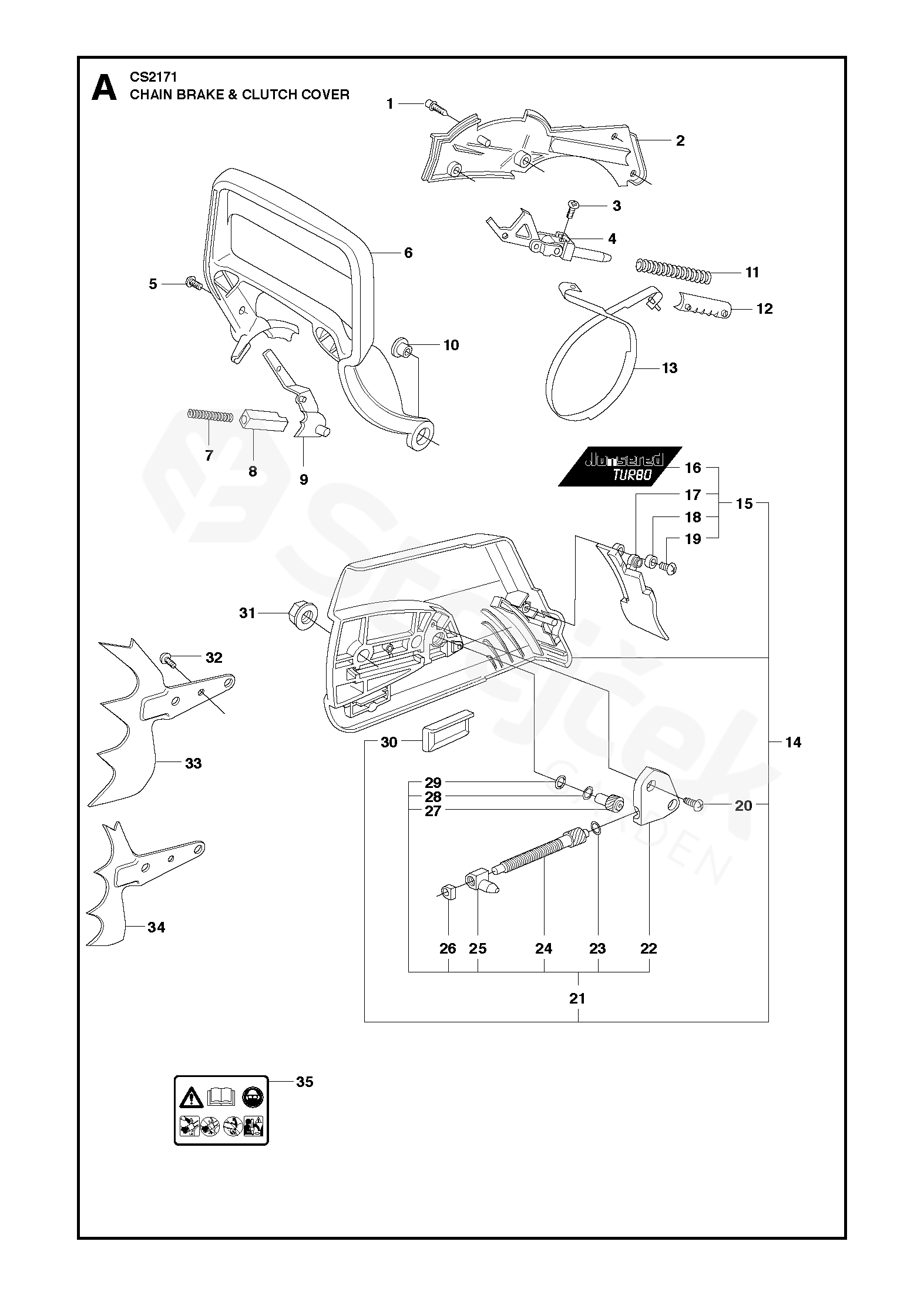

CHAIN BRAKE & CLUTCH COVER
Back to
CS2171
CS2171, 2010-05
CHAIN BRAKE & CLUTCH COVER
CS2171
CS2171, 2010-05
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
CS2171, 2010-05
1
SCREW IHSCFM
503200212
2
HUB CAP
503751103
3
SCREW CCRPANT
503212810
4
KNEE JOINT
501875303
5
SCREW IHSCM
503202512
6
HAND GUARD
503719304
7
POLOHOVÁ PRUŽINA
503436501
8
LOCK
503838102
9
BRAKE LEVER
537008702
10
BUSHING
503775201
11
BRAKE SPRING
503709901
12
SUPPORT
503792702
13
BRAKE BAND ASSY
503752202
14
CLUTCH COVER ASSY
537072001
15
CLUTCH COVER ASSY
537072071
16
LABEL
537244301
17
CHIP GUARD
503762902
18
POUZDRO
503897001
19
SCREW CCRPANT
503212810
20
SCREW CCRPANT
503212810
21
CHAIN TENSIONER
537044102
22
COVER
537016801
23
PODLOŽKA
503230066
24
ŠROUBOVÁK NA ČERVÍKY
537079502
25
PAWL
503998301
26
BEARING SLEEVE
537017401
27
ŠNEKOVÉ KOLEČKO
537079402
28
PODLOŽKA
503230063
29
O-KROUŽEK
740480702
30
CHAIN GUIDE
501517201
31
HEXAGON NUT
503220001
32
SCREW CCRPANT
503212810
33
SPIKE
WRAP
503922701
34
SPIKE
503719701
35
LABEL
503987401
