Spare parts > Jonsered > TRACTORS/RIDE MOWERS > LR 12 LR 12, 36, 1995-01 > ENGINE & CUTTING EQUIPMENT
Back to

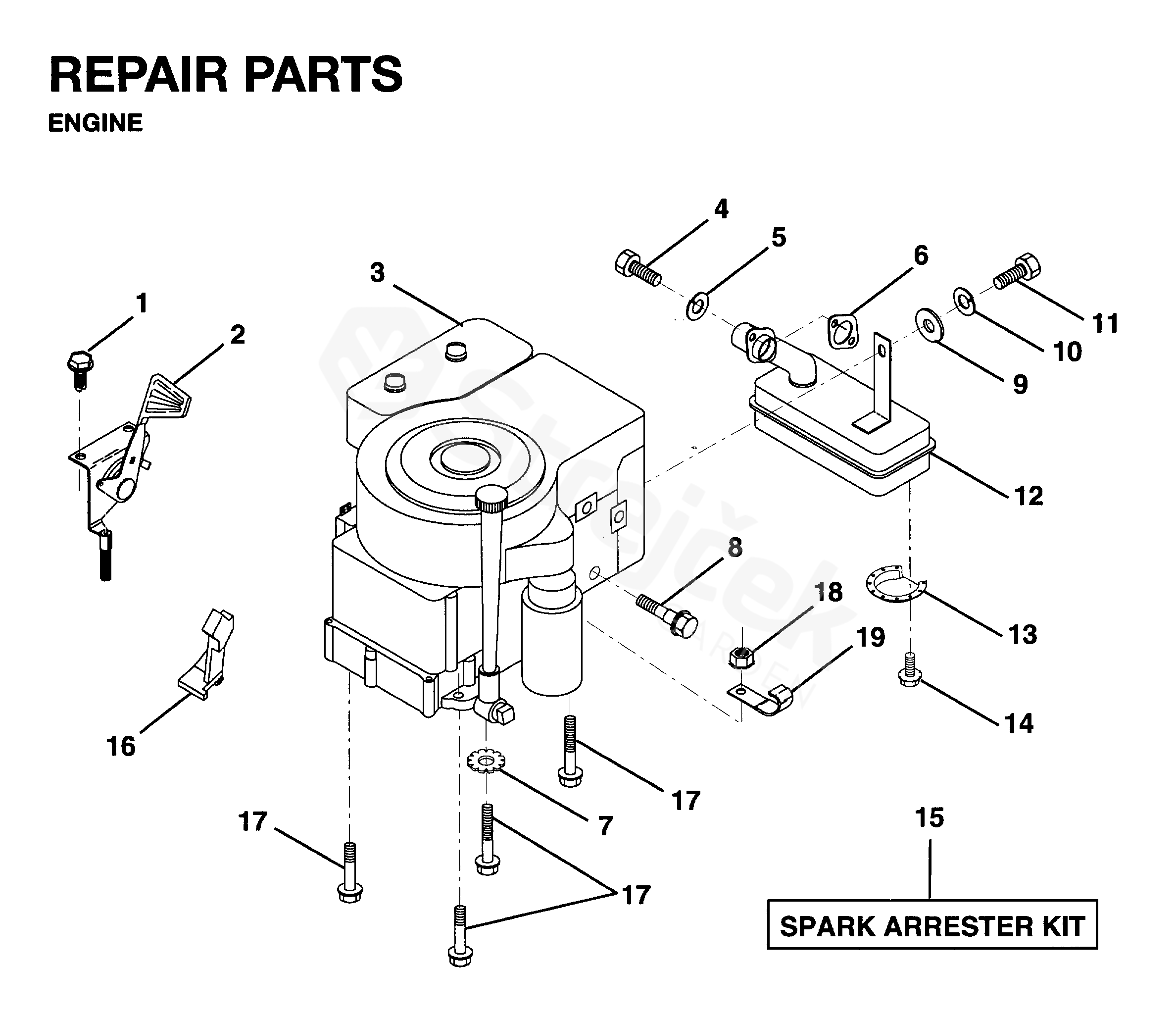

ENGINE & CUTTING EQUIPMENT
LR 12 LR 12, 36, 1995-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LR 12, 36, 1995-01
1 SCREW 817060408
2 THROTTLE TRIGGER 532133025
4 BOLT 871070512
5 PODLOŽKA 810040500
6 GASKET 532125593
7 WASHER 810040600
8 BOLT 532121094
9 PODLOŽKA 734115441
10 WASHER 810040400
12 MUFFLER 532137437
13 DEFLECTOR 532101326
14 SCREW 817030808
15 SPARK ARRESTER KIT 532137180
16 MOVEMENT LIMITER 532127951
17 BOLT 874780624
18 NUT 873220600
19 CLIP 532002751
