Jonsered
>
TRACTORS/RIDE MOWERS
>
LT 2317 CMA LT 2317 CMA, 96051002102, 2012 - 08
>
DRIVE
Back to
LT 2317 CMA

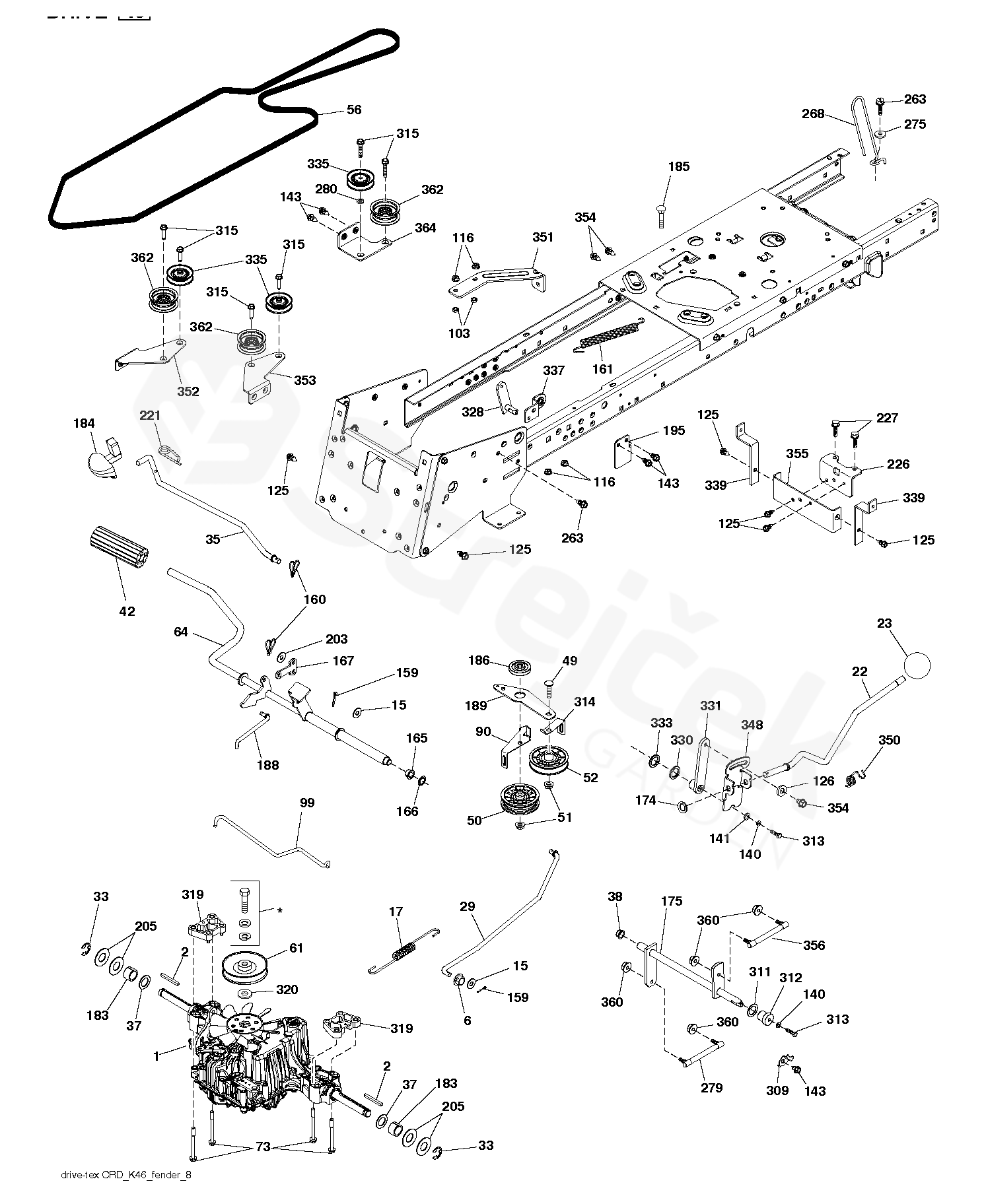

LT 2317 CMA, 96051002102, 2012 - 08
DRIVE
LT 2317 CMA
LT 2317 CMA, 96051002102, 2012 - 08
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
LT 2317 CMA, 96051002102, 2012 - 08
1
W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
Transaxle, Tufftorq K46DC (448355)
000000000
2
KEY
532123583
6
BUSHING
532124208
15
PODLOŽKA
819131316
17
SPRING
532436227
22
ROD
532435670
23
HANDLE
532130564
29
ROD
532435881
33
RETAINER RING
812000001
35
ROD
532401031
37
PODLOŽKA
532188967
38
SLEEVE
532169613
42
PEDAL RUBBER
532124872
49
BOLT
872110614
50
IDLER
532436812
51
MATICE
873900600
52
PULLEY
532194326
56
BELT
532441834
61
PULLEY
532437788
64
SHAFT
532196200
73
BOLT
874490560
90
BRACKET
532439848
99
ROD
532437210
103
NUT
873350500
116
MATICE
873900500
125
SCREW
817000512
126
WASHER
532166002
140
WASHER
810040400
141
WASHER
819091210
143
SCR5/16-18X1/2 SELFTAP ZN SPEC
817490508
159
SPLIT PIN
876020412
160
KOLÍČEK
532169484
161
PRUŽINA
532105709
165
BUSHING
532196212
166
MATICE
532429164
167
LATCH
532405257
174
NUT
532197289
175
SHAFT
532441823
183
ROZPĚRKA
532137057
184
BRAKE
532441407
185
BOLT
872110622
186
ROZPĚRKA
532194321
188
LINK
532194323
189
BELLCRANK
532433611
195
BRACKET
580456901
203
PODLOŽKA
819111116
205
PODLOŽKA
532121748
221
RETAINER SPRING
532403187
226
BRACKET
532401564
227
SCREW
817490512
263
PROTECTOR
532182402
268
PROTECTOR
532182402
275
WASHER
819131614
279
LINK
532437262
280
WASHER
819111012
309
RETAINER
532165581
311
WASHER
532169845
312
HUB
532165614
313
BOLT
874780416
314
RETAINER
532444713
315
BOLT
817580520
319
SPACER
532436794
320
PODLOŽKA
532187690
328
SHAFT
532437958
330
WASHER
532169593
331
LEVER
532183900
333
PODLOŽKA
532170868
335
PULLEY
532199534
337
BRACKET
532435937
339
PÁSEK
532436867
348
ARM
532443607
350
TORSION SPRING
532445020
351
BRACKET
532436998
352
BRACKET
532435819
353
BRACKET
532436577
354
SCREW
817490510
355
PÁSEK
532435669
356
ČLÁNEK
532436464
360
MATICE
532444714
362
IDLER
532436812
364
BRACKET
532443032
