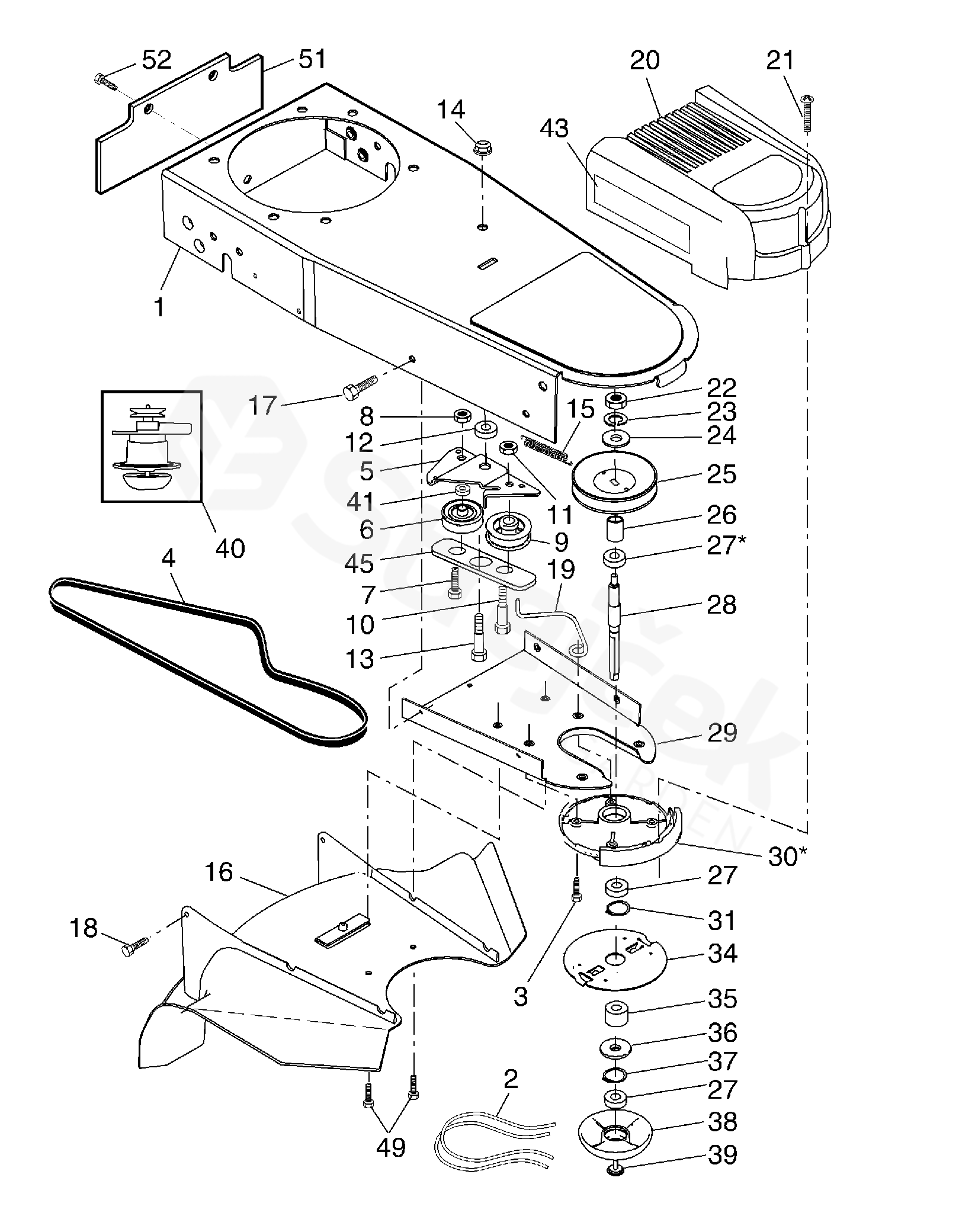

Spare parts - Partlist - WT4000 WT4000, 96172000101, 2006-01 - DRIVE

Everything for your machines

WT4000 WT4000, 96172000101, 2006-01

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For WT4000, 96172000101, 2006-01

2	TRIMMER CORD 174040	532174040
3	SCREW	532173715
4	V-BELT 185476	532185476
5	BRKT.IDLER 172145X004 172145X004	172145X004
6	PULLEY	532166042
7	BOLT 173716	532173716
8	LOCKNUT 3/8-16 RL508A/B	532751592
9	PULLEY 166043	532166043
10	BOLT	532160829
11	LOCKNUT 5/16-18	532155552
12	SPACER 173717	532173717
13	BOLT	532174719
14	MATICE	532145212
15	SPRING 173811	532173811
16	DEFL ECTOR, BOTTOM 180268	532180268
17	SCREW	532057808
18	SCREW 178848	532178848
19	BELT KEEPER 187336	532187336
21	SCREW	532149746
22	NUT	532062336
23	WASHER	810040600
24	PODLOŽKA	819131316
25	PULLEY 180340	532180340
26	SPACER 172551	532172551
27	BEARING 174549	532174549
28	SHAFT 172603 172603	532172603
29	CHASSIS.CVF 169766X479 169766X479	169766X479
30	SPINDLE HOUSING ASSEMBL "174543, (Includes Upper Bearing)"	532174543
31	RETAINING RING 174581	532174581
34	PLATE 173531 173531	532173531
35	SPACER 172635 172635	532172635
36	COVER 172516	532172516
37	RETAINING RING 174580	532174580
38	CUP 182217	532182217
39	BOLT 180334	532180334
40	TRIMMER HEAD 173619 173619	532173619
41	ROZPĚRKA 174029	532174029
43	DECAL 174036	532174036
45	BRKT.BELT. 174596X479 174596X479	174596X479
49	SCREW	817060408
51	DEFL ECTOR, REAR 189006	532189006
52	SCREW 178848	532178848
