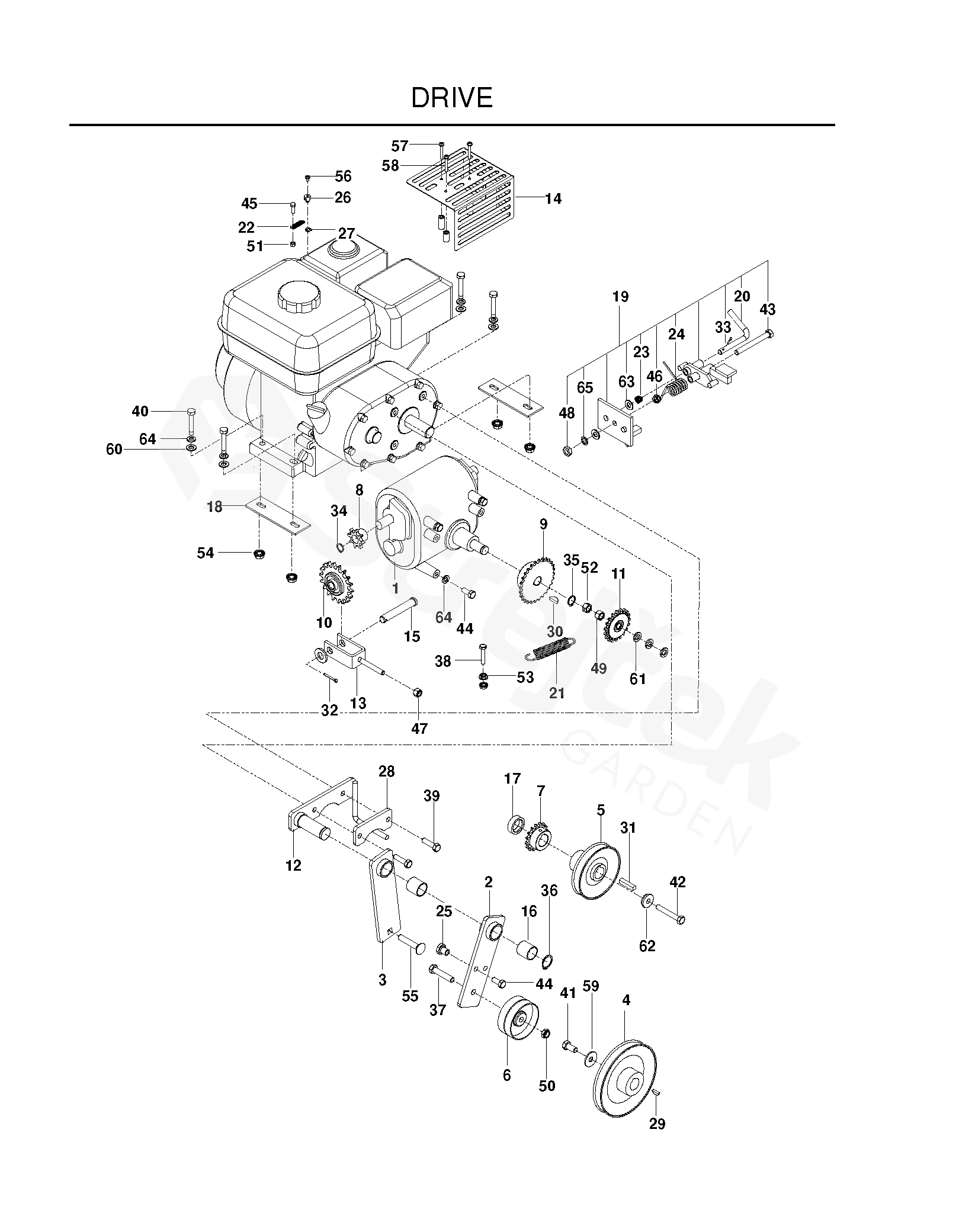

Náhradní díly - rozkres - SC18 SC18A CE, 968999510, 2010-09 - NÁHON

vše pro vaše stroje

SC18 SC18A CE, 968999510, 2010-09

Najeďte myší na rozkres

kolečko: přiblížení, levé tlačítko: pohyb

Další díly pro SC18A CE, 968999510, 2010-09

1	TRANSMISSION, 4 SPEED	539112854
2	IDLER ARM	539112869
3	IDLER, CHAIN	539112868
4	PULLEY, 5.25	539112463
5	PULLEY, 3.75	539112464
6	PULLEY, IDLER	539000343
7	SPROCKET,ENGINE	539030440
8	SPROCKET, #40 CHAIN, 8 TOOTH	539030456
9	SPROCKET TRANSMISSION	539030429
10	SPROCKET, CHAIN TENSIONER	539030430
11	SPROCKET, IDLER 35 PITCH	539112833
12	IDLER PIVOT	539112855
13	NAPÍNÁK ŘETĚZU	539003133
14	SHIELD, HEAT	539114031
15	PIN CLEVIS, 1/2 X 3	539109216
16	BUSHING	539108619
17	SPACER, PTO SHAFT	539112825
18	R/B 7203 PLATE, ENGINE BOLT	539005193
19	PARKING BRAKE ASSY, SOD CUTTER	539030312
20	HANDLE, BRAKE, BLK FIN	539001425
21	SPRING AXLE AERATOR	539010195
22	SPRING, THROTTLE	539030445
23	KNOB SPRING KIT, DEPTH/STAB.	539007214
24	SPRING, TORSION, LIFT ARM	539052861
25	SPRING ANCHOR	539113455
26	CLAMP, THROTTLE CABLE	539030449
27	SVORKA	539030451
28	KEEPER - CHAIN	539113180
29	KEY, WOODRUFF #6	539910008
30	KEY, #9 WOODRUFF	539910211
31	KEY, 7MM SQ X 33MM	539109159
32	PIN COTTER, 1/8 X 1	539109246
33	PIN RETAINING SCREW	539990365
34	RING RETAINING, 9/16, EXT	539109984
35	POJISTNÝ KROUŽEK	539101971
36	RETAINING RING	539101151
37	ŠROUB	539990730
38	ŠROUB	539100266
39	HCS M8-1.25X30MM GD8.8 ZD	539100567
40	ŠROUB	539990669
41	HCS 3/8F X 3/4	539977748
42	HCS, M8-1.25 X 55MM, GR8.8	539112859
43	HCS, 1/2-13 X 4 1/2	539108367
44	ŠROUB	539976934
45	HCS, M5-0.8 X 16MM, GR8.8	539108520
46	NUT, 1/2-13, JAM, NYLOC, GR2	539108010
47	MATICE	539990717
48	NUT, 1/2-13, HEAVY JAM	539108784
49	MATICE	539976979
50	NUT, HEX 3/8-16 NYLON, THIN	539200282
51	NUT, 5MM-.8	539109154
52	MATICE	539990546
53	NUT 1/4-20 HEX FLG LK ZD	539108735
54	NUT, 5/16-18, NYLOC	539112899
55	RHSNB 3/8C X 2	539100145
56	SCREW, METRIC SPECIAL, 1/4	539108583
57	SCREW, M5-0.8 X 40, PHIL PAN HD	539114034
58	SCREW, M5-0.8 X 35, PHIL PAN HD	539114038
59	SPRING, WASHER	539112483
60	PODLOŽKA	539990188
61	PODLOŽKA	539990118
62	WASHER, STEPPED	539112826
63	PODLOŽKA	539990250
64	PODLOŽKA	539990187
65	POJISTNÁ PODLOŽKA	539990509
	V-BELT, SOD CUTTER NOT SHOWN NENÍ ZOBRAZENO	539030439
