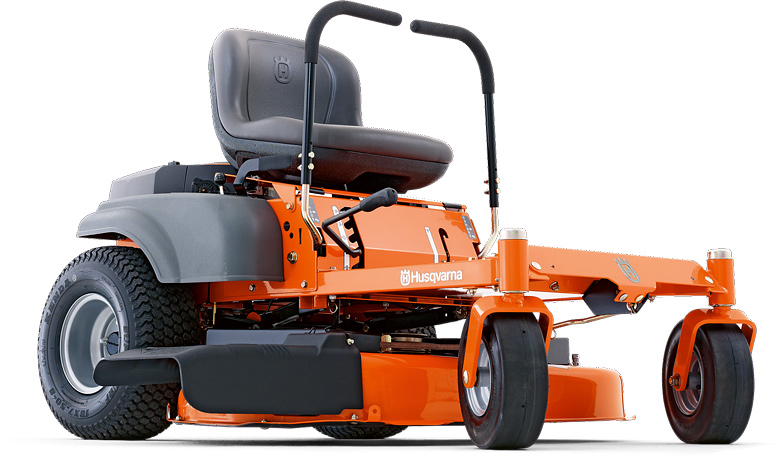

HUSQVARNA RZ 19

For maneuverability, efficiency and convenience in a homeowner zero-turn mower package, this machine really peapod. True Zero-turn mower performance with twin, maintenance-free integrated transmissions, heavy-duty front jonesville and a rugged tube steel frame. High performance cutting decks allow side ejection or optional mulch and collection capability. Convenient control placement, foam padded steering levers and an adjustable seat make these units easy and enjoyable to operate.

Product Code : 966658901

Manufacturer : Husqvarna / husqvarna.cz

Warranty : 24 months

Product is not for sale

And can not be ordered

Features and benefits

Engine Briggs & Stratton
The Briggs & Stratton Motors offer durability, reliable starting and the power you need to work.

Air Induction™
Our innovative Mowing System Air Induction™ sucks clean air from below and from the top of the mowing mechanism, increasing the airflow that causes more grass and improved mowing.

Maintenance-Free Gearbox
Seamless operation with maintenance-free, integrated zero-turn gearboxes.

Sturdy Frame and Castor wheels
The Sturdy frame and swivel wheels ensure durability and reduce the risk of damage to the chassis.

Compact Design
The Compact design allows the tractor to move easily on smaller surfaces. At the Same time, smaller storage space is also needed.

Easily Accessible Service points
Service activities such as oil replenishment, filter cleaning, maintenance of hydraulic drive system components, electrical system and battery can be done quickly thanks to easily accessible service points.

Detachable footrests
The Detachable bottom plate allows easy access to the mowing mechanism pulley, the house and easier cleaning.

Convenient operation
The Ergonomically designed driver position ensures a perfect overview of the work area. ALL controls are easily accessible from the driver's seat.

Control System with zero turning radius
The Hydraulic drive of individual wheels provides very precise manoeuvrability and allows the lawnmower to rotate around its axis with a zero turning radius.

High-Performance mowing mechanism
Made of pressed Steel, the Air Induction™ construction provides excellent results especially when mulching or collecting clippings.

Convenient Control Panel
For maximum comfort of the driver, the choke, throttle and ignition levers are grouped in one control Panel on the right side.

Rear Bumper
Reduces the risk of motor damage on impact.

Water hose coupling
Facilitates cleaning of the mower's skeleton. Only connect the hose, release the water and start the engine. For Optimal results, if you clean the lawn mower immediately after use.

BioClip®/cover as Accessory
It Allows you to rebuild your tractor to the BioClip® mowing system, which means that the grass is cut into small pieces that quickly break down and return to the lawn as a natural fertilizer, and also help make the lawn more resistant to drying.

Collection Basket as an accessory
Collecting grass clippings to obtain a clean and groomed lawn. Collection Basket as an accessory.

Specification

Engine

Motor/engine manufacturer

Briggs & Stratton

Engine name

Endurance Series

Net power at preset rpm Energy

9.6 kW @ 2600 ot./min

Cylinder displacement, cm³

500 cm³

Cylinders

Engine cooling

Air

Generator

Air filter type

Standard

Type of gasoline

Gasoline

Fuel tank location

On the side (1)

Engine lubrication type

Full pressure

Oil filter

Ano

Equipment

Fuel tank capacity, litres

11.4 l

Seat suspension

Ano

Seat back height

Central

Oil filling volume

Amount of oil, liters

1.4000

Drive system

Transmission type

Hydrostatic

Transmission manufacturer

Hydro-Gear

Transmission model

EZT

Pump Volume

Fan-cooled pumps

Yes

Forward speed, min-max, km/h

0 - 10.4 km/h

Rear speed, min-max, km/h

0 - 5.6 km/h

Cutting deck

Cutting width

107 cm

Cutting deck type

Pressed

Cutting methods

Side Discharge

Cutting deck material

Steel

Deck thickness

2.3 mm

Cutting height, min-max, mm

38.1 - 101.6 mm

Cutting height steps

Blade engagement

Manual

Mowing knives

Cutting knife tip speed

166.0000

Cutting deck lifting system

Manual Hand Operated

Surface treatment of the cutting deck by powder coating

Ano

Type of house

Aluminium, ventilated

Water hose connection

Ano

Material

Seat material

Vinyl

Basic data

Tire dimensions, front, inches

11X4-5 "

Tire dimensions, rear, inches

18X7, 5-8

Wheelbase

102 cm

Base machine, length

191 cm

Base machine, height

112 cm

Weight (complete product w/o side packed articles)

195 kg

Dimensions

Base machine, width (ejection hole cover at the bottom), cm

147 cm

Base machine, width (ejection hole cover on top), cm

109 cm

Productivity

8900 m²/hr

Product information

Packaging type

Wooden case

Overall dimensions

Package dimensions, LxWxH

1778x1194x864 mm

Logistics

Package volume

1.8 Cubic m³

Gross weight (packed)

243

Pallet dimensions, LxWxH

1778x1194x864

Number on truck

Logistic data

Quantity on pallet

Number in Container

20-Trace: 0 40-Trace: 0 40-HC: 34
