Cutting
Performance and productivity, even under harsh conditions

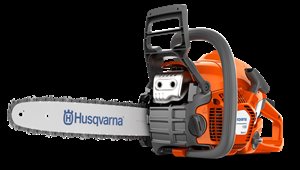

HUSQVARNA 135 Mark II
Robust, reliable and easy to use saw with high cutting performance, designed for home and garden owners. The perfect chainsaw for occasional cutting in the garden, cutting firewood or felling smaller trees. It starts quickly and is easy to operate, and thanks to the lateral chain tensioning, chain tensioning is quick and convenient.
Read more
Product Code : 967861814
EAN : 7391736617062
Manufacturer : Husqvarna / husqvarna.cz
Warranty : 24 months
Your price:
284.94
(235.49 without VAT)
In stock 2 pcs
Send 4/22/2024
+ To Cart
Characteristics
Specification
Download
Accessories
Features and benefits
LowVib® system
Anti-vibration dampers effectively absorb vibrations, thus saving the operator's arms and hands.
Inertia-activated chain brake
Effective, inertia-activated chain brake.
Air Injection™ System
The centrifugal air purification system reduces wear and ensures longer intervals between filter cleaning.
Smart Start®
The engine and starter device have been designed to start the engine quickly and with minimal effort. The resistance of the starter cord is reduced by up to 40%.
Chain tensioning from the side
Allows fast and convenient chain tensioning.
X-Torq®
It has lower fuel consumption and lower fume levels compared to the world's strictest environmental regulations.
Inertia-activated chain brake
Effective, inertia-activated chain brake.
Fuel pump
Fuel pump for easy starting.
Combined choke/switch lever
The combined choke and switch lever makes starting easier and reduces the risk of engine overload.
Specification
Product data
Chain type
S93G
Dimensions / Weight
Product dimensions, height
29 cm
Product dimensions, length
41.7 cm
Product dimensions, width
23 cm
Recommended guide rail length, min-max
14 - 16
Weight (without cutting device)
4.7 kg
Gross product weight, final
7300 g
Product net weight, final
6000 g
Product size, LxWxH
41.7x23x29 cm
Engine Specifications
Cylinder displacement
38 cm³
Idle speed, rpm
3 000 ot./min
Output power
1.6 kW
Cylinder stroke
32
Cylinder inner diameter
39
Air gap of the ignition module
0.3000
Engine
Gap between electrodes
0.6 mm
Fuel consumption
0.7 kg/h
Maximum engine speed under load
9 000 ot./min
Spark plug
NGK BPMR7A
Torque, max.
1.84 Nm ot./min
Lubricant type
Husqvarna two-stroke or equiv. in a ratio of 50:1
Basic data
Fuel tank capacity
0.4 l
Oil pump type
Automatic
Oil tank capacity
0.3 l
Energy source
Petrol
Cutting equipment
Chain speed at max. power
17 m/s
Chain speed at 133% of the maximum engine power speed
22.3 m/s
Chain pitch
3/8" mini "
Chain type
Fixed chain 6 teeth
Guide rail length
355
Sound and noise level data
Sound power level, guaranteed (LWA), db(A)
116 dB(A)
Sound power level, measured dB(A)
114.34 dB(A)
Sound pressure level at operator's ear, db(A)
102 dB(A)
Sound pressure, db(A)
102 dB(A)
Vibration data
Equivalent vibration level (ahv, eq) of the front handle
3.72 m/s²
Equivalent vibration level (ahv, eq) of the rear handle
5.5 m/s²
Performance
Maximum speed at idle
3 200 ot./min
Clutch release speed (±120)
4 000 ot./min
Upper limit for clutch release
4 500 ot./min
Torque, max. at rpm.
8 000 ot./min
Approval
CE approved
Yes
Certification
Cert. machine. equipment, according to Directive 2006/42/EC
Yes
Bar parameters
Bar length (in inches)
CARB emission data
Engine series, CARB
*PWES.0384CX
Engine series, EPA
-PWES.0384CX
Exhaust emissions (average CO content), CARB
330.7 g/kWh
Exhaust emissions (average CO₂ content), CARB
877 g/kWh
Exhaust emissions (average HC content), CARB
40.85 g/kWh
Exhaust emissions (average NOx content), CARB
1.14 g/kWh
Sizes
Type of rail attachment
Small fit
Bar and chain parameters
Generic Chainsaw SubGroups
Occasional use chainsaws
Product information
Handle type
Standard
Shipping Package Contents
Package length
495 mm
Package width
285 mm
Package height
333 mm
Packaging
Quantity in wholesale package
1
Material composition
Main packaging: paper + cardboard
0 g
Total metal
0 g
Paper
34 g
Paper + cardboard total
874 g
Total PE (polyethylene)
0 g
TOTAL PET (polyethylene terephthalate)
0 g
Plastic foil
12 g
Hard plastic
0 g
Total plastic
12 g
Polystyrene (PS), foamable PS (EPS), tough polystyrene (HPS, IPS, HIPS) total
0 g
US EPA emission data
Exhaust emissions (average CO content - carbon monoxide), EPA
331 g/kWh
Exhaust emissions (CO limit for a given engine family), EPA
536 g/kWh
Exhaust emissions (average CO₂ content), EPA
877 g/kWh
Exhaust emissions (average HC - hydrocarbon content), EPA
40.85 g/kWh
Exhaust emissions (average NOx content), EPA
1.14 g/kWh
Emission data according to Commission Regulation (EU)
Exhaust emissions (average CO content)
278.5 g/kWh
Exhaust emissions (average CO₂ content)
804 g/kWh
Exhaust emissions (EU V CO2)
804 g/kWh
Exhaust emissions (average HC content)
41.7 g/kWh
Exhaust emissions (average NOx content)
1.11 g/kWh
Emission and noise level data
Sound pressure (15 m), db(A)
102
