Spare parts > Husqvarna Construction Products > POWER CUTTERS > K650 Cut-n-Break K650 Cut-n-Break, 2007-10 > HANDLE
Back to

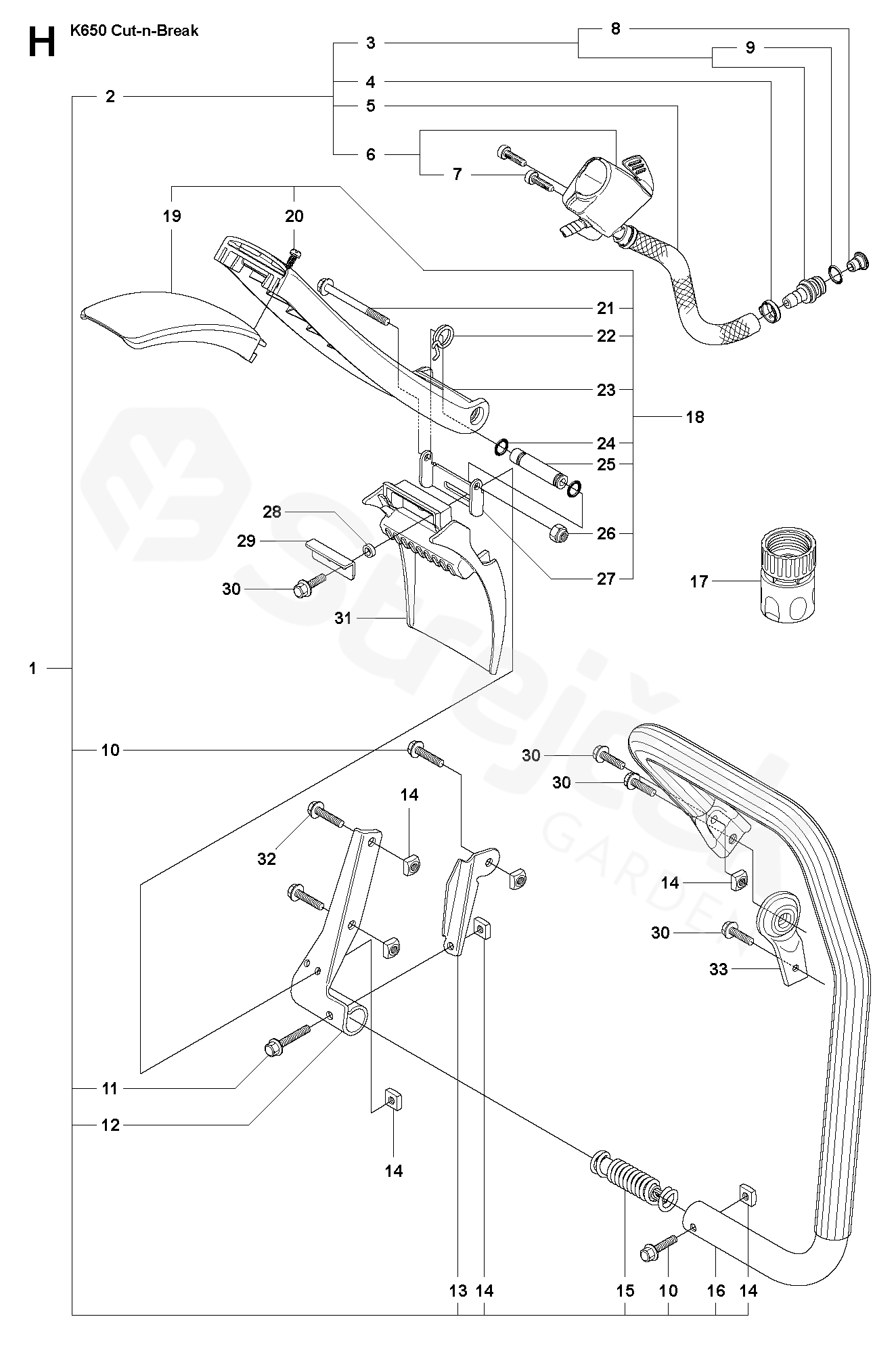

HANDLE
K650 Cut-n-Break K650 Cut-n-Break, 2007-10
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For K650 Cut-n-Break, 2007-10
1 HANDLE Incl. 2, 10 - 16
Incl. 2, 10 - 16 		544111004
2 HOSE ASSY 506385905
3 NIPPLE Incl. 13
Incl. 8 		506295703
4 HADICOVÁ SVĚRKA 506095606
5 HADICE L=230 MM
L=280mm 		506097502
6 VALVE ASSY Incl. 7
Incl. 7 		506386004
7 SCREW IHSCT 503218874
8 RESTRICTION 544895301
9 O-KROUŽEK 503263021
10 SCREW EHHFM 503200005
11 SCREW EHHFM 503200008
12 GROUND SUPPORT 506144201
13 STAY 506039901
14 ČTYŘHRANNÁ MATICE 503226504
15 DAMPING PIECE 505279513
16 HANDLE 506403502
17 COUPLER 503266002
18 SPRAY GUARD Incl. 18, 28 - 34
Incl. 19 - 27 		544104704
19 SPRAY GUARD 506406202
20 SCREW CITXPANT 503212716
21 SCREW EHHFM 503200001
22 PRUŽINA 506406001
23 OCHRANNÝ KRYT 506406302
24 O-KROUŽEK 740420500
25 BUSHING 506403701
26 LOCK NUT 732211401
27 BRACKET 506403801
28 BUSHING 544039201
29 DESKA 544032201
30 SCREW EHHFM 503200004
31 SPRAY GUARD 544032102
32 SCREW EHHFM 503200035
33 ANTIVIBRATION ELEMENT 506296502
