Spare parts > Husqvarna Construction Products > POWER CUTTERS > K650 Cut-n-Break K650 Cut-n-Break, 2007-01 > CRANKCASE
Back to

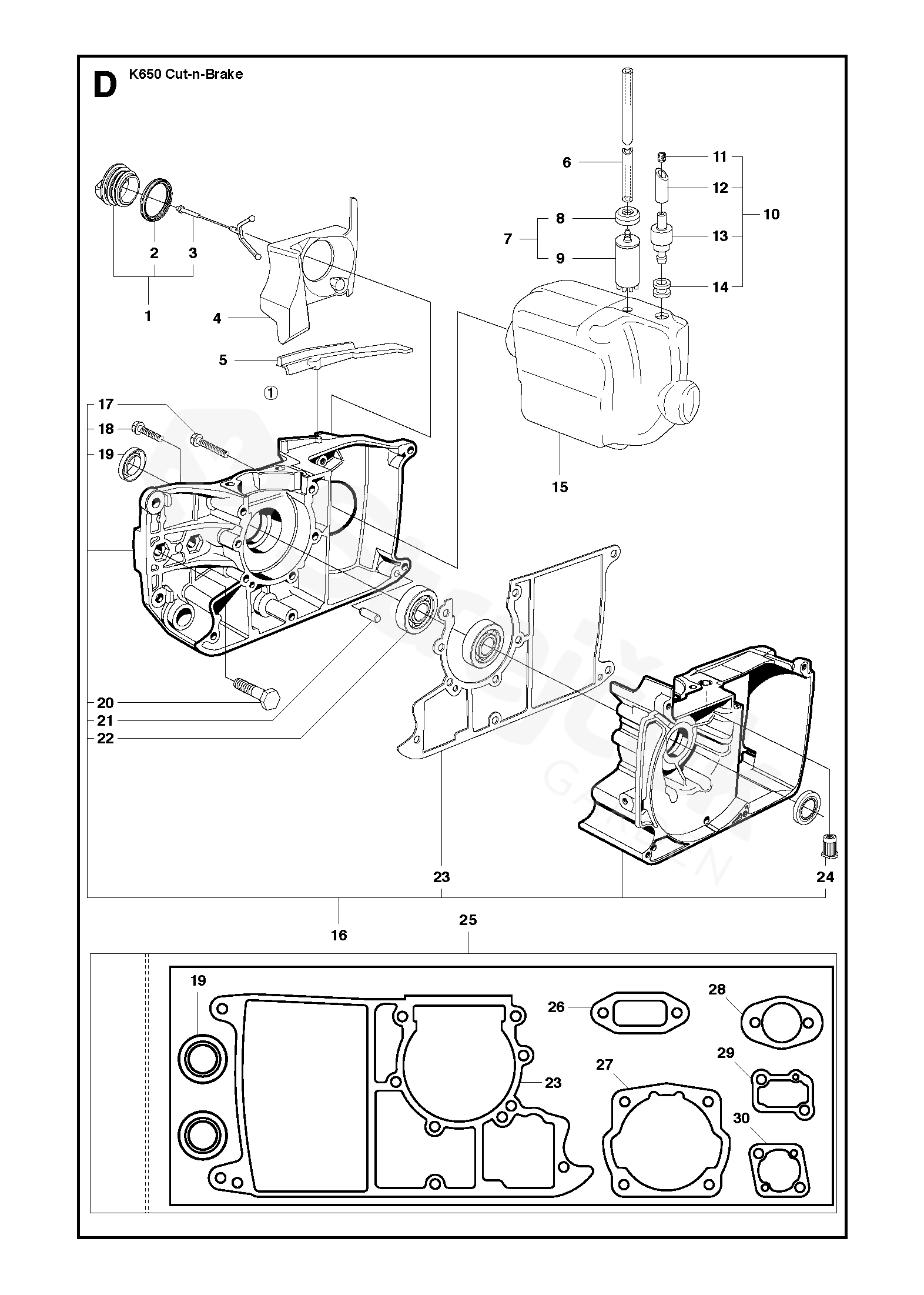

CRANKCASE
K650 Cut-n-Break K650 Cut-n-Break, 2007-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For K650 Cut-n-Break, 2007-01
1 TANK CAP ASSY
Incl. 2, 3 		506255903
2 GASKET 506292101
3 HOLDER 503578901
4 COVER 506345602
5 SPACER 506368001
6 FUEL HOSE 501768326
7 FUEL FILTER
Incl. 8, 9 		506264111
8 HADICOVÁ SVĚRKA 506271101
9 FUEL FILTER 506264101
10 TANK VENT ASSY Incl. 11 - 14
Incl. 11 - 14 		506071113
11 PLUG 504357201
12 FUEL HOSE 501768304
13 TANK VENT 506236101
14 GROMMET 506219101
15 FUEL TANK 506256101
16 CRANKCASE ASSY Incl. 17 - 24
Incl. 17 - 24 		544109304
17 SCREW EHHFM 503200007
18 SCREW EHHFM 503200008
19 SEALING RING
Gasket kit 25 		503260204
20 BAR BOLT 505220937
21 PARALELNÍ KLÍN 720130710
22 BALL BEARING 503250001
23 GASKET
Gasket kit 25 		503443101
24 THREAD BUSHING 506317401
25 GASKET KIT
Incl. 19, 23, 26 - 30 		544384202
26 GASKET 506340601
27 GASKET 503491001
28 GASKET 506096401
29 GASKET 506320301
30 GASKET 506320201
