Spare parts > Husqvarna Construction Products > POWER CUTTERS > K6500 RING K6500 Ring II, 2016-12 > CHASSIS / FRAME
Back to

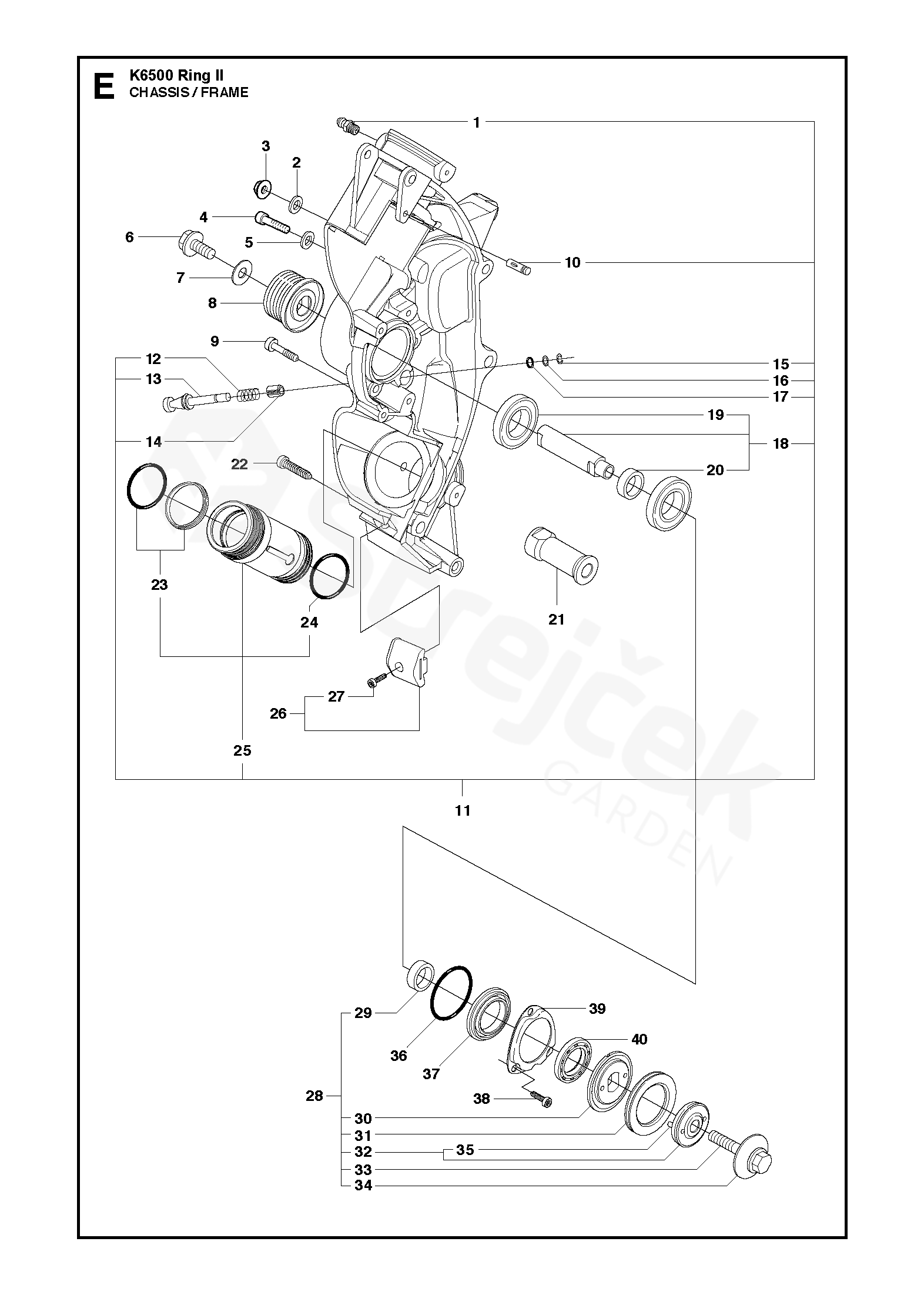

CHASSIS / FRAME
K6500 RING K6500 Ring II, 2016-12
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For K6500 Ring II, 2016-12
1 LUBRICATION NIPPLE 738881001
2 PODLOŽKA 503230401
3 HEXAGON NUT 503220001
4 SCREW IHSCM 725545905
5 PODLOŽKA 503230403
6 SCREW EHHFM 503200045
7 PODLOŽKA 503230116
8 PULLEY 584271201
9 SCREW ITXSCM 503215326
10 GROOVED PIN 721125270
11 CHASSIS 522657501
12 COMPRESSION SPRING 506257301
13 LOCKING BUTTON 506328001
14 SPRING PIN 721440600
15 CIRCLIP 735310800
16 WASHER 503230112
17 O-RING 503263022
18 DRIVE SHAFT 506351502
19 BALL BEARING 583953301
20 SPACER 506375002
21 SPACER 581709801
22 SCREW ITXSCM 503215320
23 WIRE 506343901
24 O-RING 740482502
25 SLEEVE 544077601
26 WEAR PROTECTION 506351903
27 SCREW ITXSCM 505574116
28 GEAR WHEEL ASSY 506352304
29 SLEEVE 506374901
30 FLANGE WASHER 506374602
31 GEAR WHEEL 506178304
32 DRIVER 506312202
33 SCREW EHHFM 506139601
34 PODLOŽKA 506139511
35 ČEP PRUŽINY 721425250
36 O-RING 740422400
37 SEALING 506374801
38 SCREW ITXSCM 503215312
39 SEALING COLLAR 506374701
40 SEALING RING 503262101
