Spare parts > Husqvarna Construction Products > POWER CUTTERS > K750 K750, 2009-07 > BELT GUARD & PULLEY
Back to

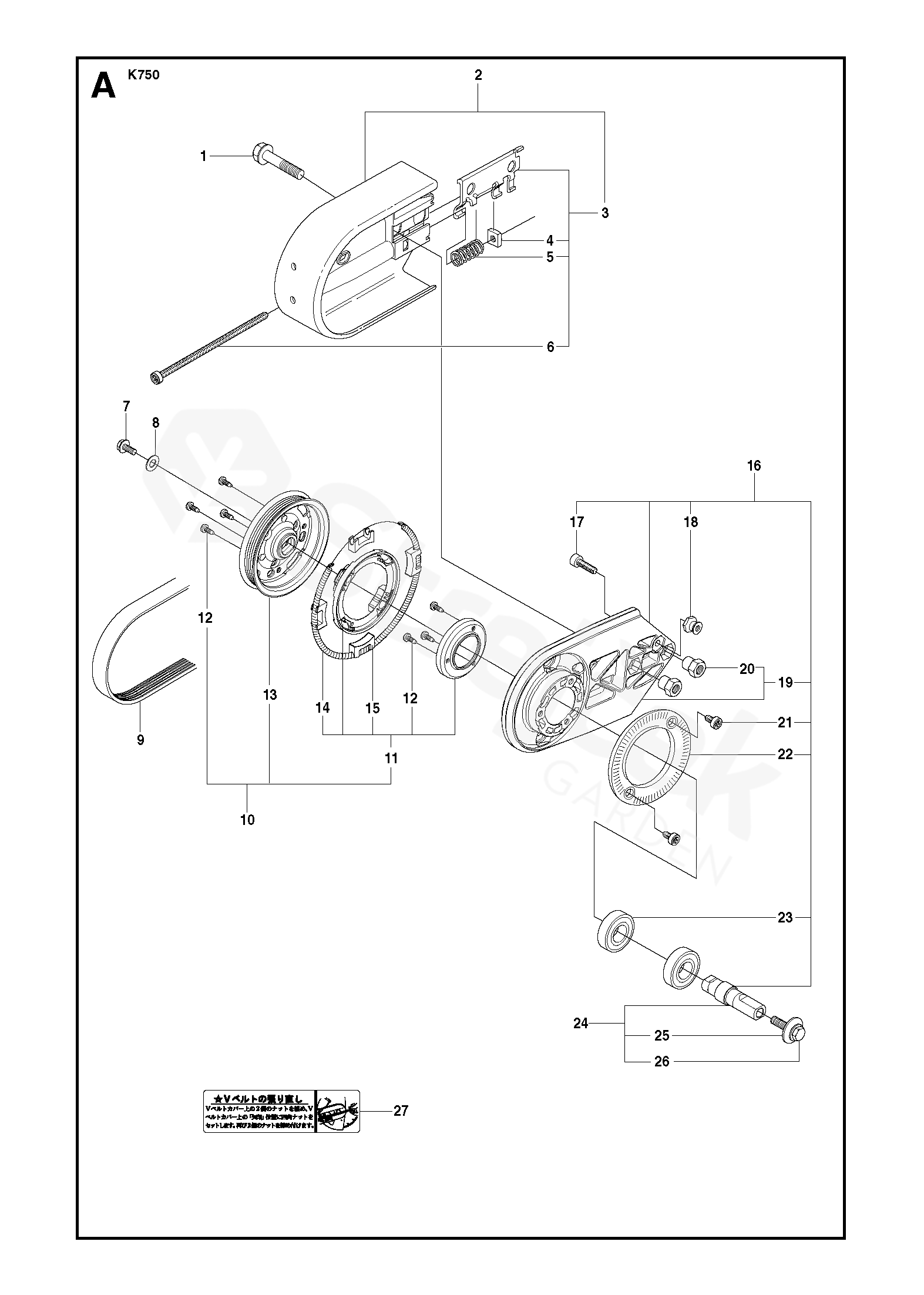

BELT GUARD & PULLEY
K750 K750, 2009-07
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For K750, 2009-07
1 SCREW EHHFM 506284401
2 BELT GUARD
Incl. 3 		506393602
3 BELT TENSIONER ASSY
Incl. 4 - 6 		506266604
4 MATICE 506409301
5 COMPRESSION SPRING 506266801
6 SCREW CITXSCM 503207205
7 SCREW EHHFM 503200045
8 PODLOŽKA 503230116
9 BELT 544908402
10 PULLEY
Incl. 11 - 13 		504037007
11 CASSETTE
Incl. 12, 14 - 15 		505445403
12 SCREW CCRPANT 503212810
13 PULLEY 504062201
14 DRAW SPRING 544441001
15 BRAKE SHOE 544440402
16 BEARING HOUSING
Incl. 17 - 19, 21 - 23 		506394208
17 SCREW ITXSCM 505574116
18 TORSION STOP 506143201
19 BEARING HOUSING
Incl. 20 		506394206
20 MATICE 506287301
21 SCREW ITXSCM 503215310
22 SCREEN 506288401
23 BALL BEARING 503252101
24 HRÍDEL
Incl. 25 - 26 		506298365
25 PODLOŽKA 506139511
26 SCREW EHHFM 506139601
27 LABEL
Japan only 		506309705
