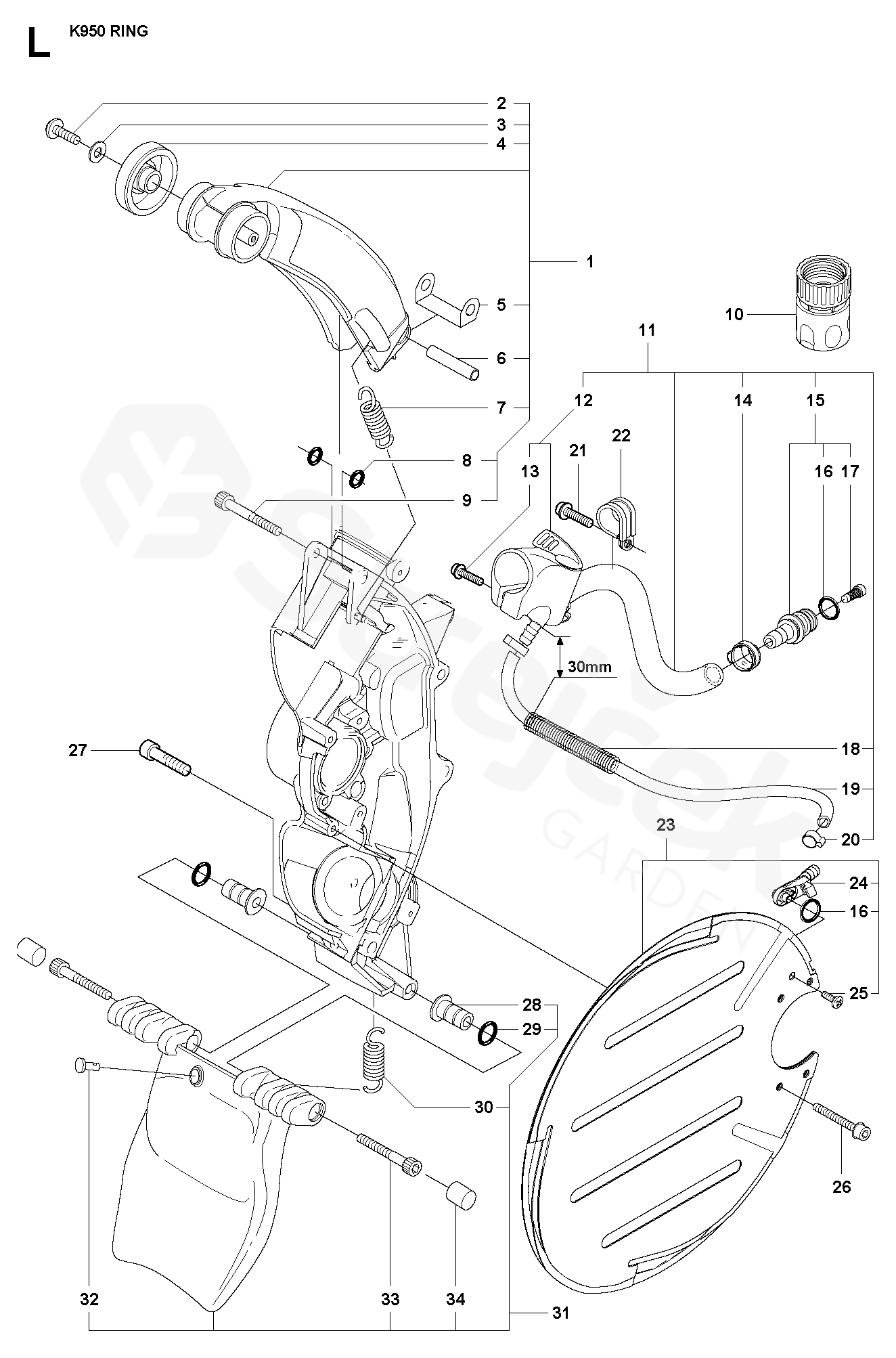

Spare parts > Husqvarna Construction Products > POWER CUTTERS > K950 RING K950 Ring, 2007-01 > GUARDS
Back to
GUARDS
K950 RING K950 Ring, 2007-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For K950 Ring, 2007-01
1 SPRAY GUARD ASSY Incl. 2, 3 - 9
Incl. 2, 3 - 9 		506352204
2 BOLT 506339601
3 SCREW IHSCM 725537656
4 SEALING 506349001
5 BLADE GUARD 506246905
6 SCREW 503214601
7 PODLOŽKA 734488001
8 KOLO 506262202
9 COVER PLATE 506312801
10 SPACING TUBE 506314501
11 DRAW SPRING
Incl. 12, 14 - 15, 18 - 20 		506292301
12 O-RING
Incl 13 		503263025
13 SCREW IHSCM 725537956
14 COUPLER 503266002
15 HOSE KIT Incl. 16, 17
Incl. 16, 17 		544003104
16 VALVE ASSY 506317731
17 SCREW IHSCT 503210619
18 HOSE CLAMP 506095602
19 NIPPLE 506295701
20 O-KROUŽEK 503263021
21 FILTER 506298801
22 PROTECTIVE SPRING 506352701
23 HOSE Incl. 16, 25, 26
Incl. 16, 25, 26 		506095804
24 HOSE CLAMP 506095603
25 SCREW IHSCT 503210522
26 CLIP 502412201
27 DISC 506383301
28 NIPPLE 506382901
29 SCREW CRPANT 729528971
30 SCREW IHSCM 725533156
31 SCREW IHSCM
Incl. 28 - 30, 32 - 34 		725529555
32 SPACING TUBE 506334902
33 O-KROUŽEK 740420500
34 DRAW SPRING 506339501
